MODEL: R2K-1
R2K-1 SPECIFICATIONS
ES-6701 Rev.5 Page 2/3
https://www.m-system.co.jp/

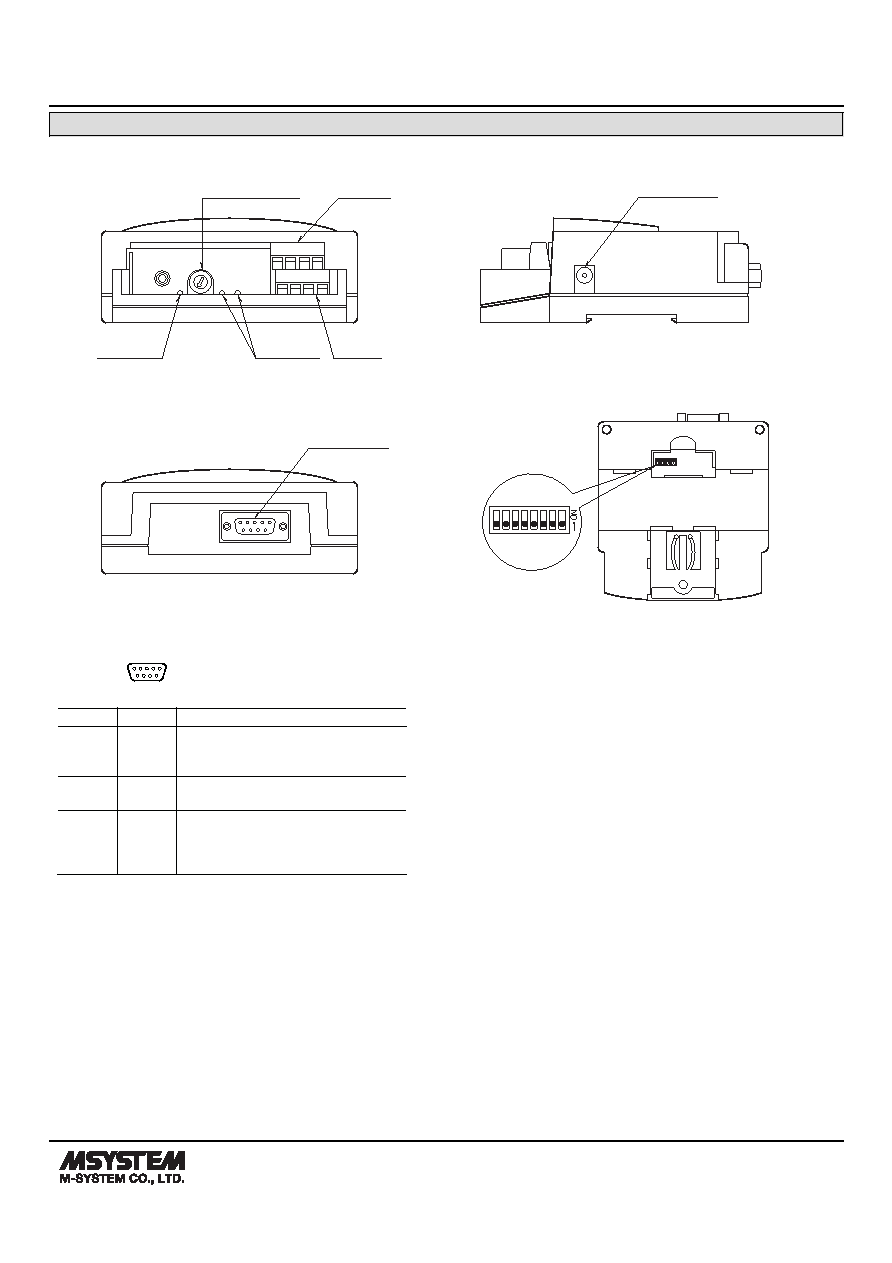

EXTERNAL VIEW
AC Adaptor Jack
RS-485
Connector
Baud Rate Selector
DC Power
Terminals
ERROR
Indicator LED
RUN
Indicator LED
■ FRONT VIEW
RS-232-C
9-pin Connector
Data, Parity, Stop Bit
DIP SW
■ REAR VIEW
■ BOTTOM VIEW
RS-232-C
■ SIDE VIEW
B RATE
CONFIG
RUN
ERR.1 ERR.2
T4
T3
T2
T1
+ –
1 2 3 4 5 6 7 8
ABBR.
PIN NO.
EXPLANATION OF FUNCTION
BA (SD)
2
Transmitted Data
BB (RD)
3
Received Data
AB (SG)
5
Signal Common
CB (CS)
7
Clear to Send
CA (RS)
8
Request to Send
1
Not Used.
4
DO NOT connect. Connecting may
6
cause malfunctions.
9
1
5
6
9
■ RS-232-C INTERFACE
