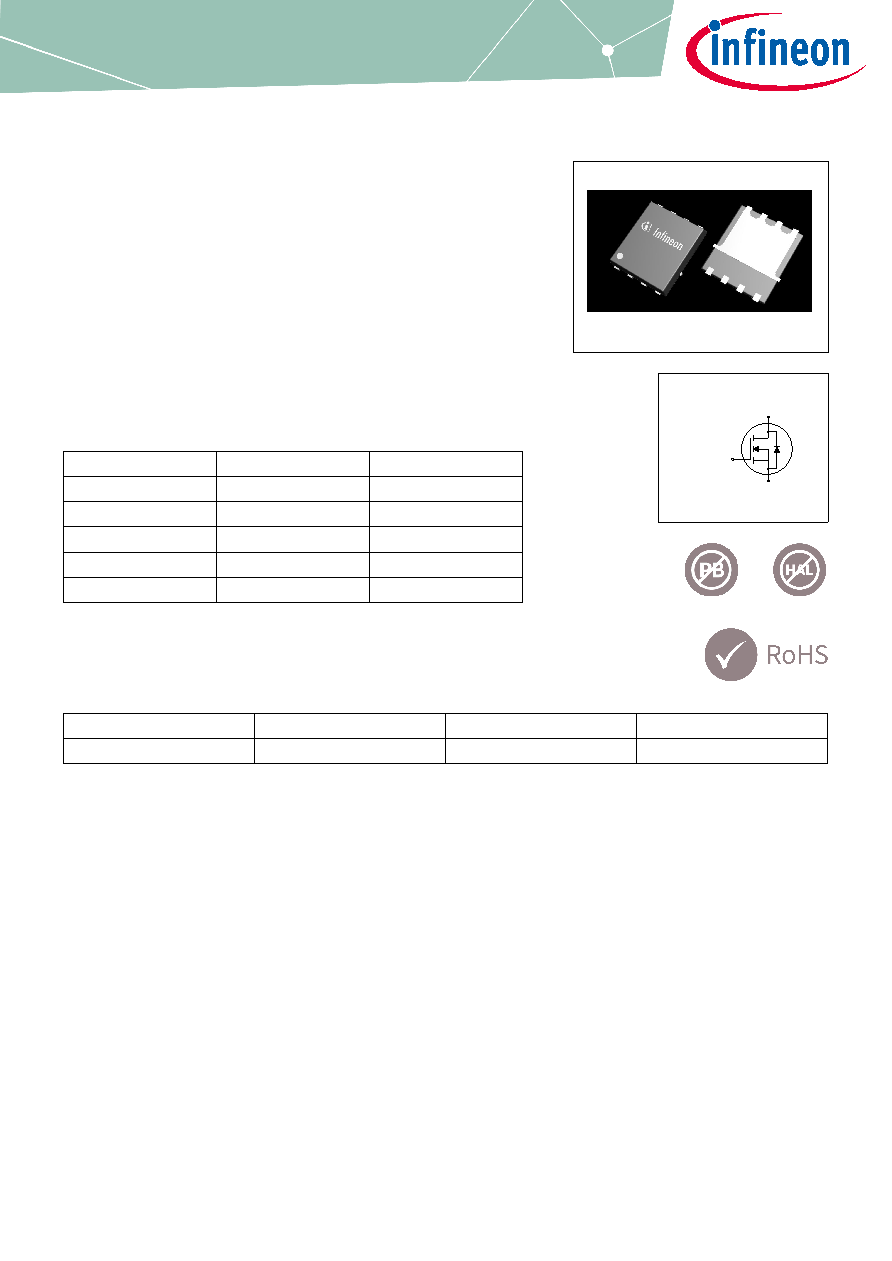

ISC0806NLS

Rev.2.1,2021-04-01

Final Data Sheet

Pin 1

2

3

4

3

2

1

5

6

7

8

5

6

7

8

PG-TDSON-8

Drain

Pin 5-8

Gate

Pin 4

Source

Pin 1-3

*1

*1: Internal body diode

MOSFET

OptiMOSTM5Power-Transistor,100V

Features

•Idealforhigh-frequencyswitching

•Optimizedforcharger

•100%avalanchetested

•Superiorthermalresistance

•N-channel,logiclevel

•Pb-freeleadplating;RoHScompliant

•Halogen-freeaccordingtoIEC61249-2-21

Productvalidation

QualifiedaccordingtoJEDECStandard

Table1KeyPerformanceParameters

Parameter

Value

Unit

VDS

100

V

RDS(on),max

5.4

m

Ω

ID

97

A

Qoss

50

nC

QG(0V..4.5V)

20

nC

Type/OrderingCode

Package

Marking

RelatedLinks

ISC0806NLS

PG-TDSON-8

0806NL

-

Codice articolo simile - ISC0806NLS
