MODEL: VOS2T

VOS2T SPECIFICATIONS

ES-4767 Rev.8 Page 3/4

http://www.m-system.co.jp/

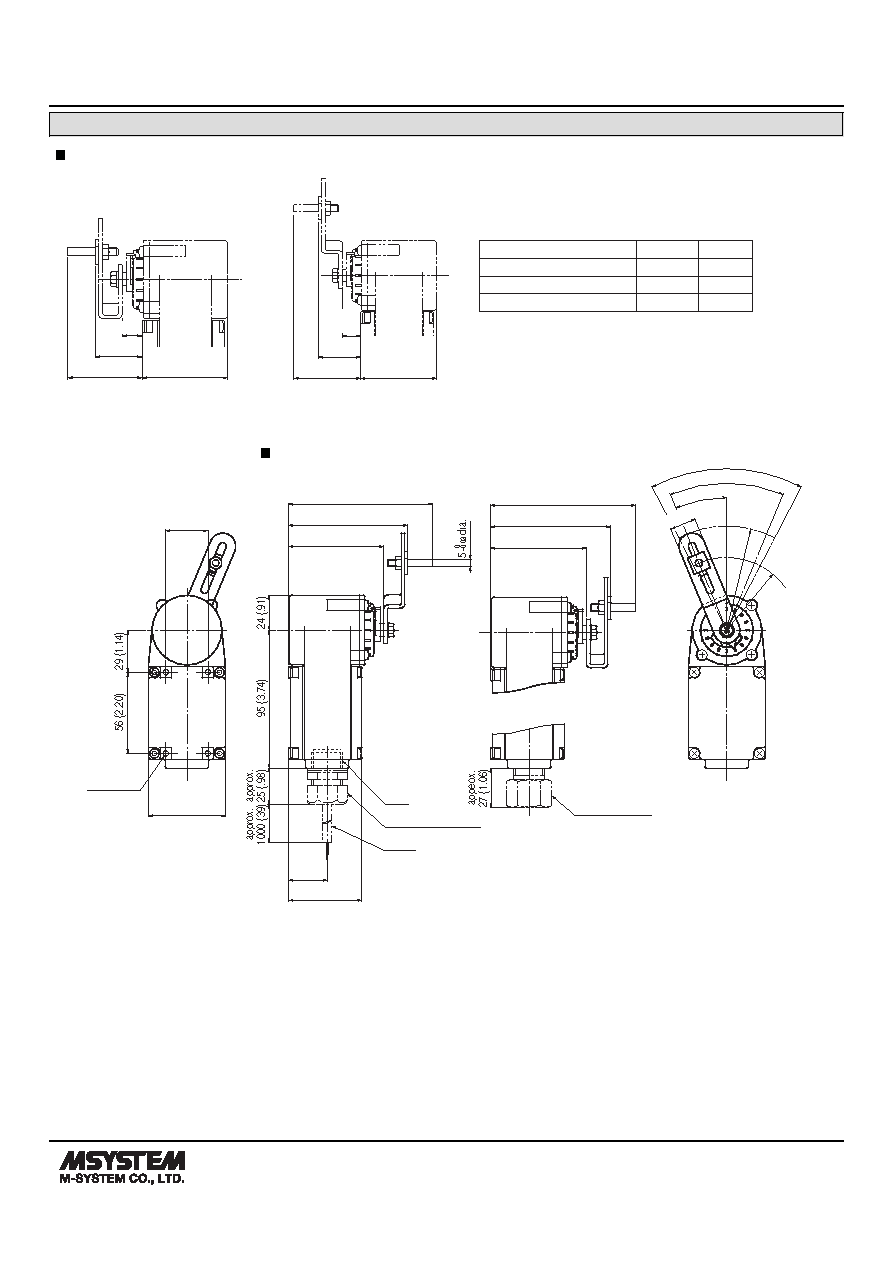

EXTERNAL DIMENSIONS unit: mm (inch)

29 (1.14)

approx.46 (1.81)

65.5 (2.58)

82 (3.23)

approx. 99 (3.90)

29 (1.14)

53 (2.09)

4–M4 TAP

5 (.20) deep

52.5 (2.07)

• Stroke 30 – 100, or 25 – 60 mm

26.5

(1.04)

50.5 (1.99)

1/2" NPT FITTING *3

n LEVER ATTACHED TO THE UPPER SIDE

*1 : Provided when cable connector or cable connected

type is selected.

*2 : Provided when cable connected type is selected.

*3 : Provided when NPT fitting is selected.

CABLE *2

CABLE CONNECTOR *1

G 1/2

22.5

18 (.71)

12.5

(.49)

Stroke 10 – 30 mm (.39" – 1.18")

LEVER SIZE mm (inch)

R12 – R45

54 (2.13)

Stroke 30 – 100 mm (1.18" – 3.94") R38 – R132

141 (5.55)

Stroke 25 – 60 mm (.98" – 2.36")

R30 – R82.5 91.5 (3.60)

LEVER TYPE

• Stroke 10 – 30 mm

• Stroke 30 – 100, or 25 – 60 mm

n LEVER ATTACHED TO THE LOWER SIDE

29 (1.14)

approx.46 (1.81)

52.5 (2.07)

12.5 (.49)

65.5 (2.58)

82 (3.23)

approx. 99 (3.90)
