Datasheet

VDP Industrial Series

ANT-2/5-VDP-2000-ccc

Product Dimensions

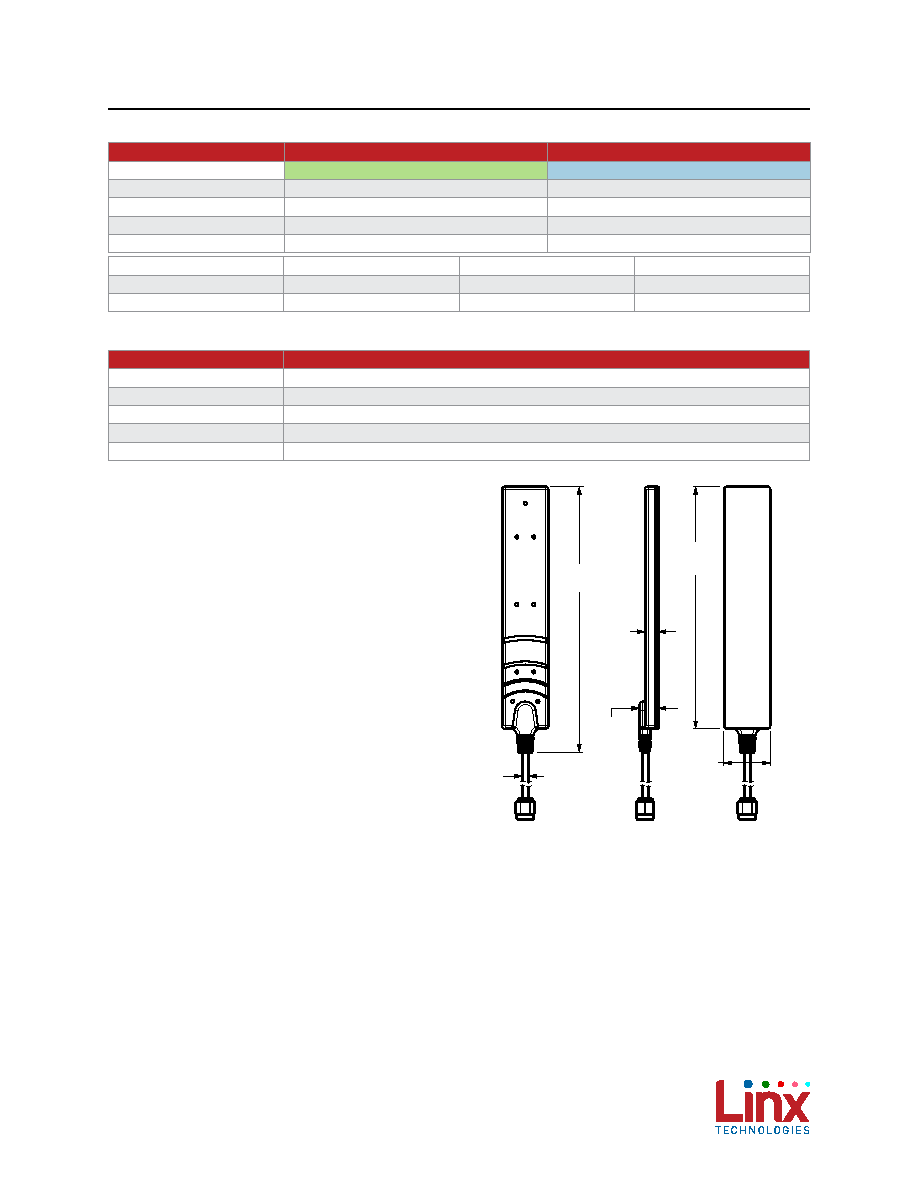

Figure 1 provides dimensions of the ANT-2/5-

VDP-2000. The antenna comes with 2 m (78.74 in)

of RG-174/U low-loss coaxial cable terminated by an

SMA plug (male pin) or RP-SMA plug (female socket)

connector.

Antenna Mounting

The remote adhesive-mount VDP industrial series

antenna mounts permanently to non-conductive

surfaces using the integrated adhesive patch. The

mounting surface should be clean, dry and free of oil

residue for ideal adhesion.

Packaging Information

The VDP industrial series antennas are packaged in

bags of 50. Distribution channels may offer alternative

packaging options.

126.0 mm

(4.96 in)

22.0 mm

(0.87 in)

6.2 mm

(0.24 in)

8.7 mm

(0.34 in)

Ø2.8 mm

(0.11 in)

115.0 mm

(4.53 in)

Figure 1. ANT-2/5-VDP-2000 Antenna Dimensions

Table 1. Electrical Specifications

ANT-2/5-VDP-2000

2.4 GHz

5 GHz

Frequency Range

2.4 GHz to 2.485 GHz

5.15 GHz to 5.85 GHz

VSWR (max)

1.5

1.4

Peak Gain (dBi)

2.4

-0.6

Average Gain (dBi)

-6.6

-10.6

Efficiency (%)

Polarization

Linear

Radiation

Omnidirectional

Impedance

Max Power

10 W

Wavelength

1/2-wave

Electrical Type

Dipole

Table 2. Mechanical Specifications

ANT-2/5-VDP-2000

Dual Band WiFi

Connection

SMA plug (male pin) or RP-SMA plug (female socket)

Cable

2.0 m (78.74 in) of RG-174/U low-loss coaxial cable

Operating Temp. Range

-40 °C to +85 °C

Weight

47.0 g (1.66 oz)

Dimensions

115.0 mm x 22.0 mm x 6.2 mm (4.53 in x 0.87 in x 0.24 in)
