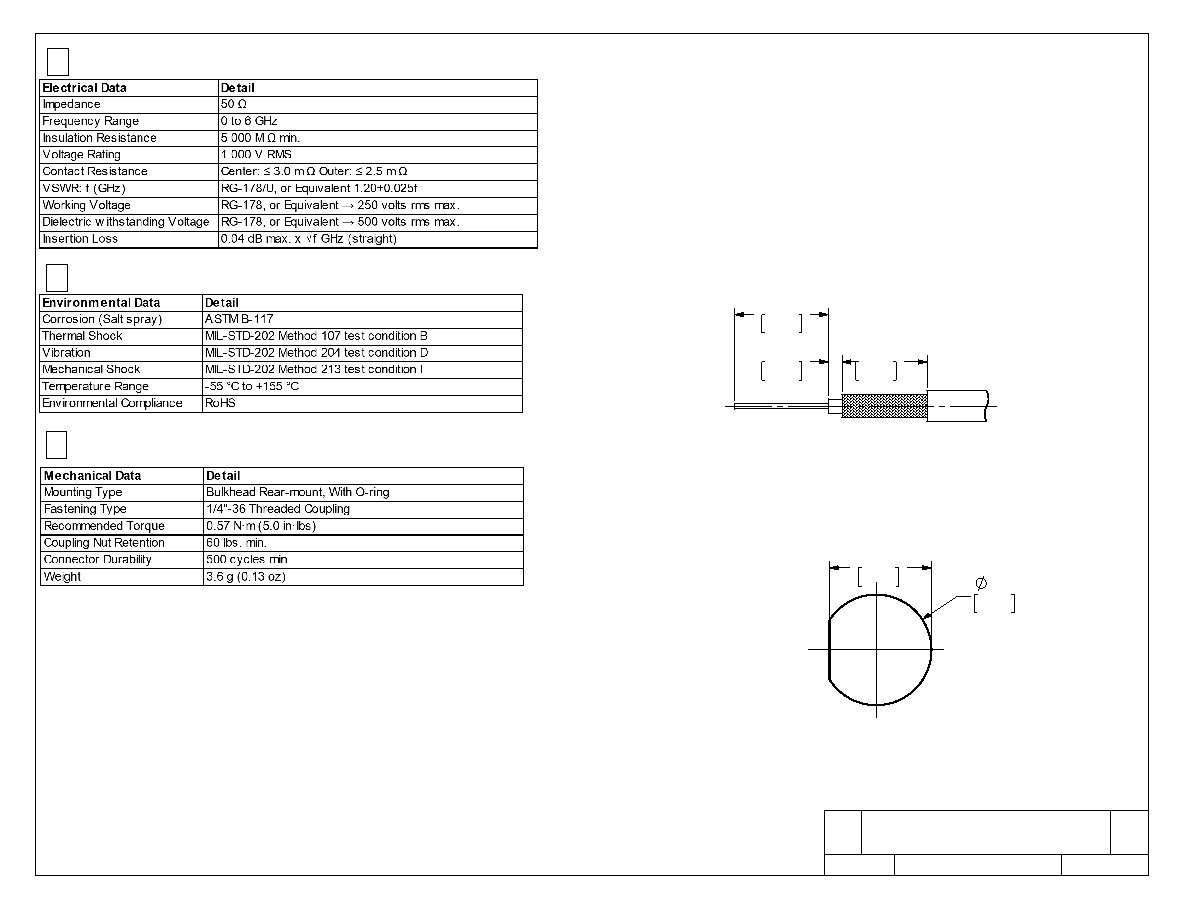

2 / 2 page

5.50

0.217

0.80

0.031

5.00

0.197

RECOMMENDED CABLE STRIPPING DIMENSIONS

CAN ALSO BE USED WITH:

RG-196

RG-178

CABLE

6.50

0.256

6.00

0.236

RECOMMENDED MOUNTING HOLE

TABLE I

TABLE II

TABLE III

ASSEMBLY INSTRUCTIONS

Strip the cable.

Slide the coax into the support until the outside insulation

bottoms out against the inside shoulder of the support.

Solder the support onto the braid.

Plaec the spacer onto the center-conductor.

Solder or crimp the socket onto the center conductor.

Insert the socket, center-conductor, spacer and support into te

body until the top of the socket is even with the white

insulation in the body.

Crimp the tail of the body onto the support with a 0.093" hex

crimp tool.

SHEET 2 OF 2

LDCFDAL_A

SCALE: 4:1

SIZE DWG. NO.

REV

DO NOT SCALE DRAWING

SEE SHEET 1 FOR REVISIONS

CONSMA014-R178-*
