Data Sheet
ADP1765
Rev. A | Page 19 of 20
PCB LAYOUT CONSIDERATIONS
Place the input capacitor as close as possible to the VIN and
GND pins. Place the output capacitor as close as possible to the
VOUT and GND pins. Place the soft start capacitor (CSS) as
close as possible to the SS pin. Place the reference capacitor
(CREF) and regulator capacitor (CREG) as close as possible to the
REFCAP pin and VREG pin, respectively. Connect the load as
close as possible to the VOUT and SENSE pins.

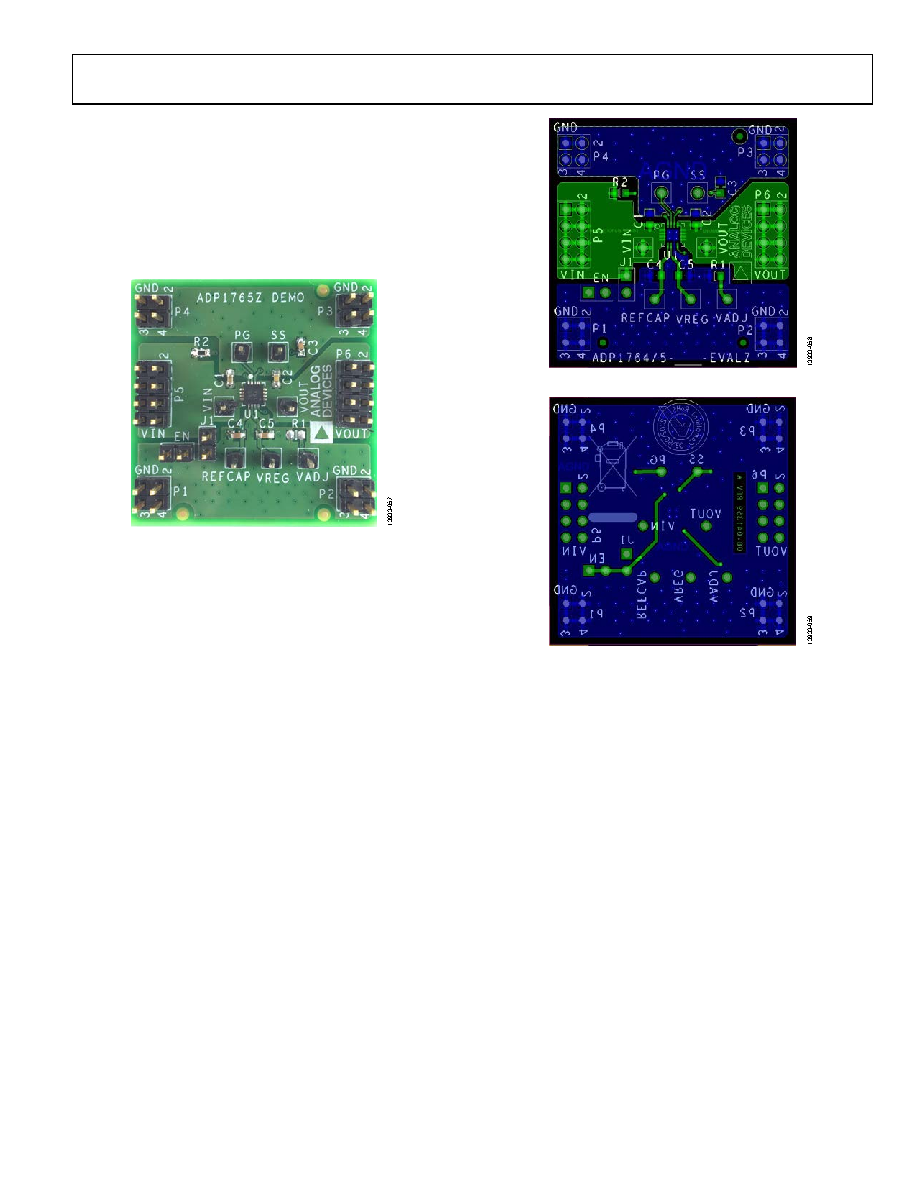

Figure 57. Evaluation Board
Figure 58. Typical Board Layout, Top Side
Figure 59. Typical Board Layout, Bottom Side
