ADPA7009-2ACEZ-R7 Scheda tecnica(PDF) 12 Page - Analog Devices

Il numero della parte	ADPA7009-2ACEZ-R7

Spiegazioni elettronici	20 GHz to 54 GHz, GaAs, pHEMT, MMIC, 29 dBm (0.5 W) Power Amplifier

PDF	24 Pages

Scroll/Zoom	100%

Produttore elettronici	AD [Analog Devices]

Homepage	http://www.analog.com

Logo

12 / 24 page

Data Sheet

ADPA7009-2

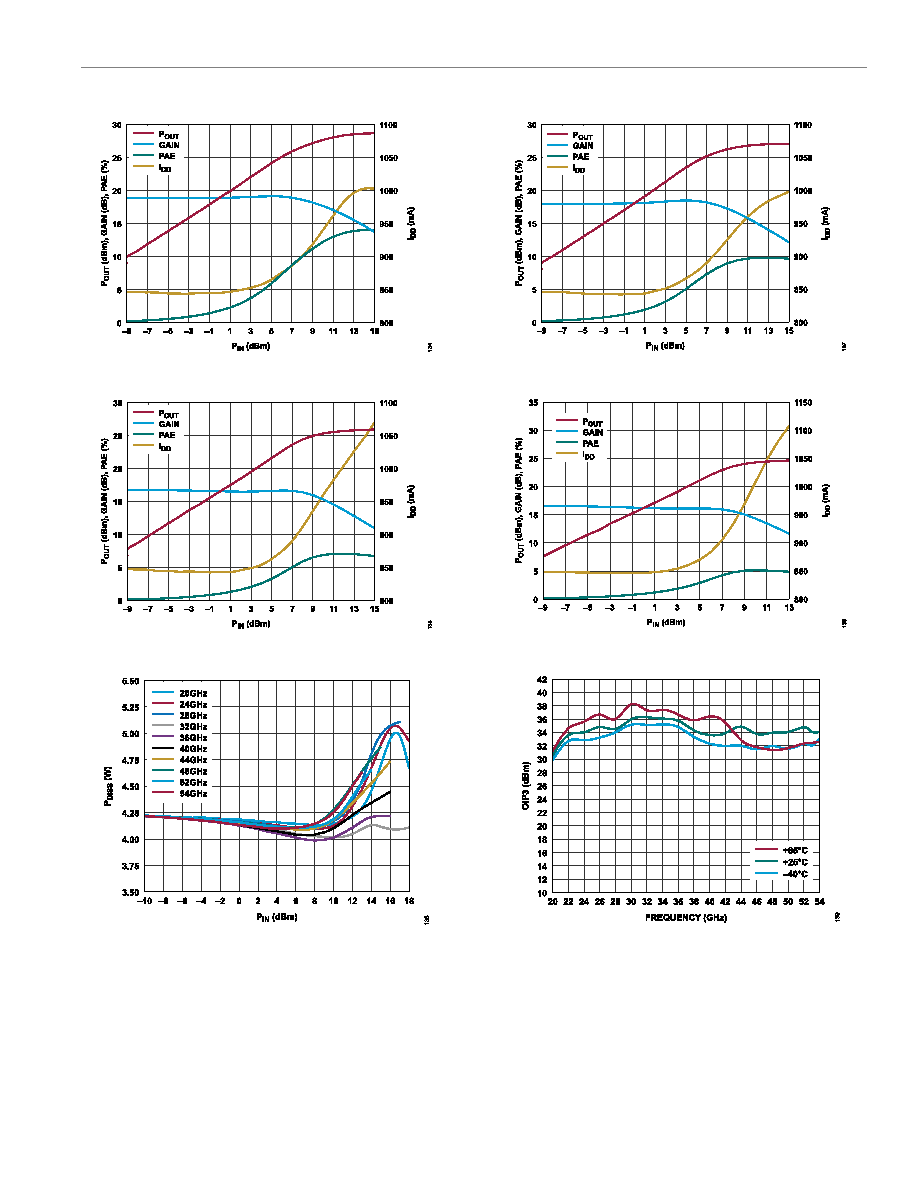

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 12 of 24

Figure 34. POUT, Gain, PAE, and IDD vs. PIN, 36 GHz, VDD = 5 V, IDQ = 850 mA

Figure 35. POUT, Gain, PAE, and IDD vs. PIN, 44 GHz, VDD = 5 V, IDQ = 850 mA

Figure 36. PDISS vs. PIN for Various Frequencies, TCASE = 85°C, VDD = 5 V, IDQ

= 850 mA

Figure 37. POUT, Gain, PAE, and IDD vs. PIN, 40 GHz, VDD = 5 V, IDQ = 850 mA

Figure 38. POUT, Gain, PAE, and IDD vs. PIN, 50 GHz, VDD = 5 V, IDQ = 850 mA

Figure 39. OIP3 vs. Frequency for Various Temperatures,

POUT per Tone = 14 dBm, VDD = 5 V, IDQ = 850 mA
