27 / 44 page

Page 26

ams Datasheet

Document Feedback

[v1-06] 2018-Jun-20

AS5600 − Register Description

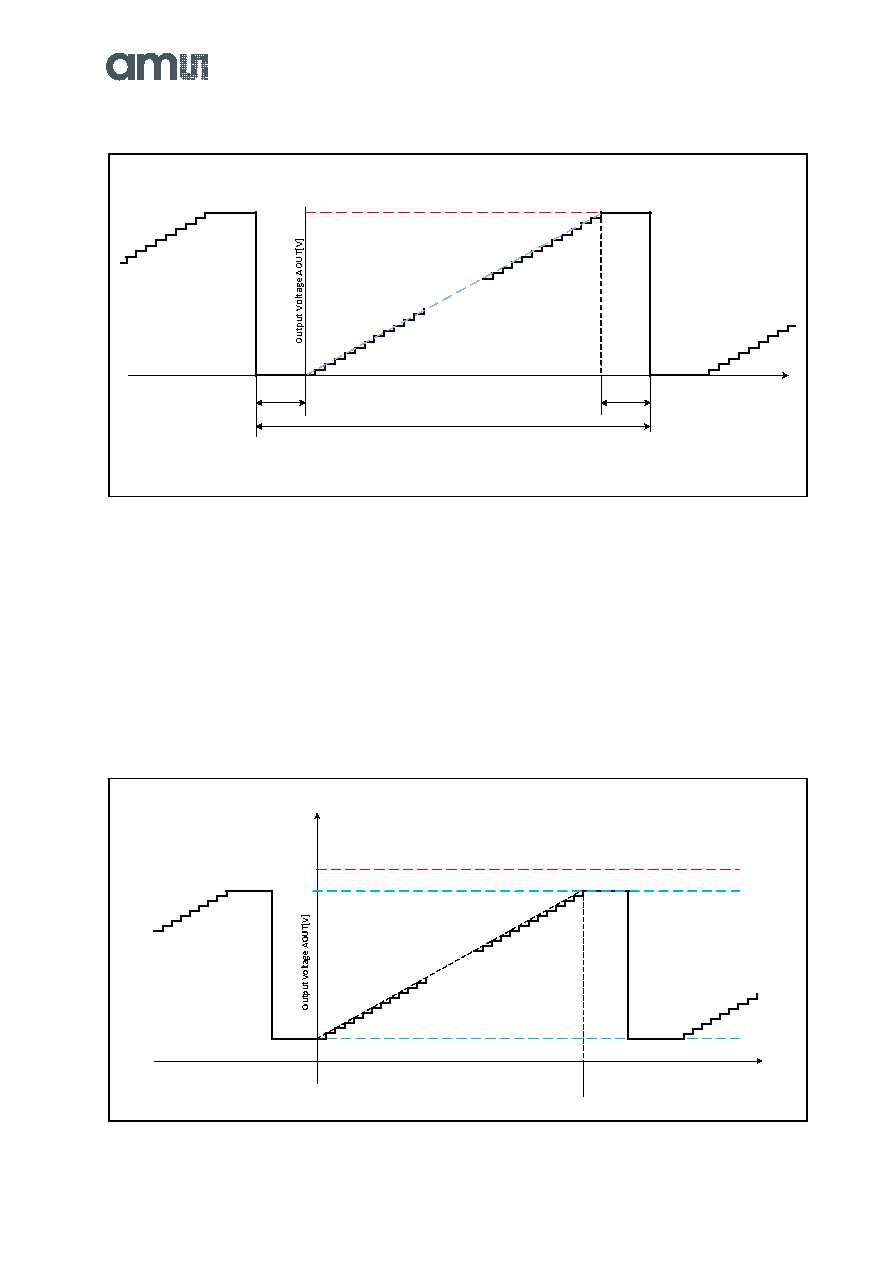

Figure 28:

Output Characteristic Over a Range Smaller Than 360°

If the maximum angular range is smaller than 360 degrees, the

DAC resolution is automatically reduced. If

max is the maximum

angle, the number of steps N of the output signal OUT is:

N = (

max/360) × 4096

The AS5600 also allows selecting the output dynamic

characteristics of the OUT signal with the OUTS bits in the CONF

voltage range (0V to VDD), but a reduced range from 10% to

90% between GND and VDD may be programmed (OUTS = 01).

Figure 29:

Output Characteristics with Reduced Output Range (10%-90%)

VDD

Angle (DEG)

0 DEG

θMAX

360 DEG

VDD

Angle (DEG)

0 DEG

θMAX

90% VDD

10% VDD
