FT800 Embedded Video Engine Datasheet

Version 1.4

Document No.: BRT_000039 Clearance No.: BRT#001

8 Package Parameters

The FT800 is available in VQFN-48 package. The solder reflow profile for all packages is described in

following sections.

8.1 VQFN-48 Package Dimensions

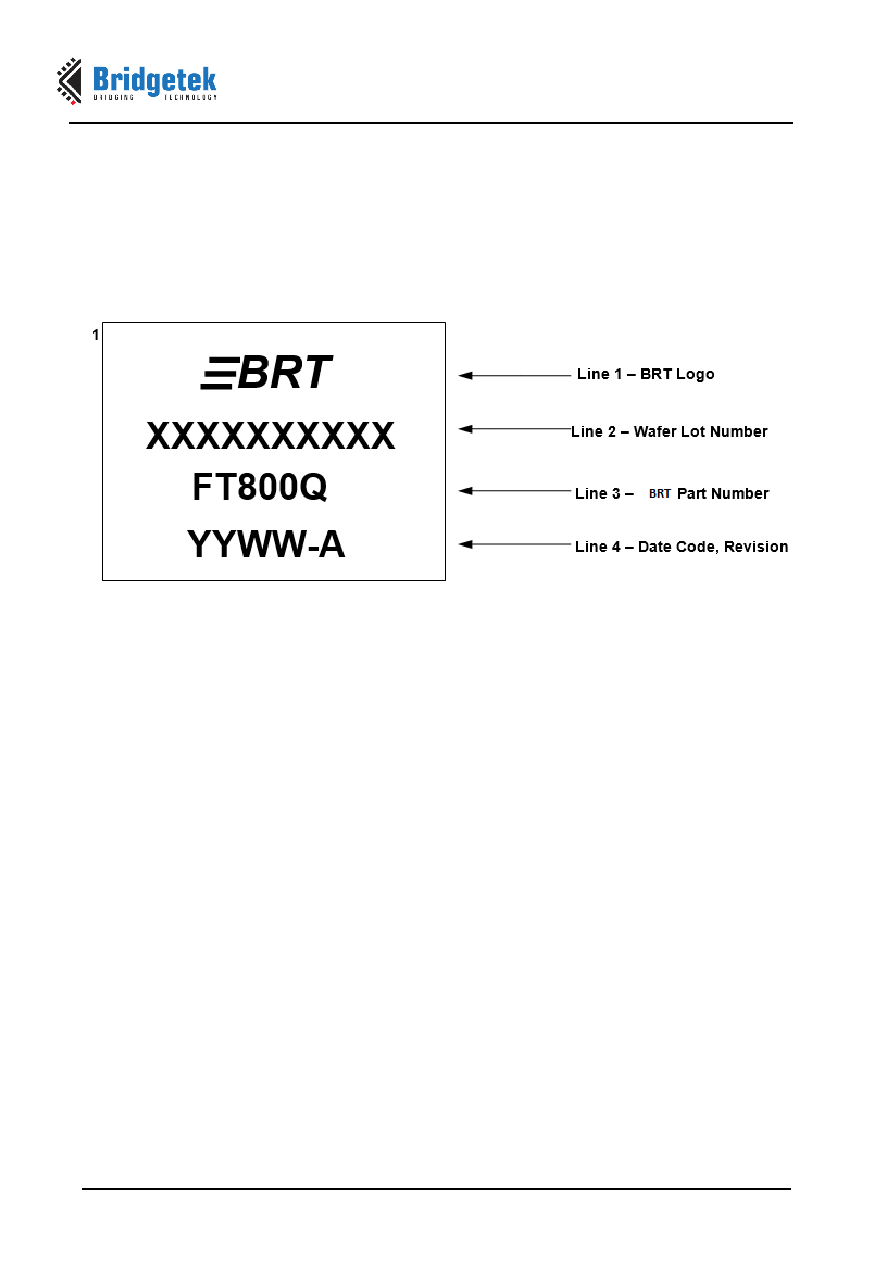

8.1.1 Top Side

Notes:

1. YYWW = Date Code, where YY is year and WW is week number

2. Pre-date code 1727 company logo was FTDI

3. Marking alignment should be centre justified

4. Laser Marking should be used

8.1.2 Bottom Side

No markings should be placed on the bottom side.
