LTC3306
13
Rev. 0
For more information www.analog.com

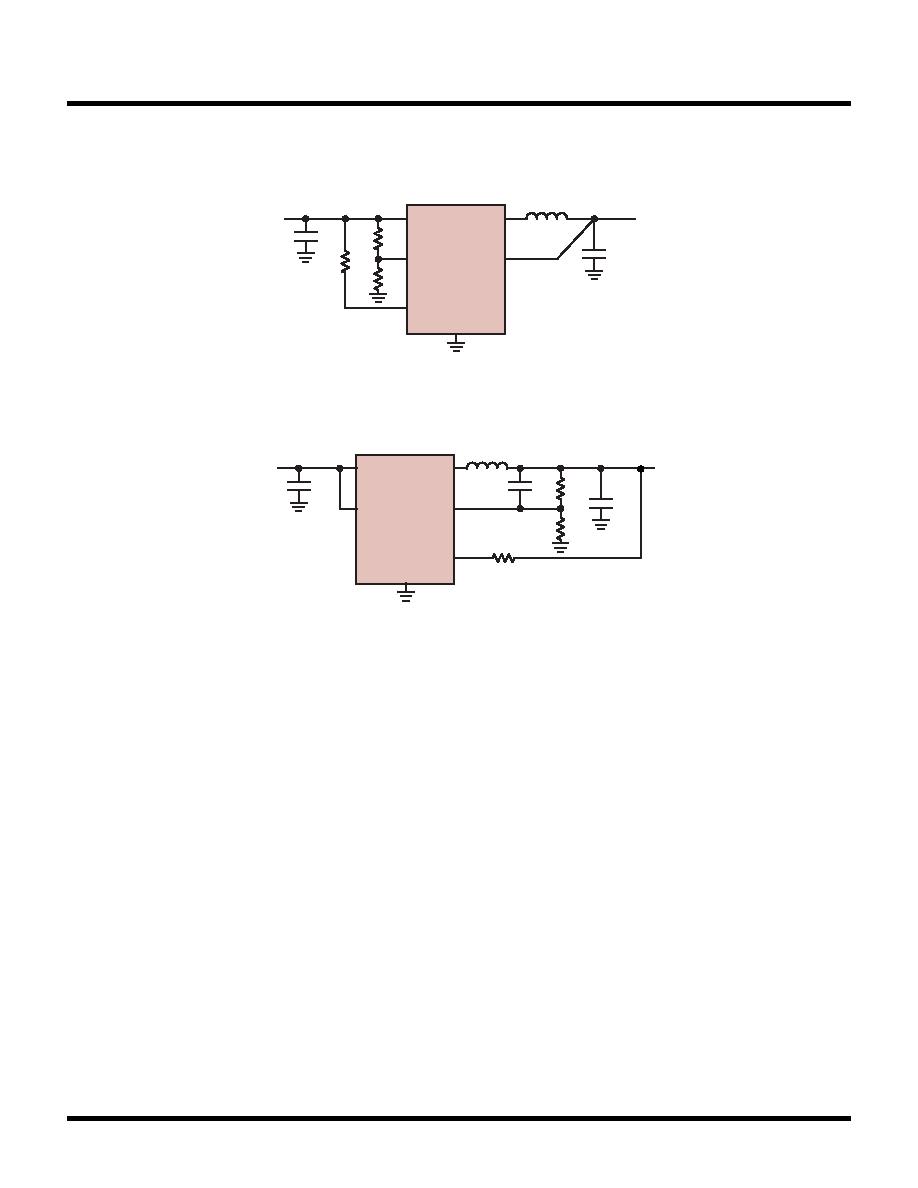

TYPICAL APPLICATIONS
VIN UVLO at 3.0V, 2MHz, 0.5V, 1.75A, Forced Continuous Mode Step-Down Converter
2.25V to 5.5V, 2MHz, Resistor-Programmed 1V, 1.75A, Burst Mode Step-Down Converter
590k
100k
100k
10µF
L
470nH
47µF
VIN
3V TO
5V
VIN
EN
PGOOD
GND
SW
FB
LTC3306C
VOUT
0.5V
1.75A
L = DFE18SANR47MG0L
3306 TA03
fOSC = 2MHz
10µF
L
1µH
22µF
20k
20k
33pF
VIN
2.25V TO
5.5V
VIN
EN
GND
SW
FB
LTC3306A
VOUT
1V
1.75A
fOSC = 2MHz
L = DFE18SAN1R0MG0L
3306 TA04
100k
PGOOD
