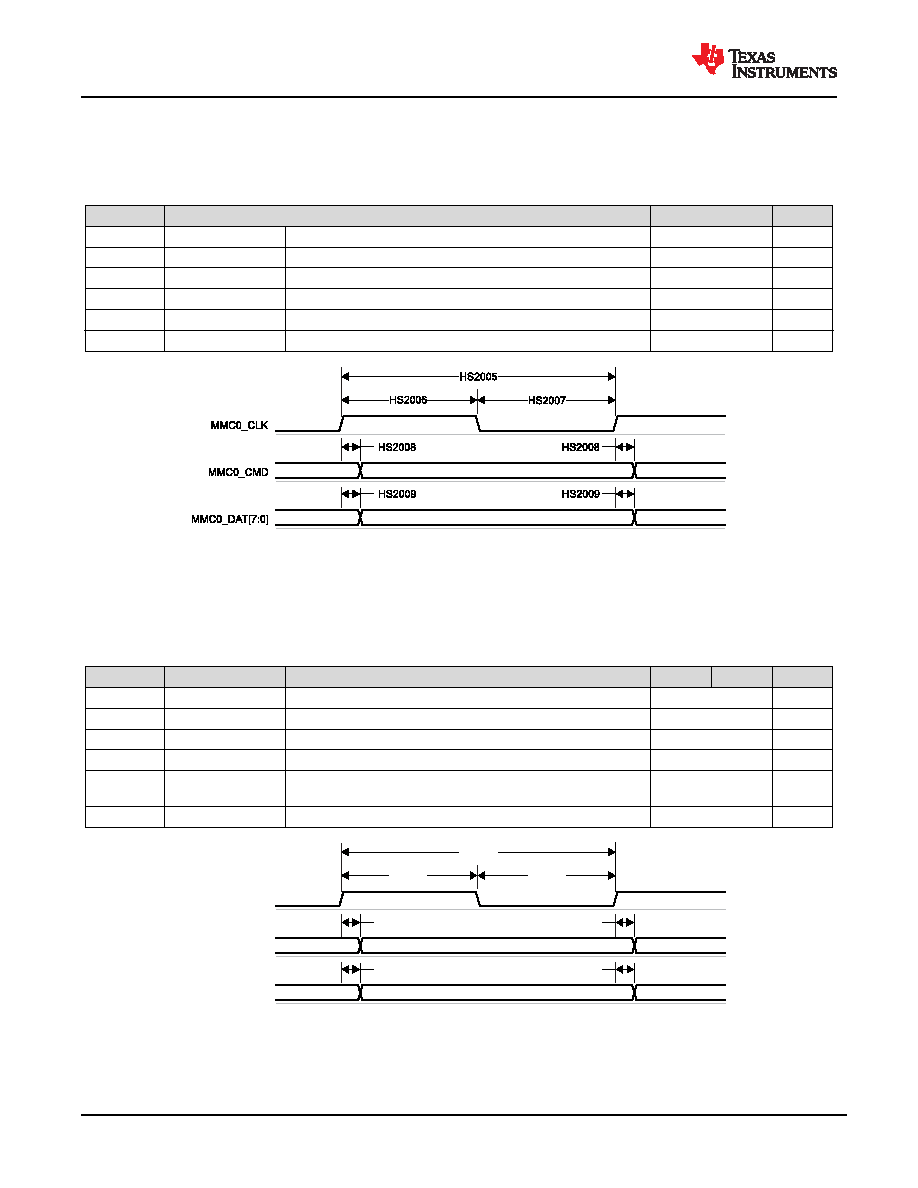

208 / 251 page  7.10.5.17.1.4 HS200 Mode Table 7-65 and Figure 7-83 present switching characteristics for MMC0 – HS200 Mode. Table 7-65. MMC0 Switching Characteristics – HS200 Mode see Figure 7-83 NO. PARAMETER MIN MAX UNIT fop(clk) Operating frequency, MMC0_CLK 200 MHz HS2005 tc(clk) Cycle time, MMC0_CLK 5 ns HS2006 tw(clkH) Pulse duration, MMC0_CLK high 2.08 ns HS2007 tw(clkL) Pulse duration, MMC0_CLK low 2.08 ns HS2008 td(clkL-cmdV) Delay time, MMC0_CLK rising edge to MMC0_CMD transition 0.99 3.16 ns HS2009 td(clkL-dV) Delay time, MMC0_CLK rising edge to MMC0_DAT[7:0] transition 0.99 3.16 ns Figure 7-83. MMC0 – HS200 Mode – Transmit Mode 7.10.5.17.1.5 HS400 Mode Table 7-66 and Figure 7-84 present switching characteristics for MMC0 – HS400 Mode. Table 7-66. MMC0 Switching Characteristics – HS400 Mode see Figure 7-84 NO. PARAMETER DESCRIPTION MIN MAX UNIT fop(clk) Operating frequency, MMC0_CLK 200 MHz HS4005 tc(clk) Cycle time, MMC0_CLK 5 ns HS4006 tw(clkH) Pulse duration, MMC0_CLK high 2.08 ns HS4007 tw(clkL) Pulse duration, MMC0_CLK low 2.08 ns HS4008 td(clkH-cmdV) Delay time, MMC0_CLK rising clock edge to MMC0_CMD transition 0.99 3.28 ns HS4009 td(clkV-dV) Delay time, MMC0_CLK transition to MMC0_DAT[7:0] transition 0.59 1.84 ns MMC0_CLK MMC CMD 0_ MMC DAT 0_ [7:0] H 4005 S H 4007 S H 4006 S H 400 S 8 H 4009 S H 400 S 8 H 400 S 9 Figure 7-84. eMMC in – HS400 Mode – Transmitter Mode TDA4VE-Q1, TDA4AL-Q1, TDA4VL-Q1 SPRSP62 – DECEMBER 2022 www.ti.com 208 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated Product Folder Links: TDA4VE-Q1 TDA4AL-Q1 TDA4VL-Q1 |
|
