CUI DEVICES | SERIES: AMT20 | DESCRIPTION: MODULAR ABSOLUTE ENCODER

date 08/05/2022 | page 3 of 10

cuidevices.com

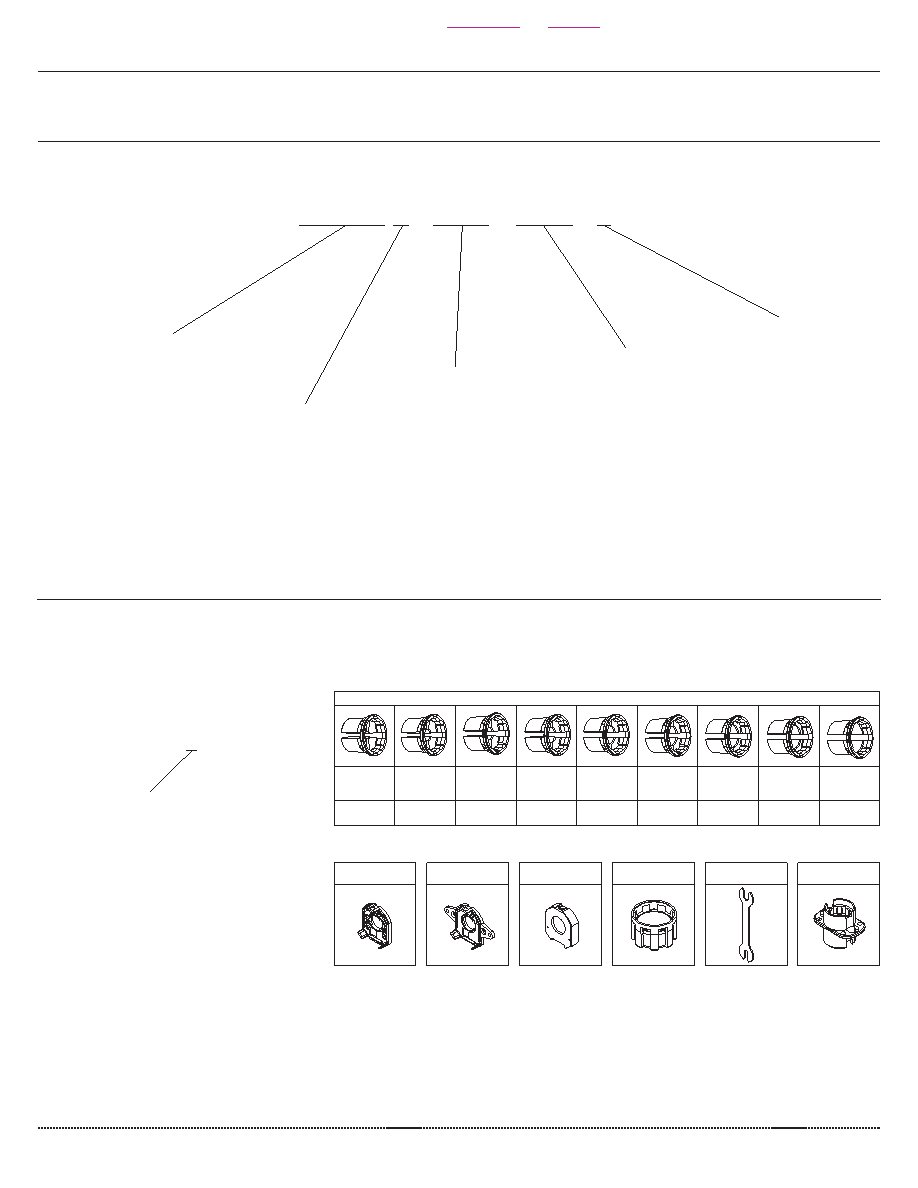

PART NUMBER KEY

The AMT203 is designed for 12 bit binary (4,096) operation. For customers who may use the optional quadrature output, one of the resolutions below may be selected as the

default quadrature output.

AMT203 X - XXXX - XXXX - X

Quadrature

Resolution (PPR):

0096

0500

0192

0512

0200

0768

0250

0800

0384

1000

0400

1024

Sleeve Bore Diameter:

2000 = 2 mm

3000 = 3 mm

3175 = 3.175 mm (1/8”)

4000 = 4 mm

4760 = 4.76 mm (3/16”)

5000 = 5 mm

6000 = 6 mm

6350 = 6.35 mm (1/4”)

8000 = 8 mm

Base Number

AMT20-V KITS

In order to provide maximum flexibility for our customers, the AMT20 series is provided in kit form standard. This allows the user to implement the encoder into a range of

applications using one sku#, reducing engineering and inventory costs.

SLEEVES

2mm3mm

1/8 inch

(3.175mm)

4mm

3/16 inch

(4.76mm)

5mm6mm

1/4 inch

(6.35mm)

8mm

Light Sky

Blue

Orange

Purple

Gray

YellowGreen

RedSnowBlue

BASE

WIDE

BASE

TOP

COVER

SHAFT

ADAPTER

TOOL A

TOOL C

BASE

WIDE

BASE

TOP

COVER

SHAFT

ADAPTER

TOOL A

TOOL C

Connector Options:

"blank" = standard connector

S = locking connector

Mounting Base:

S = Standard

W= Wide

Note:

1. Conformal coating available upon request

AMT203X-V

Connector Options:

"blank" = standard connector

S = locking connector

ORDERING GUIDE

Additional Resources: Product Page | 3D Model
