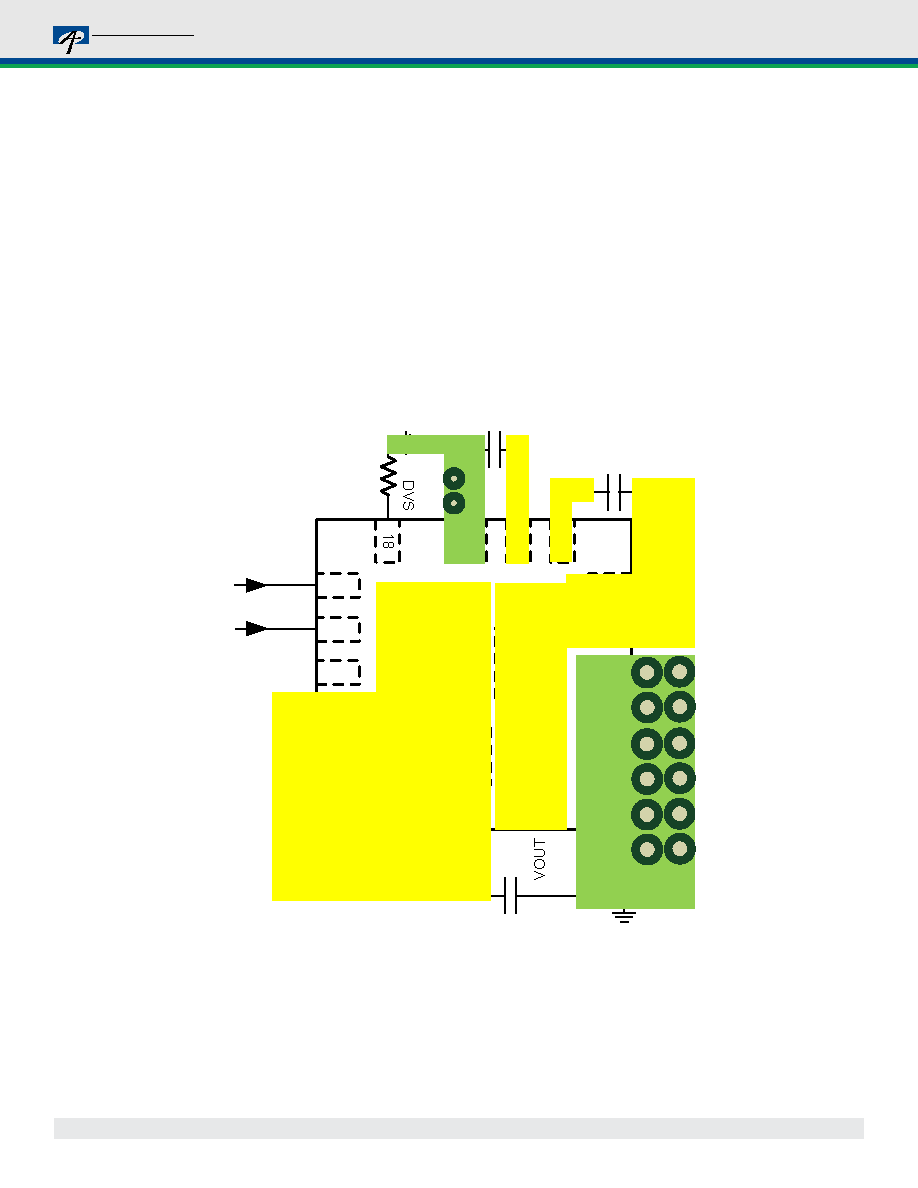

Layout Considerations
Several layout tips are listed below for the best electric and
thermal performance.
1. The VIN pins and pad are connected to internal high
side switch drain. They are also low resistance thermal
conduction path. Connected a large copper plane to VIN
pins to help thermal dissipation.
2. Input capacitors should be connected to the VIN pins
and the PGND pins as close as possible to reduce the
switching spikes.
3. The VOUT pins and pad are connected to internal low side
switch drain. They are low resistance thermal conduction
path and most noisy switching node. Connected a large
copper plane to VOUT pins to help thermal dissipation.
4. Decoupling capacitor CVCC should be connected to VCC
and AGND as close as possible.
5. Bootstrap capacitor CB should be connected to VB and
VOUT as close as possible.
6. A ground plane is preferred. PGND and AGND must be
connected to the ground plane through vias.
7. Keep sensitive signal traces such as feedback trace and
digital signals far away from the VOUT pins.
