500mV to 5.5V Input, Ultrasonic
Boost Converter with Short-Circuit
Protection and True Shutdown
MAX18002
www.analog.com
Analog Devices | 16
GND
OUT
EN
0402
0603
LEGEND
VIAS
0805
RSEL
LX
IN

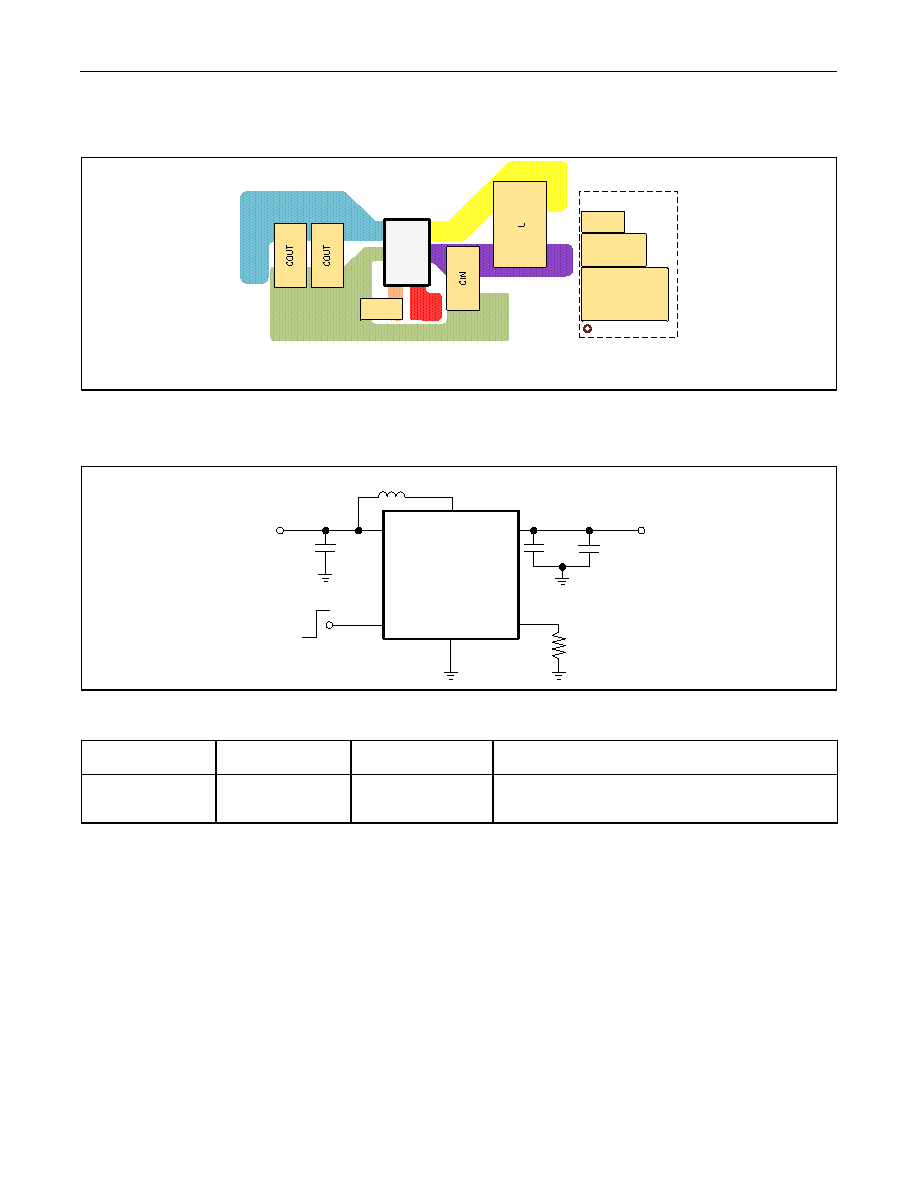

Figure 5. PCB Layout Recommendation for WLP Package
Typical Application Diagram
RSEL
OUT
RSEL
IN
LX
EN
GND
0.5V TO 5.5V
DC SOURCE
VOUT
2.5V TO 5.2V
MAX18002
LOW (OFF)
HIGH (ON)
L
CIN
10V, X5R,
0603, 22µF
COUT
10V, X5R,
0603, 2x22µF
Ordering Information
PART NUMBER
TEMPERATURE
RANGE
PIN-PACKAGE
FEATURES
MAX18002AWT+T
-40°C to +125°C
6-Bump WLP,
1.05mm x 1.55mm
3.6A IPK, Ultrasonic Mode (> 20kHz), > 0% Duty Cycle,
True Shutdown/Active Discharge
+Denotes lead(Pb)-free/RoHS packaging.
T = Tape and reel.
