AC Timing Specifications
101
03
QMU to Q-5 (External
Mode) Timing
Specifications
The QMU to Q-5 (External Mode) timing specifications are shown in Figure 27 and
describded in Table 59.

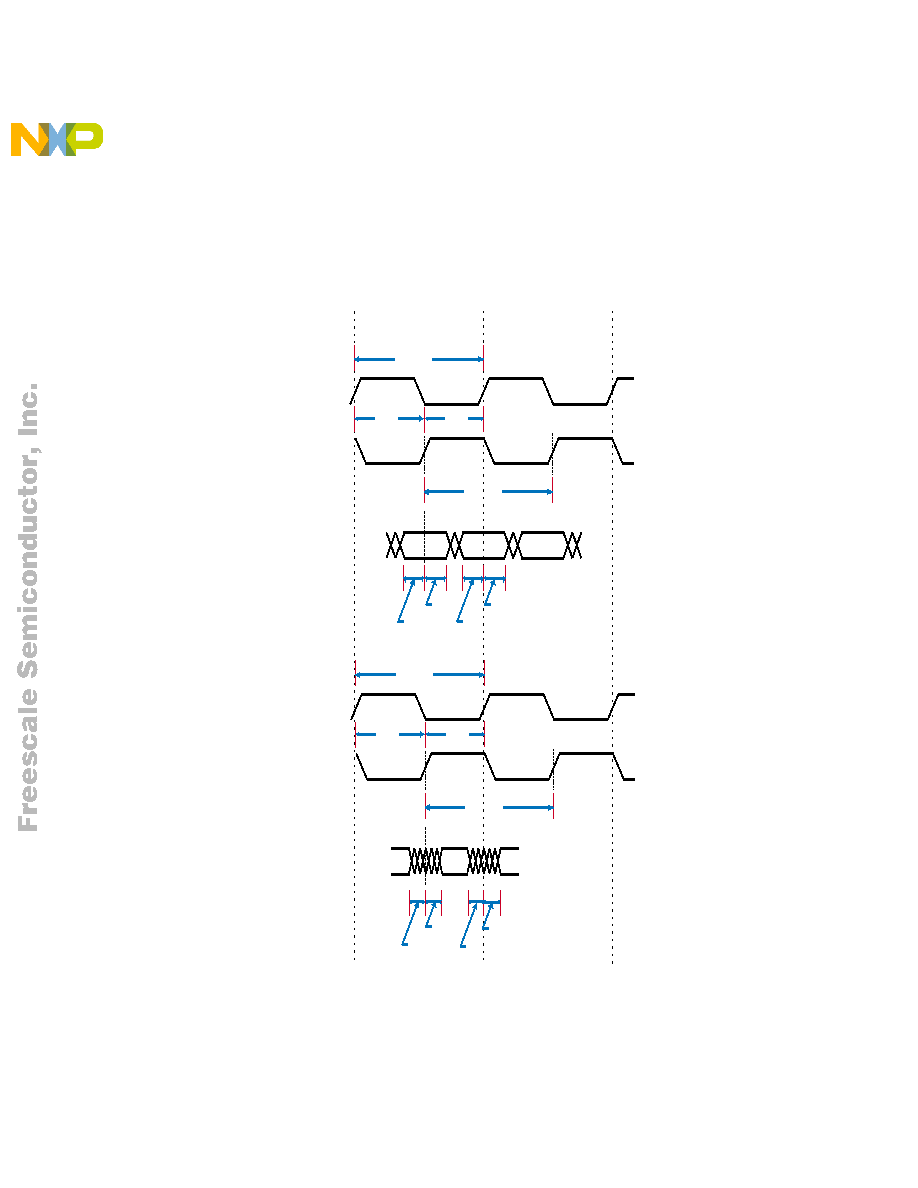

Figure 27 QMU to Q-5 (External Mode) Timing Diagram
QACLKI
Cycle 1
Cycle 2
Tqes
QBCLKI
DQDATA
Tqeh
Tqeh
QACLKO
QBCLKO
NQDATA
Tqeomin
Tqeomax
Tqes
Tqep
Tqec
Tqep
Tqec
Tqep
Tqec
Tqep
Tqec
Tqeomin
Tqeomax
