ADPA1122AEHZ-R7 Scheda tecnica(PDF) 8 Page - Analog Devices

Il numero della parte ADPA1122AEHZ-R7
Spiegazioni elettronici  43 dBm, 20 W, GaN Power Amplifier, 8.2 GHz to 11.8 GHz
PDF  17 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Produttore elettronici  AD [Analog Devices]
Homepage  http://www.analog.com
Logo AD - Analog Devices

ADPA1122AEHZ-R7 Scheda tecnica(HTML) 8 Page - Analog Devices

Back Button ADPA1122AEHZ-R7 Datasheet HTML 4Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 5Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 6Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 7Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 8Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 9Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 10Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 11Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 12Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 8 / 17 page
background image
Data Sheet
ADPA1122
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 8 of 17

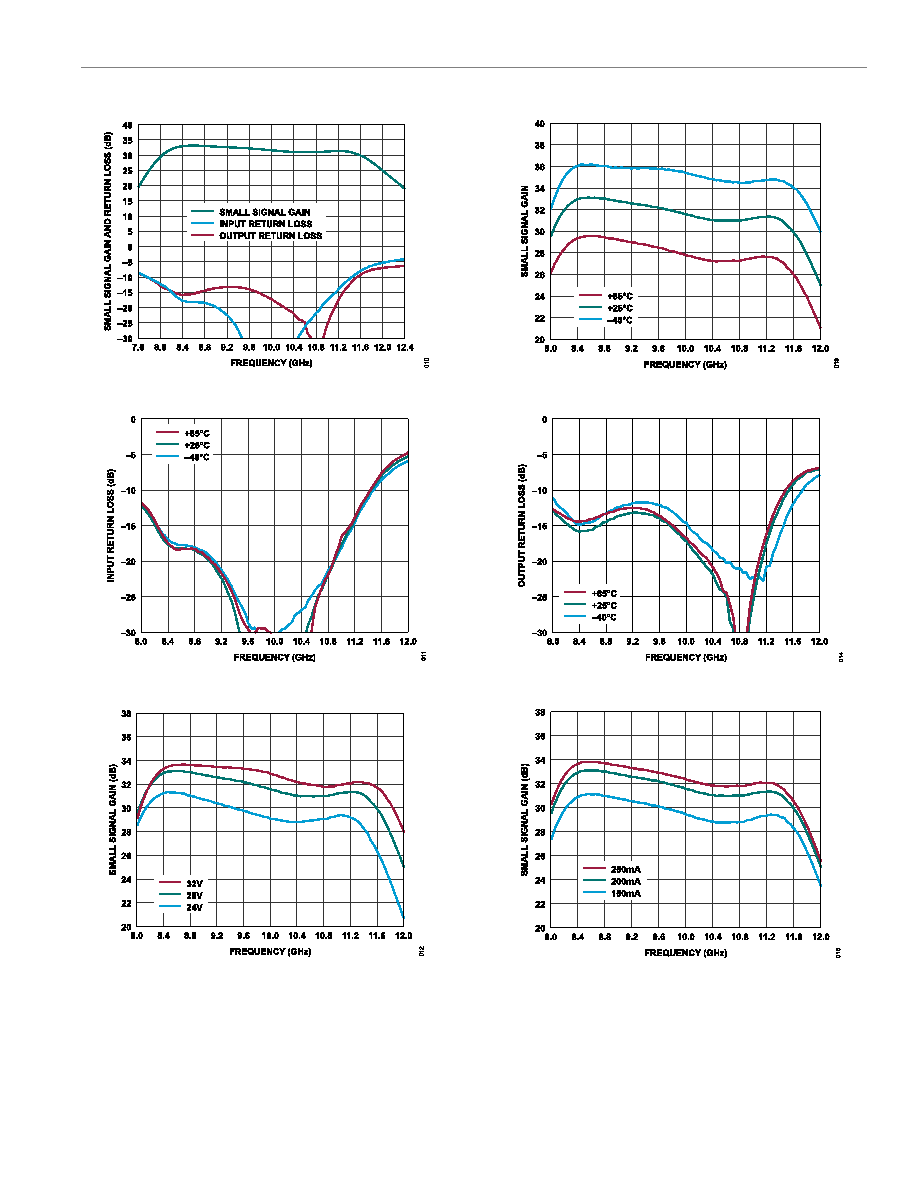

Figure 10. Small Signal Gain and Return Loss vs. Frequency
Figure 11. Input Return Loss vs. Frequency for Various Temperatures
Figure 12. Small Signal Gain vs. Frequency for Various Supply Voltages, IDQ
= 200 mA
Figure 13. Small Signal Gain vs. Frequency for Various Temperatures
Figure 14. Output Return Loss vs. Frequency for Various Temperatures
Figure 15. Small Signal Gain vs. Frequency for Various IDQ Values at VDD = 28
V
