Data Sheet
ADR3625/ADR3630/ADR3650
APPLICATIONS INFORMATION
analog.com
Rev. A | 24 of 26

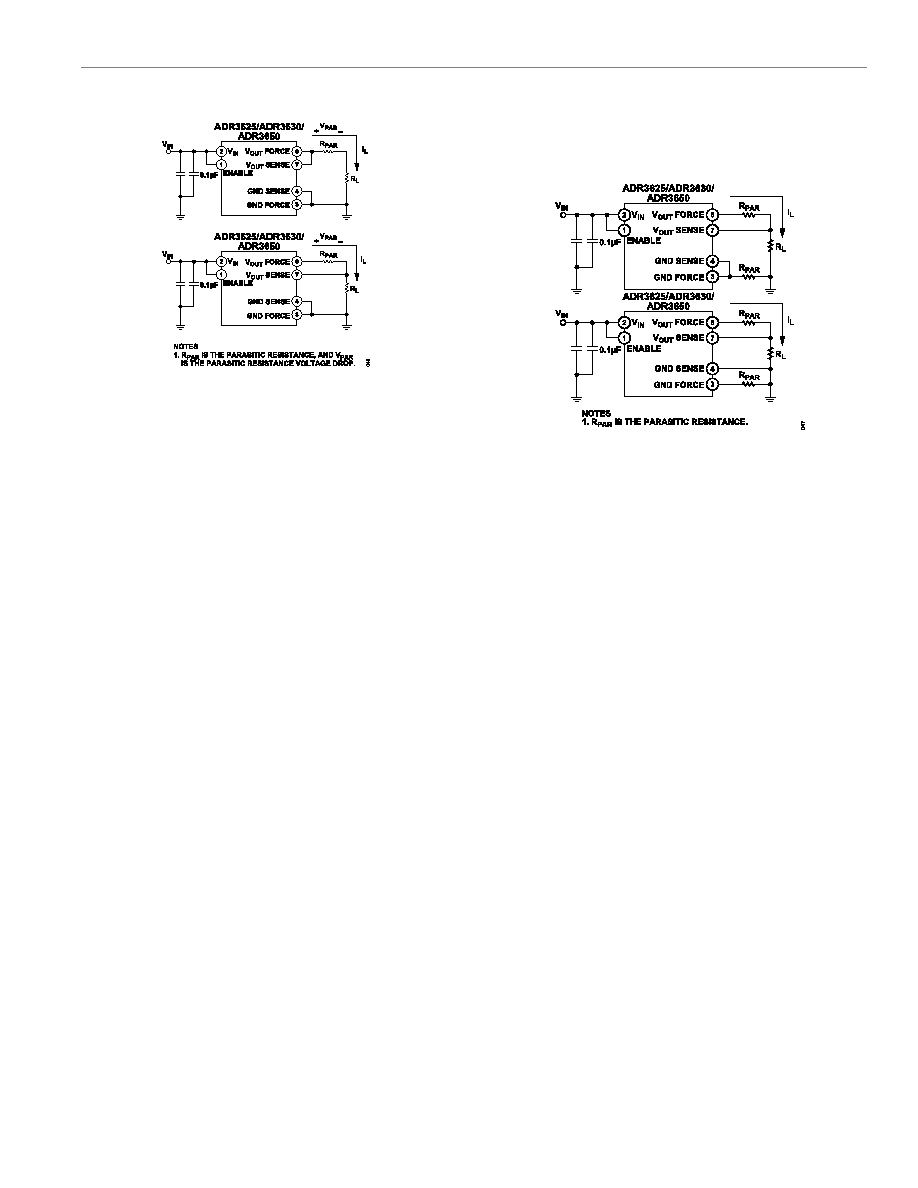

Figure 75. Output Force and Sense
Avoid adding parasitic resistance between the load and the VOUT
SENSE pin. Minimize the metal parasitic in the VOUT FORCE line to
the load to maintain a low dropout voltage.
The GND_FORCE line carries the load sinking current. Connect the
GND_SENSE line directly to the bottom of the load as shown in
Figure 76.
Figure 76. Ground Force and Sense
