REV. B
AD6624
–10–

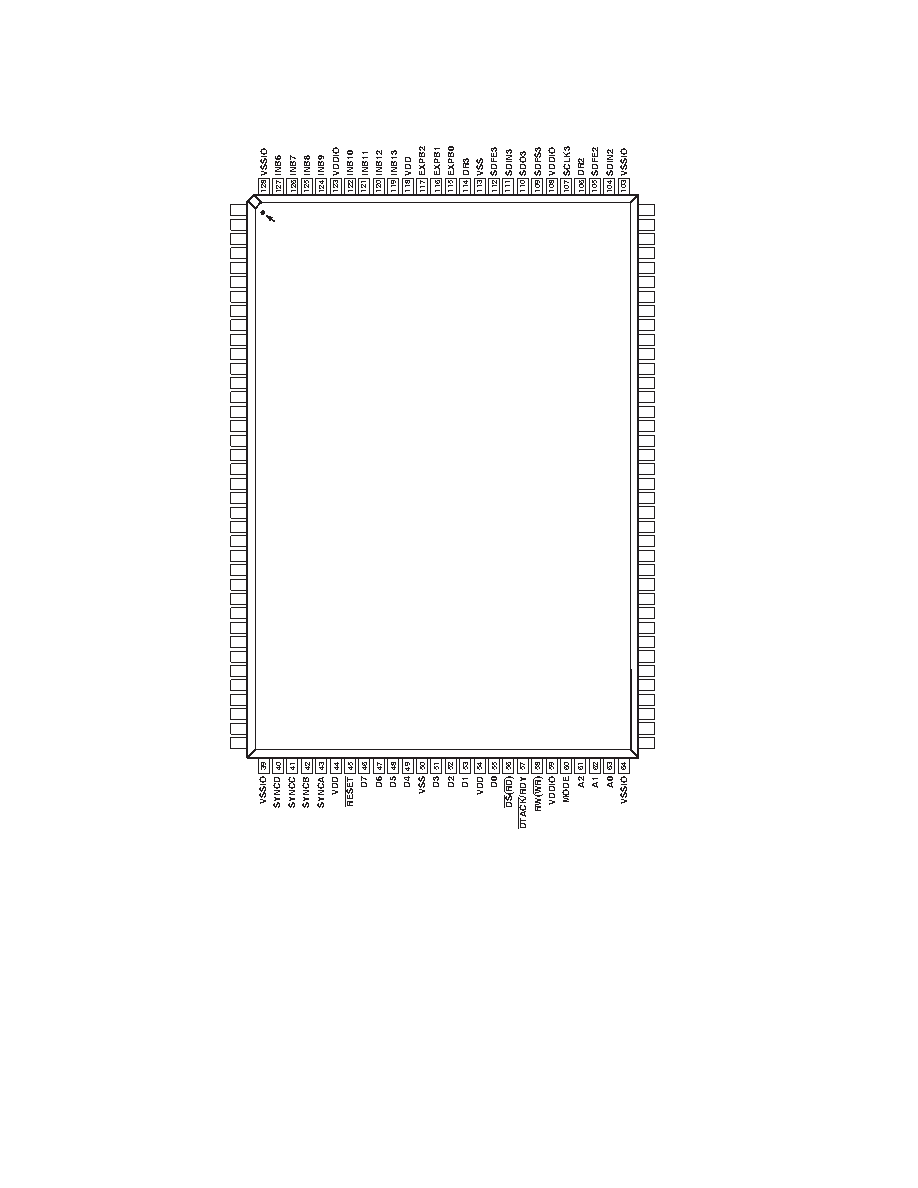

PIN CONFIGURATION
92
93
95
90
91
88
89
87
96
86
94
81
82
83
84
79
80
78
76
77
85
75
73
74
71
72
69
70
67
68
66
65
98
99
101
97
102
100
11
10
16
15
14
13
18
17
20
19
22
21
12
24
23
26
25
28
27
30
29
32
31
5
4
3
2
7
6
9
8
1
34
33
36
35
38
37
PIN 1
IDENTIFIER
TOP VIEW
(Not to Scale)
VSS
SDO2
SDFS2
SCLK2
DR1
SDFE1
VDD
SDIN1
SDO1
SDFS1
SCLK1
VSSIO
DR0
SDIV2
SDIV3
SBM0
CHIP_ID0
VSS
CHIP_ID1
CHIP_ID2
CHIP_ID3
VSS
INB5
INB4
INB3
INB2
INB1
VDD
INB0
IENB
LIB-B
LIB-A
VSS
CLK
EXPA0
EXPA1
EXPA2
VDD
INA13
INA12
INA11
INA10
VDDIO
INA9
INA8
INA7
INA6
VSSIO
INA5
INA4
INA3
INA2
LIA-A
TDI
VDDIO
SDFE0
SDIN0
SDO0
VDDIO
SDFS0
SCLK0
SDIV0
SDIV1
VDD
AD6624
INA1
INA0
IENA
LIA-B
VDD
VSS
TDO
TMS
TCLK
TRST
CS
VSS
