AD8045
Rev. A | Page 16 of 24
CIRCUIT CONFIGURATIONS
WIDEBAND OPERATION

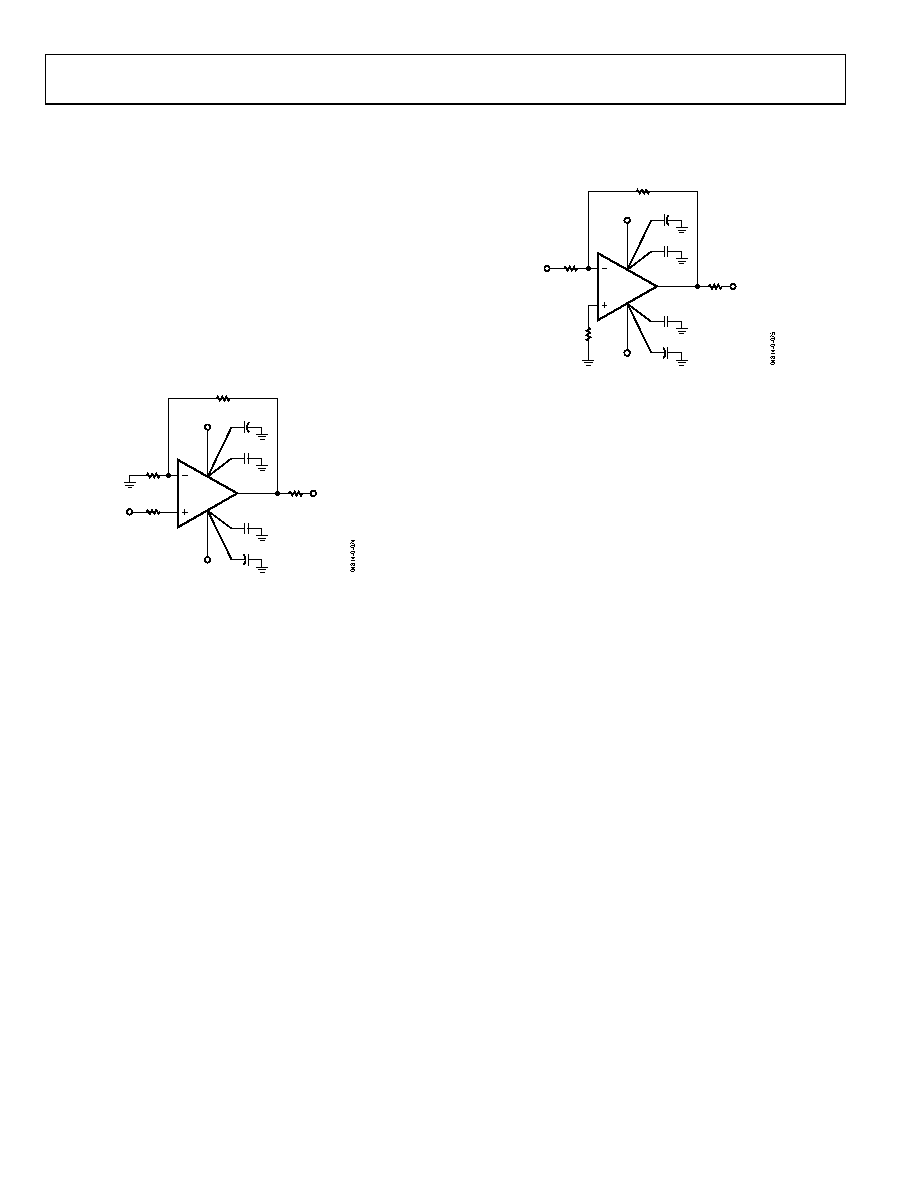

Figure 61 and Figure 62 show the recommended circuit
configurations for noninverting and inverting amplifiers. In
unity gain (G = +1) applications, RS helps to reduce high
frequency peaking. It is not needed for any other configurations.
For more information on layout, see the Printed Circuit Board
Layout section.
The resistor at the output of the amplifier, labeled RSNUB, is used
only when driving large capacitive loads. Using RSNUB improves
stability and minimizes ringing at the output. For more infor-
mation, see the Driving Capacitive Loads section.
AD8045
RG
RF
RS
RSNUB
VIN
VOUT
+VS
+
10
µF
0.1
µF
–VS
+
10
µF
0.1
µF
Figure 61. Noninverting Configuration
AD8045
RG
RF
R = RG||RF
VIN
+VS
+
10
µF
0.1
µF
–VS
+
10
µF
0.1
µF
RSNUB
VOUT
Figure 62. Inverting Configuration
