AD8336
Rev. 0 | Page 7 of 28

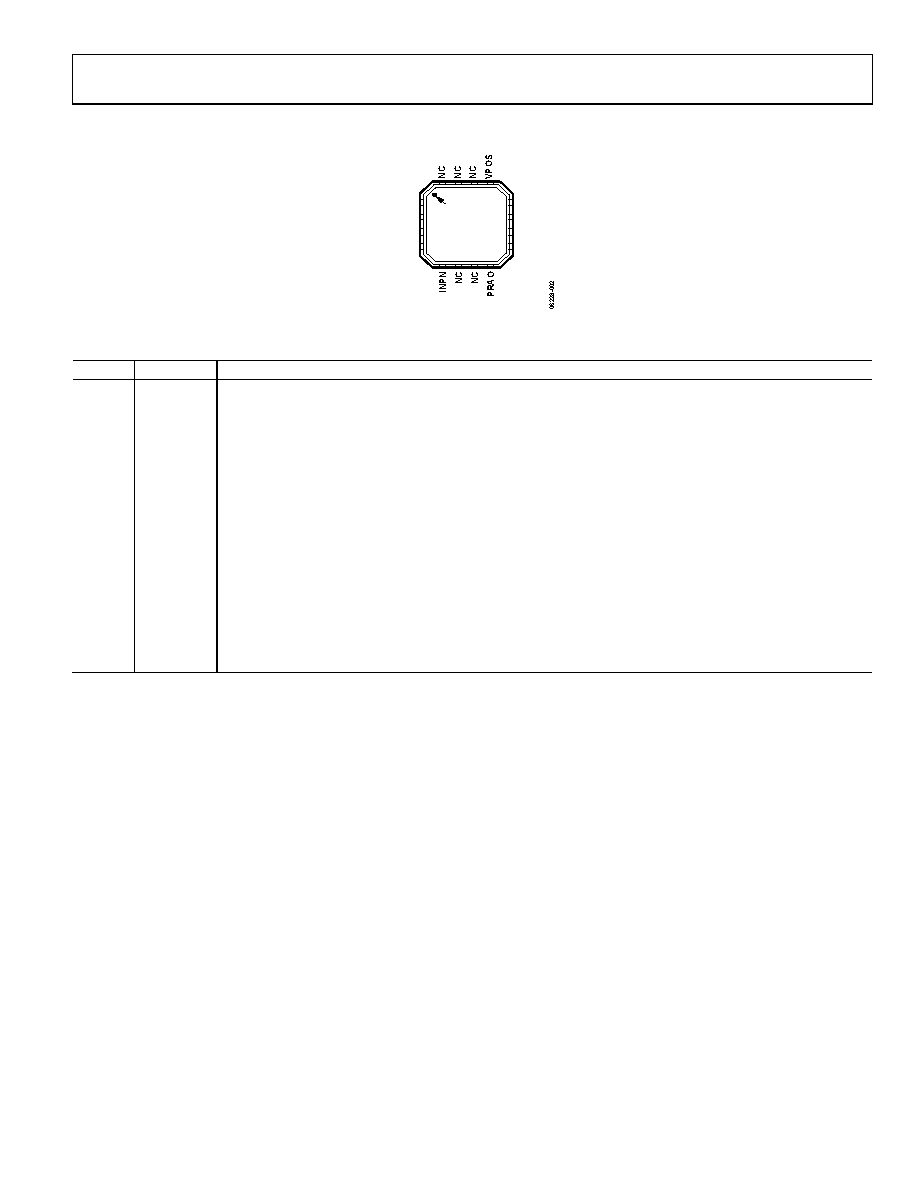

PIN CONFIGURATION AND FUNCTIONAL DESCRIPTIONS
1
4
3
2
14 13
15
16
9
12
11
10
8
7
6
5
VOUT
PWRA
VCOM
INPP
VGAI
VNEG
GNEG
GPOS
PIN 1
INDICATOR
NC = NO CONNECT
AD8336
TOP VIEW
(Not to Scale)
Figure 2. 16-Lead LFCSP Pin Configuration
Table 3. Pin Function Descriptions
Pin No.
Mnemonic
Function
1
VOUT
Output Voltage.
2
PWRA
Power Control. Normal power when grounded; power reduced by half if VPWRA is pulled high.
3
VCOM
Common-Mode Voltage. Normally GND when using a dual supply.
4
INPP
Positive Input to Preamp.
5
INPN
Negative Input to Preamp.
6
NC
No Connect.
7
NC
No Connect.
8
PRAO
Preamp Output.
9
VGAI
VGA Input.
10
VNEG
Negative Supply.
11
GPOS
Positive Gain Control Input.
12
GNEG
Negative Gain Control Input.
13
VPOS
Positive Supply.
14
NC
No Connect.
15
NC
No Connect.
16
NC
No Connect.
