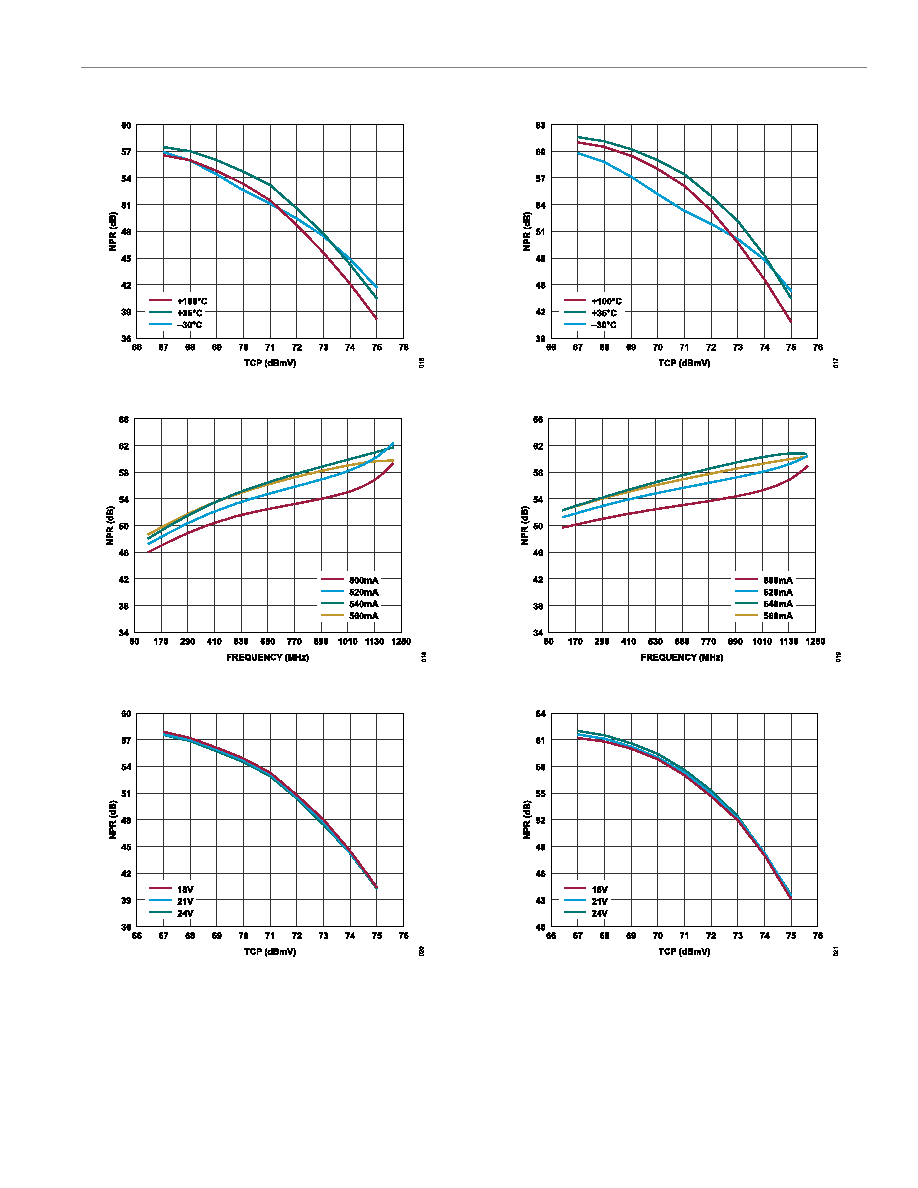

Data Sheet
ADCA3280
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 10 of 18
Figure 15. NPR vs. TCP over Temperature, 111 MHz, 18 dB Tilt
Figure 16. NPR vs. Frequency over Current, 73 dBmV TCP, 18 dB Tilt
Figure 17. NPR vs. TCP over Voltage, 111 MHz, 18 dB Tilt
Figure 18. NPR vs. TCP over Temperature, 111 MHz, 13 dB Tilt
Figure 19. NPR vs. Frequency over Current, 73 dBmV TCP, 13 dB Tilt
Figure 20. NPR vs. TCP over Voltage, 111 MHz, 13 dB Tilt
