Data Sheet G11024EJ6V0DS00

9

µµµµPC1663

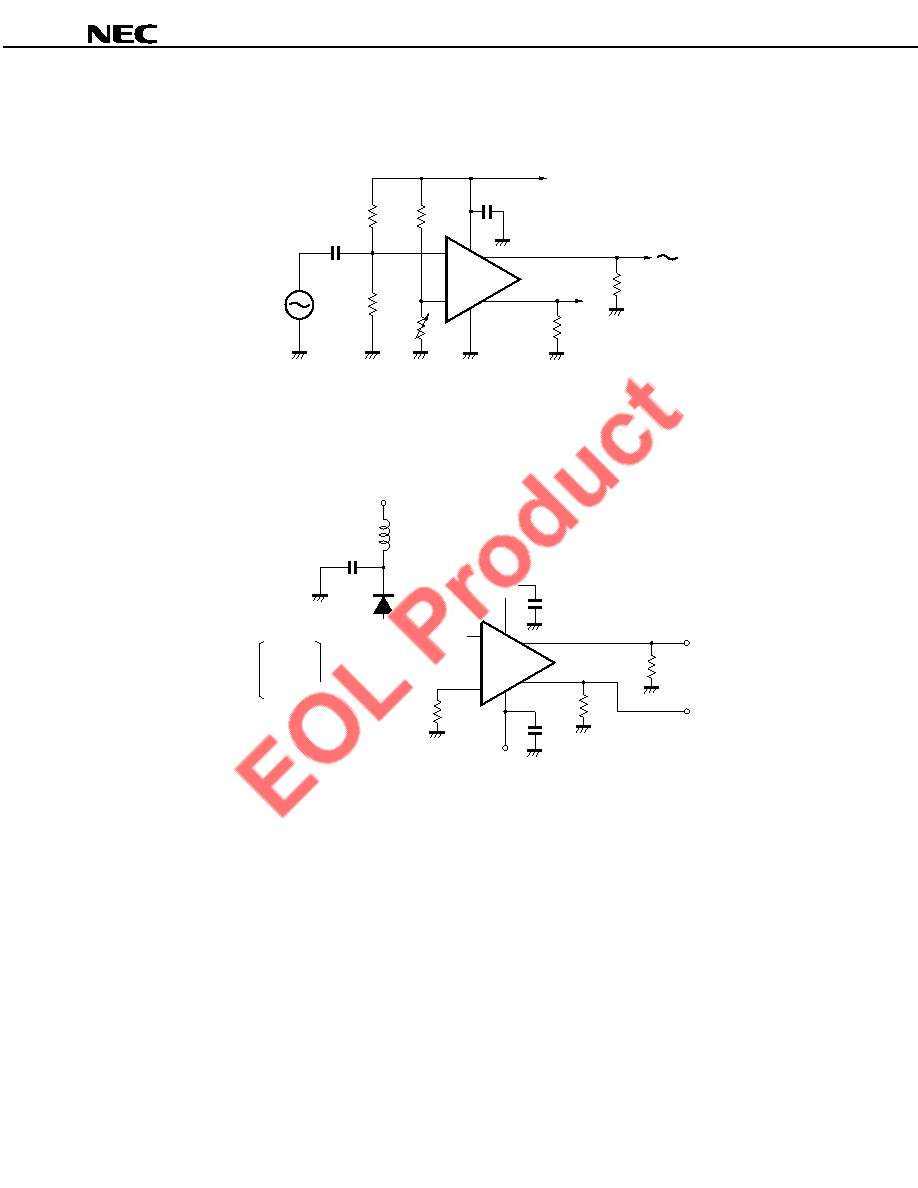

EXAMPLE 2

VCC single supply application example (Outline)

RL

RL

R2

PC1663

µ

R2

R1 = R2

R1

R1

C

VCC

EXAMPLE 3

Photo signal detector circuit example (Outline)

V+

VCC+

L

C

RS

µ

(Refer to data sheet

of each part number)

RS

VCC–

RL

RL

PC1663

OUT1

OUT2

PIN Photo Diode

NDL2102

NDL2104

NDL2208

NDL5200

Caution

When signal source impedance for

µµµµPC1663 is critical, FET source follower buffer should be

inserted between PIN Photo diode and

µµµµPC1663 input.

The application circuits and their parameters are for reference only and are not intended for use in actual design-ins.

Precautions for design in and detail application circuit examples should be referred to application note ‘Usage of

µPC1663 (Document No. G12290E)’.
