CC1000

SWRS048A

Page 12 of 55

7. Configuration Overview

CC1000 can be configured to achieve the

best

performance

for

different

applications. Through the programmable

configuration registers the following key

parameters can be programmed:

• Receive / transmit mode

• RF output power

• Frequency

synthesiser

key

parameters: RF output frequency, FSK

frequency

separation

(deviation),

crystal oscillator reference frequency

• Power-down / power-up mode

• Crystal oscillator power-up / power

down

• Data rate and data format (NRZ,

Manchester coded or UART interface)

• Synthesiser lock indicator mode

• Optional RSSI or external IF

8. Configuration Software

Chipcon provides users of

CC1000 with a

software

program,

SmartRF

® Studio

(Windows interface) that generates all

necessary

CC1000 configuration data

based on the user’s selections of various

parameters. These hexadecimal numbers

will then be the necessary input to the

microcontroller for the configuration of

CC1000. In addition the program will

provide the user with the component

values

needed

for

the

input/output

matching circuit and the VCO inductor.

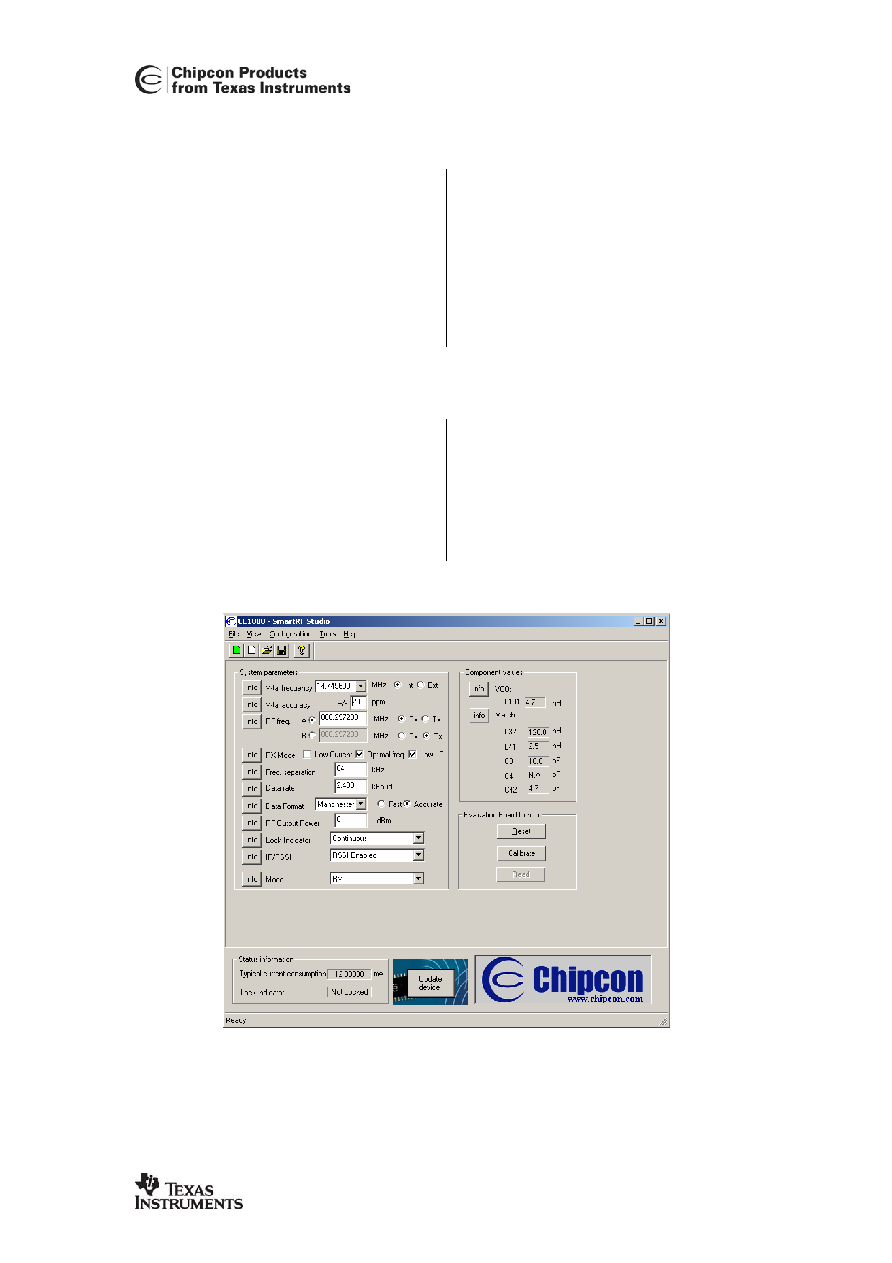

Figure 3 shows the user interface of the

CC1000 configuration software.

Figure 3. SmartRF

® Studio user interface
