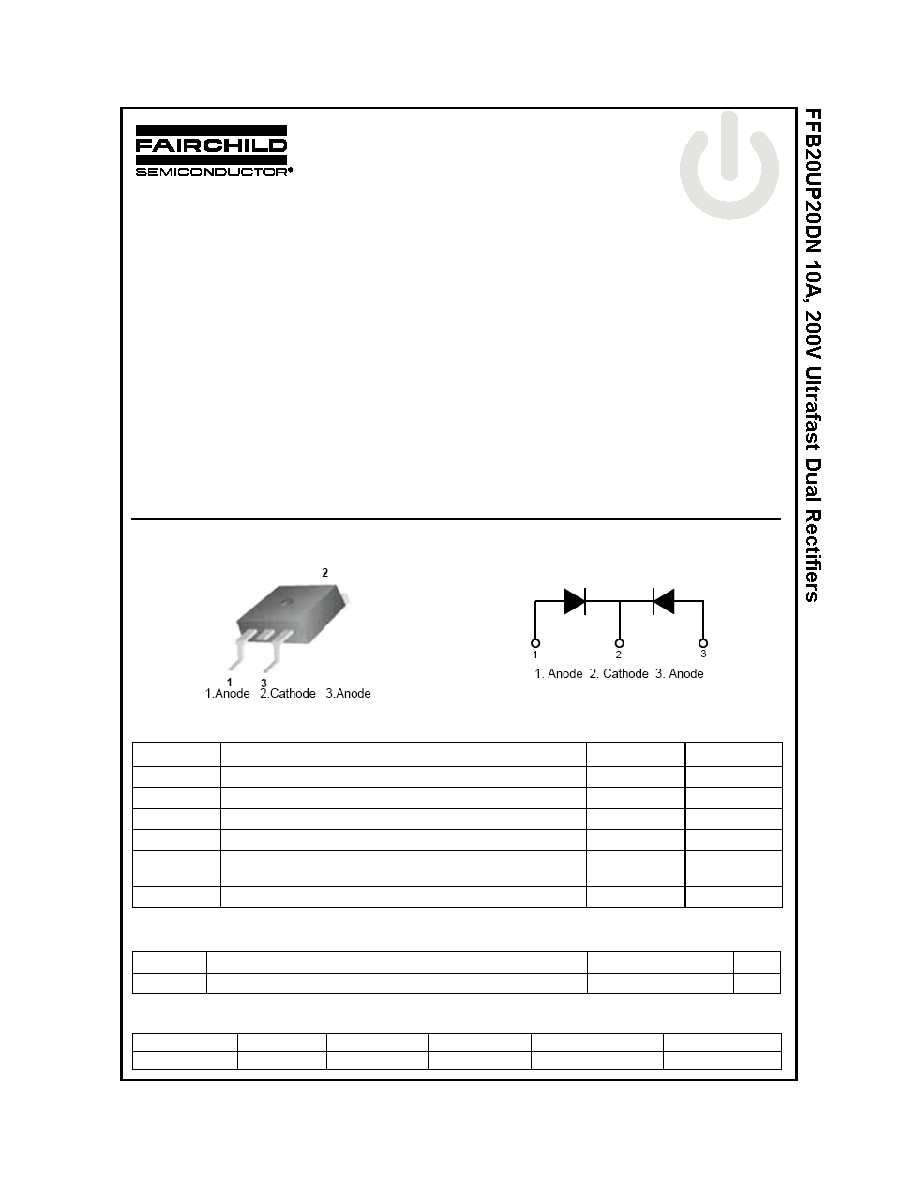

1 / 5 page  tm June 2006 ©2006 Fairchild Semiconductor Corporation FFB20UP20DN Rev. A www.fairchildsemi.com 1 FFB20UP20DN 10A, 200V Ultrafast Dual Rectifiers Features High Reverse Voltage : VRRM = 200V Avalanche Energy Rated Planar Construction Applications Output Rectifiers Switching Mode Power Supply Free-wheeling diode for motor application Power switching circuits Description The FFB20UP20DN is an ultrafast rectifier. It has a low forward voltage drop and is a silicon nitride passivated ion- implanted epitaxial planar construction. This device is intended for use as a freewheeling/clamping rectifier in a variety of switching power supplies and other power switching applications. Its low stored charge and hyperfast recovery minimize ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors. Absolute Maximum Ratings T C = 25°C unless otherwise noted Thermal Characteristics T C = 25°C unless otherwise noted Package Marking and Ordering Information Symbol Parameter Ratings Units VRRM Peak Repetitive Reverse Voltage 200 V VRWM Working Peak Reverse Voltage 200 V VR DC Blocking Voltage 200 V If(avg) Average Rectified Forward Current @ TC = 155oC10 A IFSM Non-repetitive Peak Surge Current 60Hz Single Half-Sine Wave 100 A TJ, TSTG Operating Junction and Storage Temperature -55 to +175 °C Symbol Parameter Max Units RθJC1 Maximum Thermal Resistance, Junction to Case 3.5 °C/W Device Marking Device Package Reel Size Tape Width Quantity F20UP20DN F20UP20DN TO-263 13” 24mm 800 Pin Assignments |
