Data Sheet
ADL5507
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 21 of 34

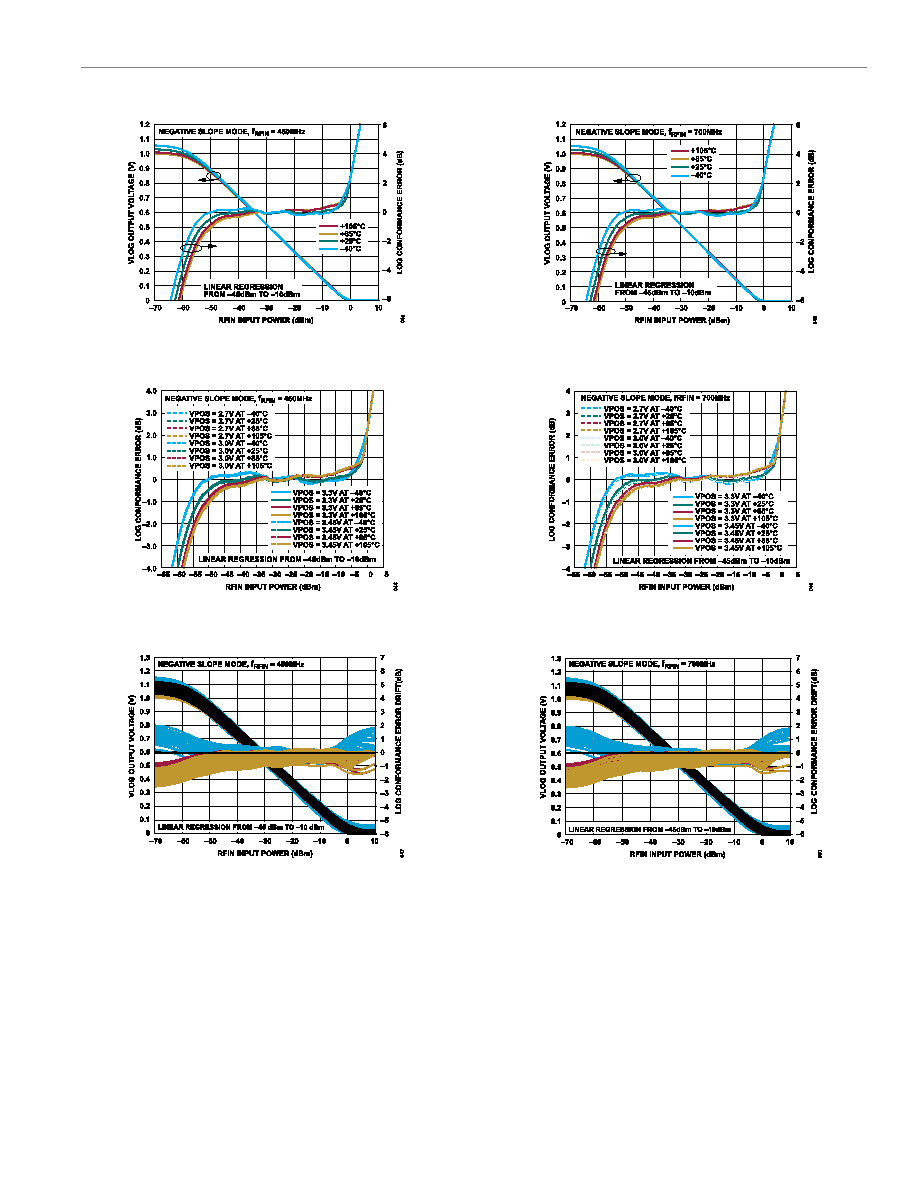

Figure 45. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
450 MHz, Negative Slope Mode
Figure 46. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
450 MHz, Negative Slope Mode
Figure 47. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 450 MHz, Negative Slope Mode
Figure 48. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
700 MHz, Negative Slope Mode
Figure 49. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
700 MHz, Negative Slope Mode
Figure 50. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 700 MHz, Negative Slope Mode
