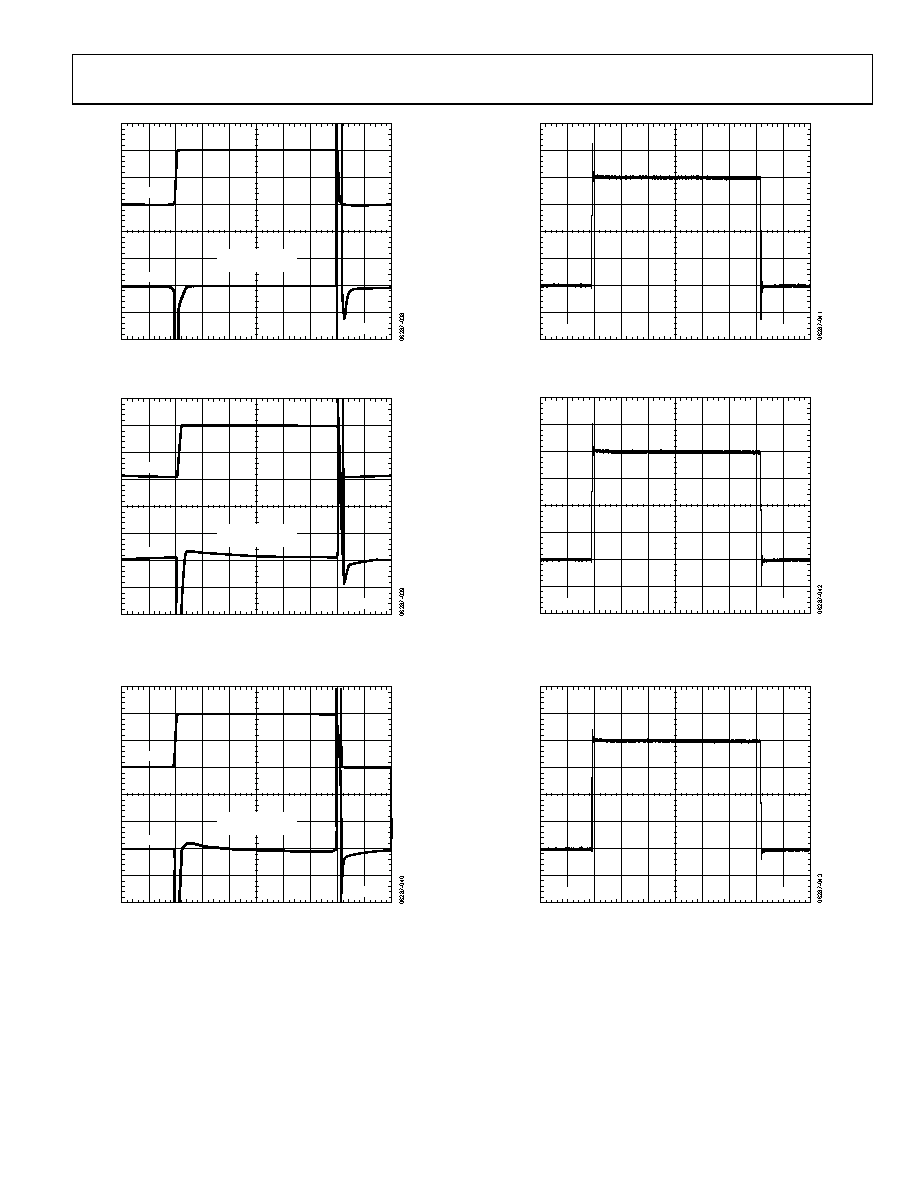

background image
AD8251
Rev. 0 | Page 13 of 24
5V/DIV
2µs/DIV
0.002%/DIV
400ns TO 0.01%
600ns TO 0.001%
Figure 36. Large Signal Pulse Response and Settling Time,
G = 2, RL = 10 kΩ
5V/DIV
2µs/DIV
0.002%/DIV
376ns TO 0.01%
640ns TO 0.001%
Figure 37. Large Signal Pulse Response and Settling Time,
G = 4, RL = 10 kΩ
5V/DIV
2µs/DIV
0.002%/DIV
364ns TO 0.01%
522ns TO 0.001%
Figure 38. Large Signal Pulse Response and Settling Time,
G = 8, RL = 10 kΩ
25mV/DIV
2µs/DIV
Figure 39. Small Signal Response,
G = 1, RL = 2 kΩ, CL = 100 pF
25mV/DIV
2µs/DIV
Figure 40. Small Signal Response,
G = 2, RL = 2 kΩ, CL = 100 pF
25mV/DIV
2µs/DIV
Figure 41. Small Signal Response,
G = 4, RL = 2 kΩ, CL = 100 pF
