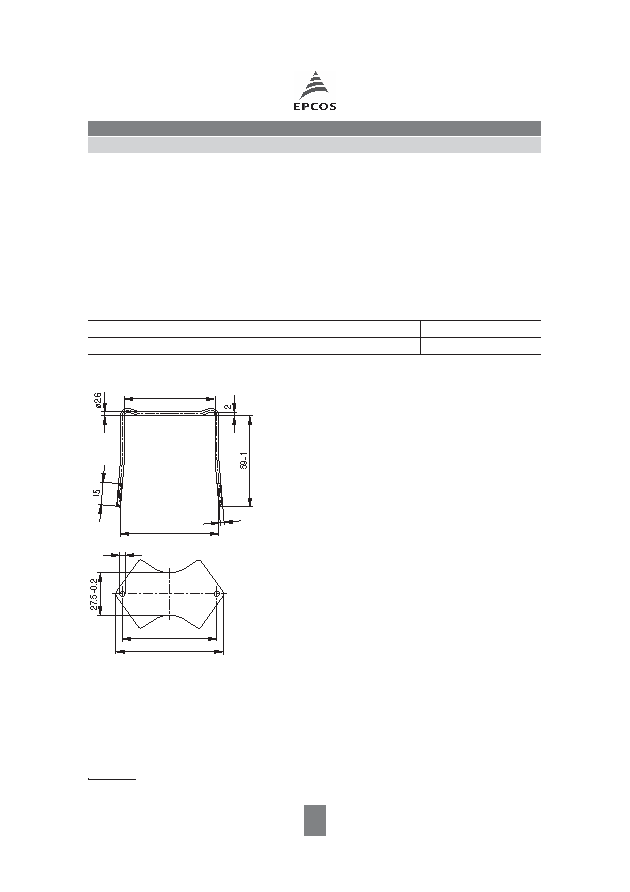

Mounting assembly

I For chassis mounting1) or printed circuit boards

I The set comprises a yoke and a base plate

I Fixing nuts M3 and washers are supplied

Yoke

I Material: Brass clamping yoke (

∅ 2,6 mm) with thread

Base plate

I Material: Aluminum (0,6 mm)

Ordering code

Complete mounting assembly including nuts and washers

B65685-A2000

FPM0009-T

59,8+0,3

64,8+1

69 0,2

60,96±0,1

ø3,5+0,15

1) On a chassis the coil former must be mounted with its solder pins upward.

B65685

Accessories

PM 62/49
