AD633
Data Sheet
Rev. K | Page 14 of 20

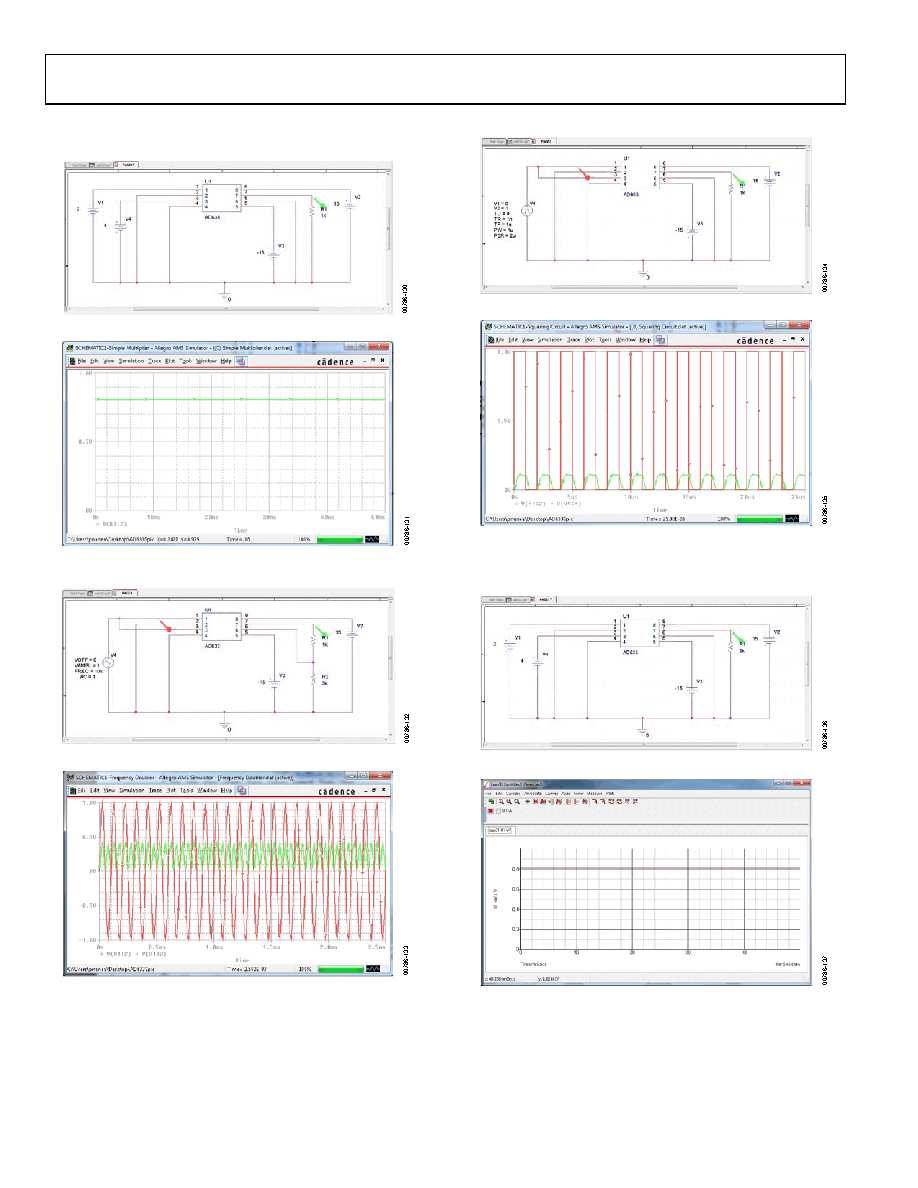

EXAMPLES OF DC, SIN, AND PULSE SOLUTIONS
USING PSPICE
Figure 30. Simple Circuit Schematic Created in PSPICE
Figure 31. Simple Circuit Response Graph Displayed in PSPICE
(2 V × 4 V)/10 V = 0.8 V
Figure 32. Frequency Doubler Circuit Schematic Created in PSPICE
Figure 33. Frequency Doubler Response Graph Displayed in PSPICE
Figure 34. Pulse Circuit Schematic Created in PSPICE
Figure 35. Pulse Circuit Response Graph Displayed in PSPICE
EXAMPLES OF DC, SIN, AND PULSE SOLUTIONS
USING SIMETRIX
Figure 36. Simple Circuit Schematic Created in SIMetrix
Figure 37.Simple Circuit Response Graph Displayed in SIMetrix
(2 V × 4 V)/10 V = 0.8 V
