Data Sheet
AD8605/AD8606/AD8608
Rev. O | Page 15 of 24
TIME (400ns/DIV)
VS = ±1.35V
RL = 10kΩ
CL = 200pF
AV = 1

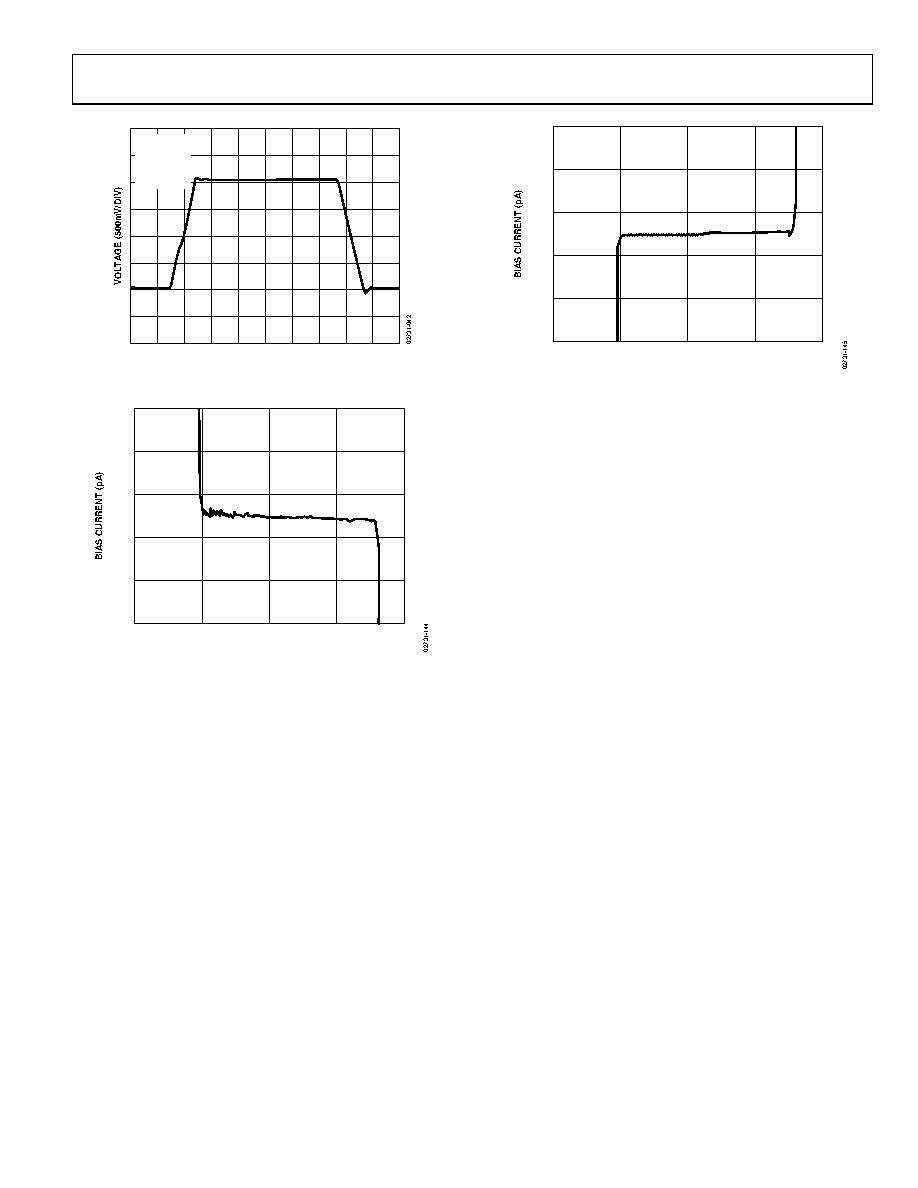

Figure 43. Large Signal Transient Response
5
–5
–3
–1
1
3
–2
0
2
4
6
COMMON-MODE VOLTAGE (V)
Figure 44. Inverting Input Bias Current vs Common-Mode Voltage
5
–5
–3
–1
1
3
–2
0
2
4
6
COMMON-MODE VOLTAGE (V)
Figure 45. Noninverting Input Bias Current vs Common-Mode Voltage
