Data Sheet

ADA4077-1/ADA4077-2/ADA4077-4

PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

analog.com

Rev. F | 8 of 25

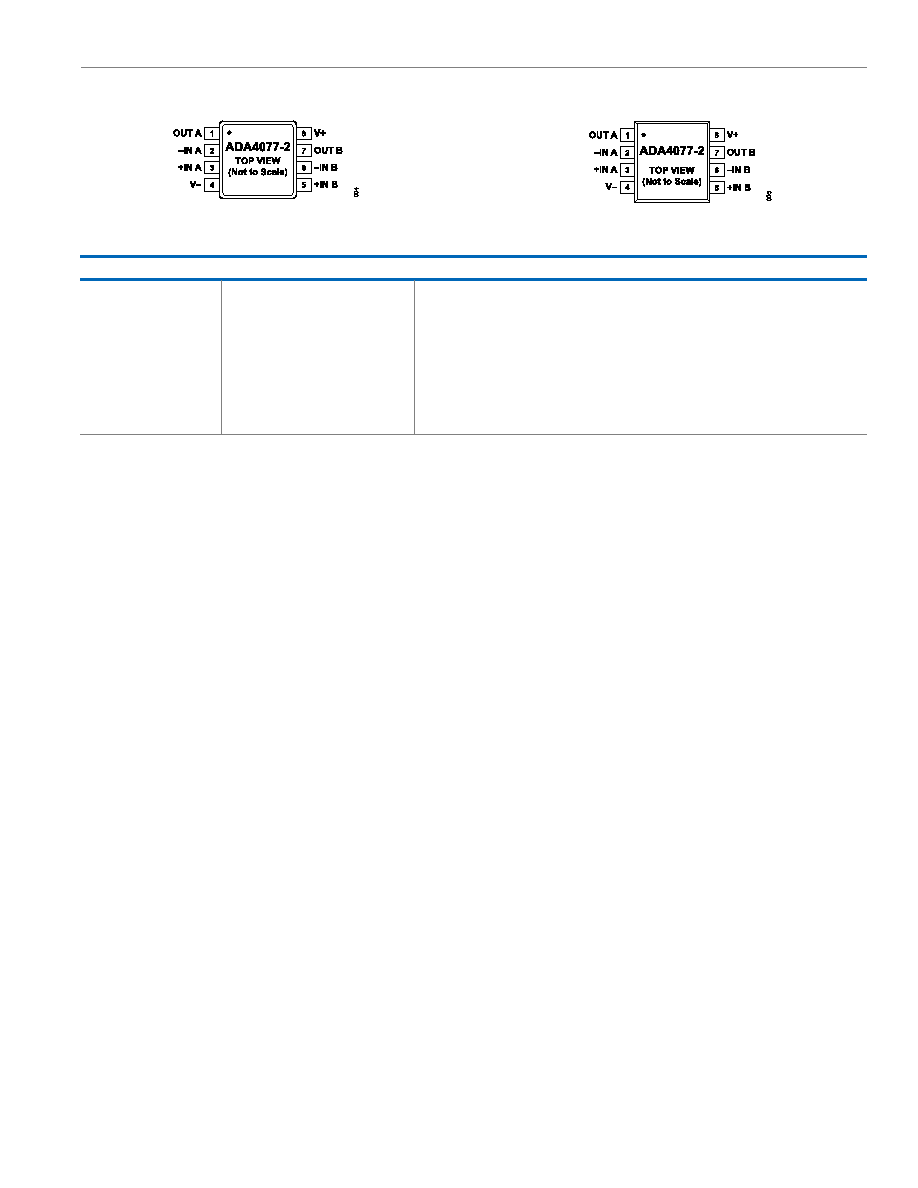

Figure 6. ADA4077-2 Pin Configuration, 8-Lead MSOP

Figure 7. ADA4077-2 Pin Configuration, 8-Lead SOIC

Table 7. ADA4077-2 Pin Function Descriptions, 8-Lead MSOP and 8-Lead SOIC

Pin No.

Mnemonic

Description

OUT A

Output Channel A.

−IN A

Inverting Input Channel A.

+IN A

Noninverting Input Channel A.

V−

Negative Supply Voltage.

+IN B

Noninverting Input Channel B.

−IN B

Inverting Input Channel B.

OUT B

Output Channel B.

V+

Positive Supply Voltage.
