Data Sheet
ADA4870
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 15 of 24

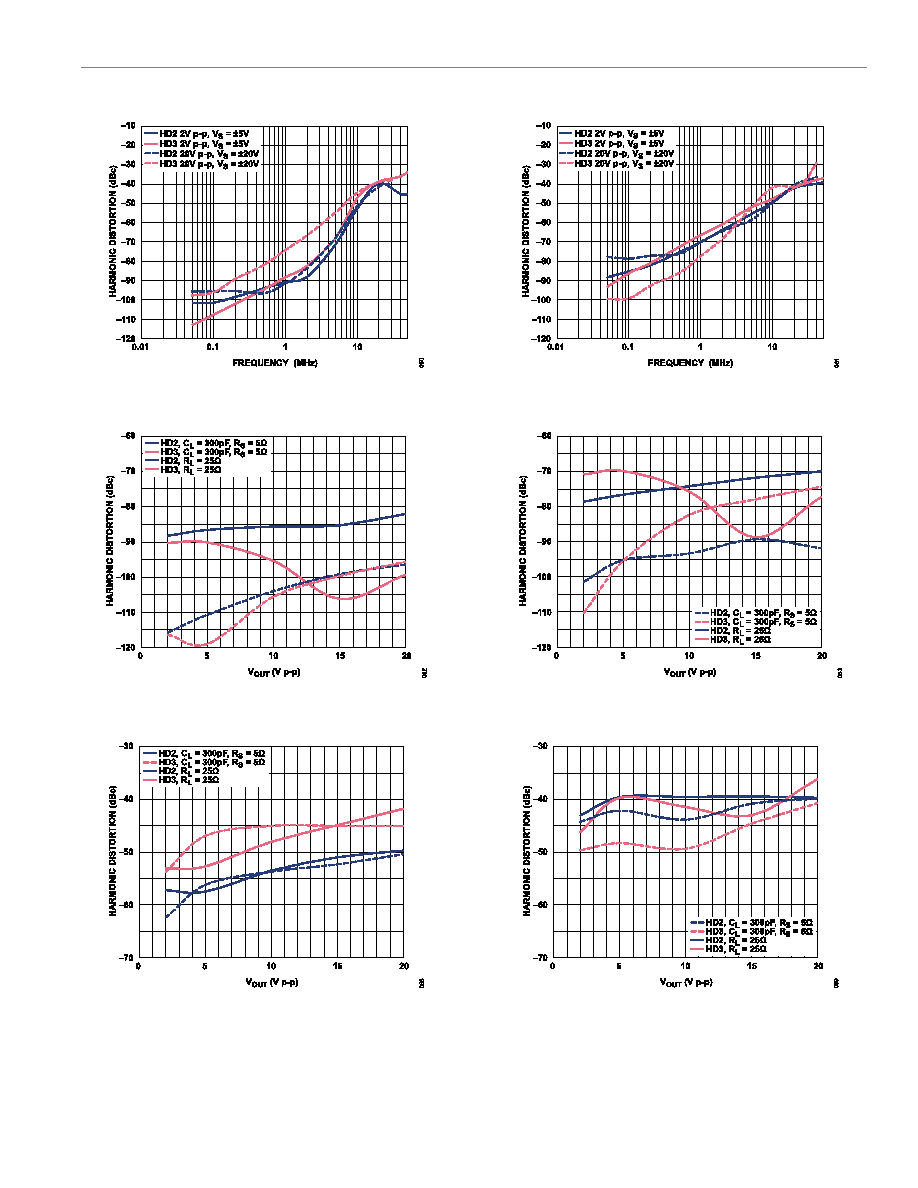

Figure 46. Harmonic Distortion vs. Frequency, CL = 300 pF, RS = 5 Ω, RF =
1.21 kΩ, AV = −10
Figure 47. Harmonic Distortion vs. VOUT, VS = ±20 V, Frequency = 100 kHz,
RF = 1.21 kΩ, AV = −10
Figure 48. Harmonic Distortion vs. VOUT, VS = ±20 V, Frequency = 10 MHz,
RF = 1.21 kΩ, AV = −10
Figure 49. Harmonic Distortion vs. Frequency, RL = 25 Ω, RF = 1.21 kΩ, AV =
−10
Figure 50. Harmonic Distortion vs. VOUT, VS = ±20 V, Frequency = 1 MHz, RF =
1.21 kΩ, AV = −10
Figure 51. Harmonic Distortion vs. VOUT, VS = ±20 V, Frequency = 30 MHz,
RF = 1.21 kΩ, AV = −10
