ADA4528-1/ADA4528-2

Data Sheet

Rev. F | Page 8 of 24

OUT A

–IN A

+IN A

V–

V+

OUT B

–IN B

+IN B

ADA4528-2

TOP VIEW

(Not to Scale)

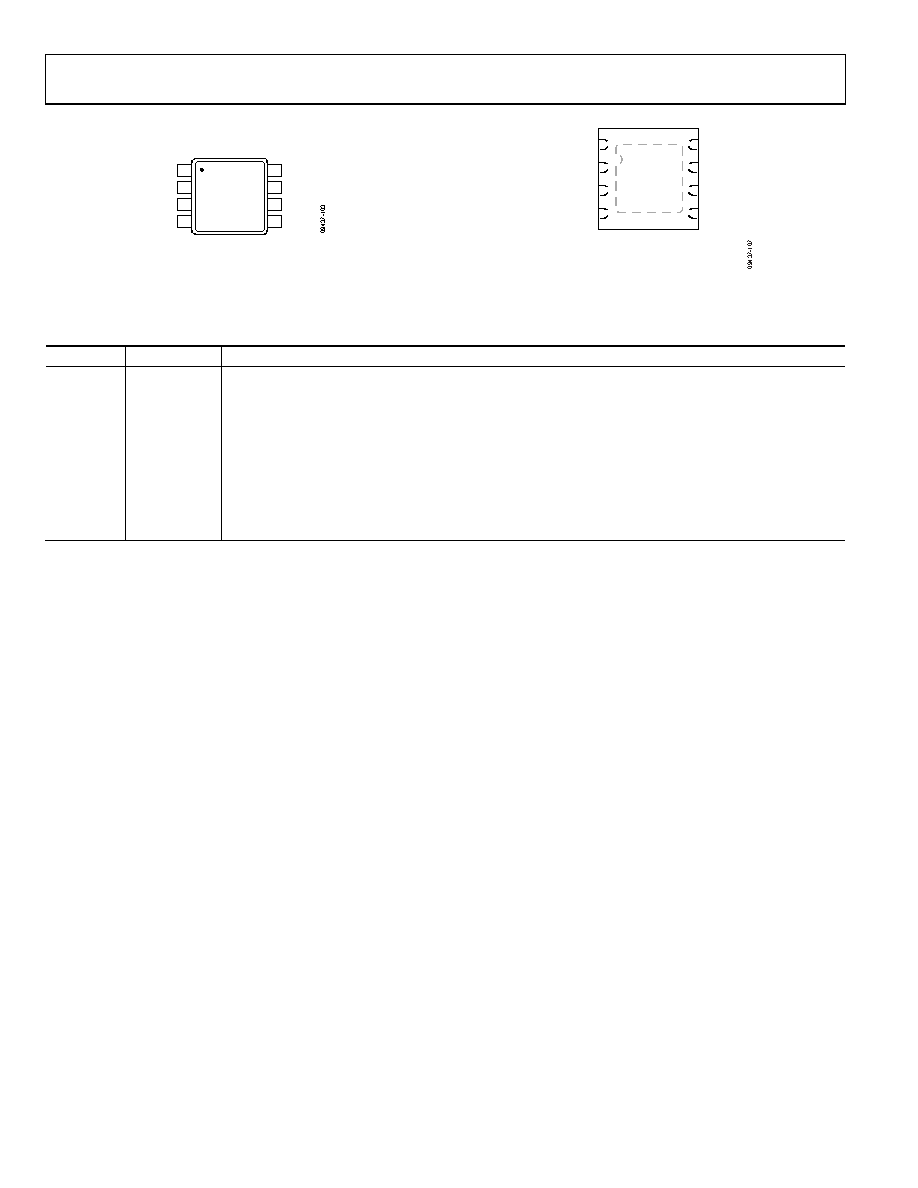

Figure 6. ADA4528-2 Pin Configuration, 8-Lead MSOP

ADA4528-2

TOP VIEW

(Not to Scale)

+IN A

V–

OUT A

–IN A

6–IN B

5+IN B

8V+

7OUT B

NOTES

1. CONNECT THE EXPOSED PAD TO

V– OR LEAVE IT UNCONNECTED.

Figure 7. ADA4528-2 Pin Configuration, 8-Lead LFCSP

Table 7. ADA4528-2 Pin Function Descriptions

Pin No.

Mnemonic

Description

OUT A

Output, Channel A.

−IN A

Inverting Input, Channel A.

+IN A

Noninverting Input, Channel A.

V−

Negative Supply Voltage.

+IN B

Noninverting Input, Channel B.

−IN B

Inverting Input, Channel B.

OUT B

Output, Channel B.

V+

Positive Supply Voltage.

EPAD

Connect the exposed pad to V- or leave it unconnected.
