Data Sheet

ADRF5062

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 7 of 11

INSERTION LOSS, RETURN LOSS, AND ISOLATION

VDD = 3.3 V, VSS = −3.3 V, VCTL= 0 V or 3.3 V, and TCASE = 25°C, and a 100 Ω differential system, unless otherwise noted. RFC refers to the

RFCP and RFCN differential pair, RF1 refers to the RF1P and RF1N differential pair, RF2 refers to the RF2P and RF2N differential pair, and

RFx refers the RF1 and RF2 differential pairs.

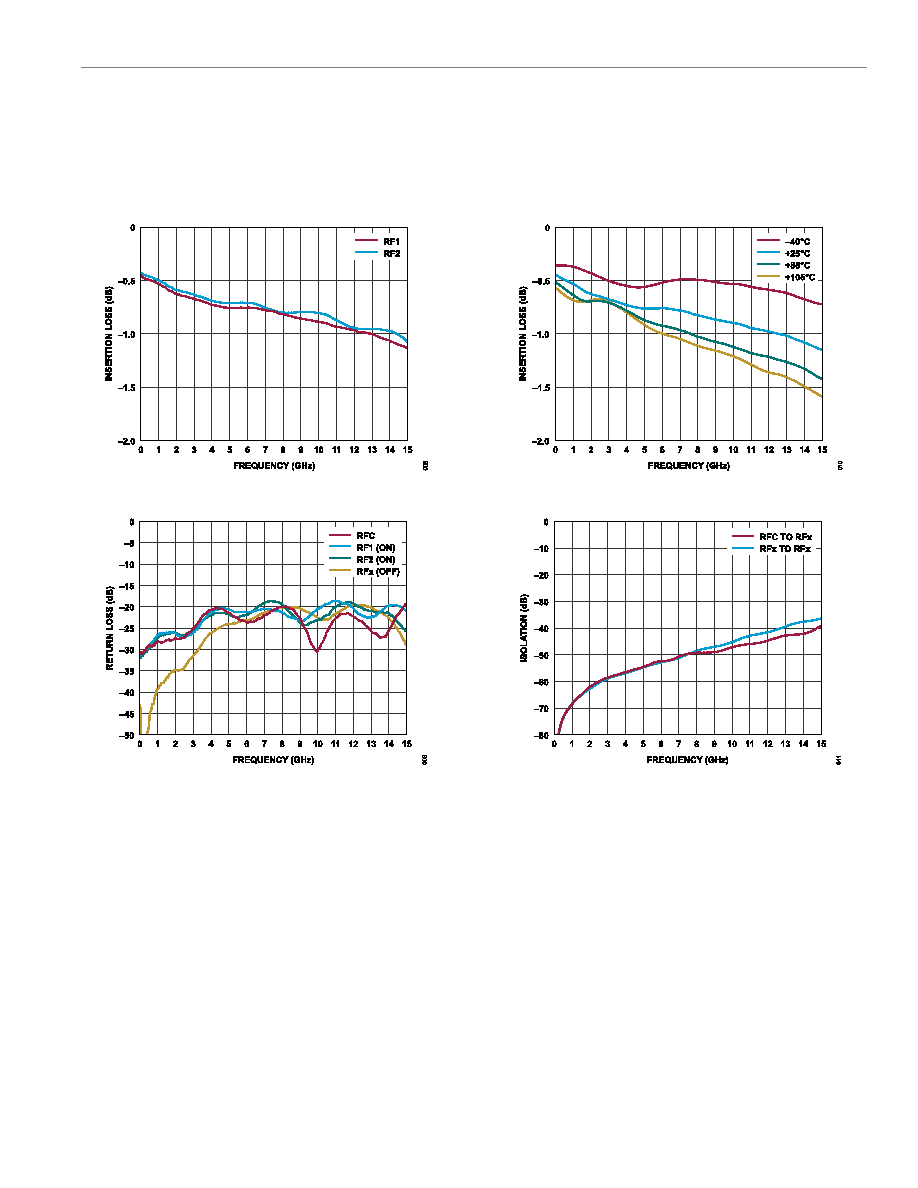

Figure 8. Insertion Loss vs. Frequency, RF1 and RF2

Figure 9. Return Loss vs. Frequency for RFC, RF1, RF2, and RFx

Figure 10. Insertion Loss vs. Frequency over Temperature

Figure 11. Isolation vs. Frequency
