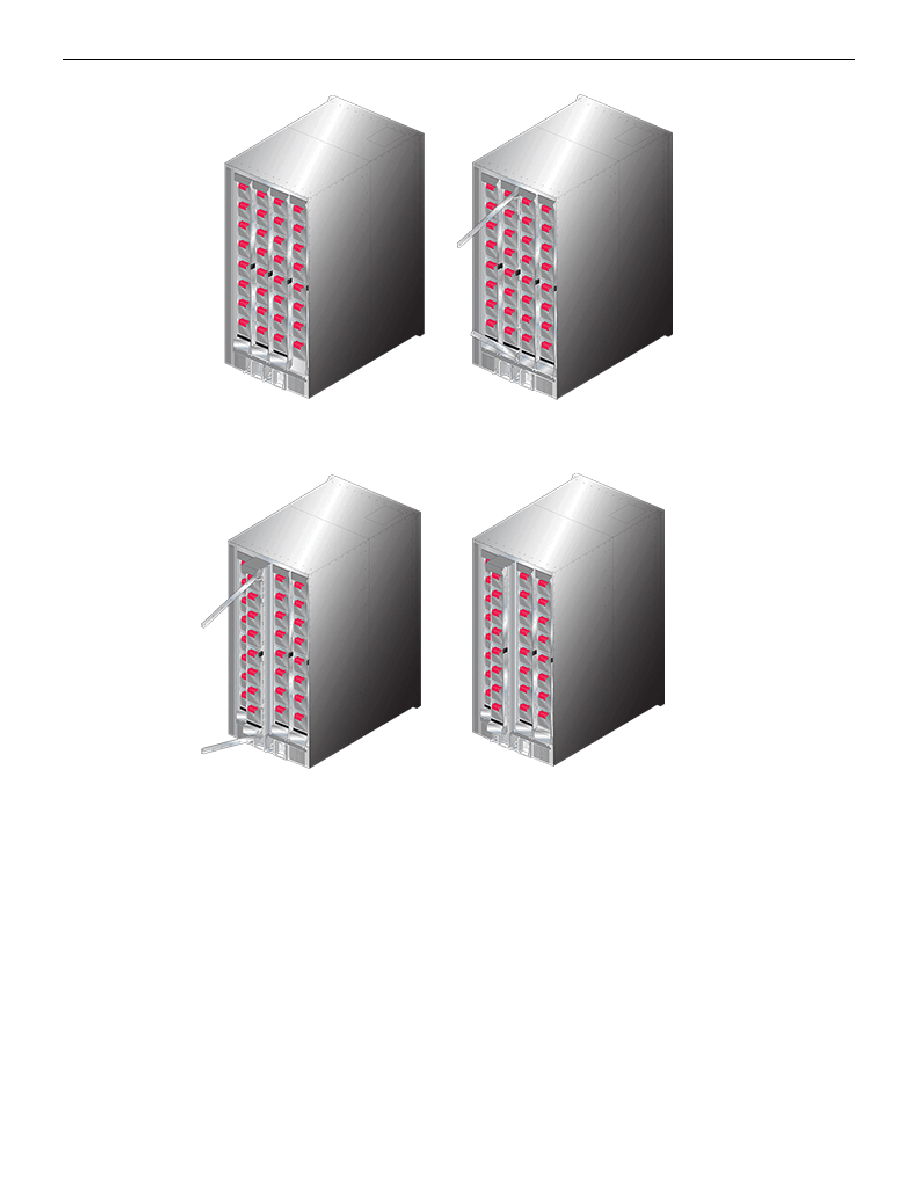

Figure 33: Fabric Module Removal: Initial Position and Opening the Lock-Levers

Figure 34: Fabric Module Removal: Edging the Module Out and Closing the Lock-Levers

The DCS-7316 fabric module is almost three feet long and weighs close to 40 pounds. Use

necessary precautions to safely manage the component outside of the chassis.

B.1.2

Inserting Fabric Modules

The fabric module insertion process is the inverse of the removal procedure. These instructions

describe the method of inserting the fabric module into a chassis.

1. Grasping the module by its frame, place the module chassis railing that corresponds to the slot

where it is to be placed. The lock-levers should be in the closed position.

2. Slide the module into the chassis until it’s within three to four inches of being fully inserted (Fabric

Module-right).

3. Press the Release Button to release the lock-levers into the open position (Fabric Module-left).

4. Continue inserting the module into the chassis. If other fabric modules are in the chassis, the

module being installed should be in the same relative position (Fabric Module-right).
