PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

analog.com

Rev. B | 8 of 25

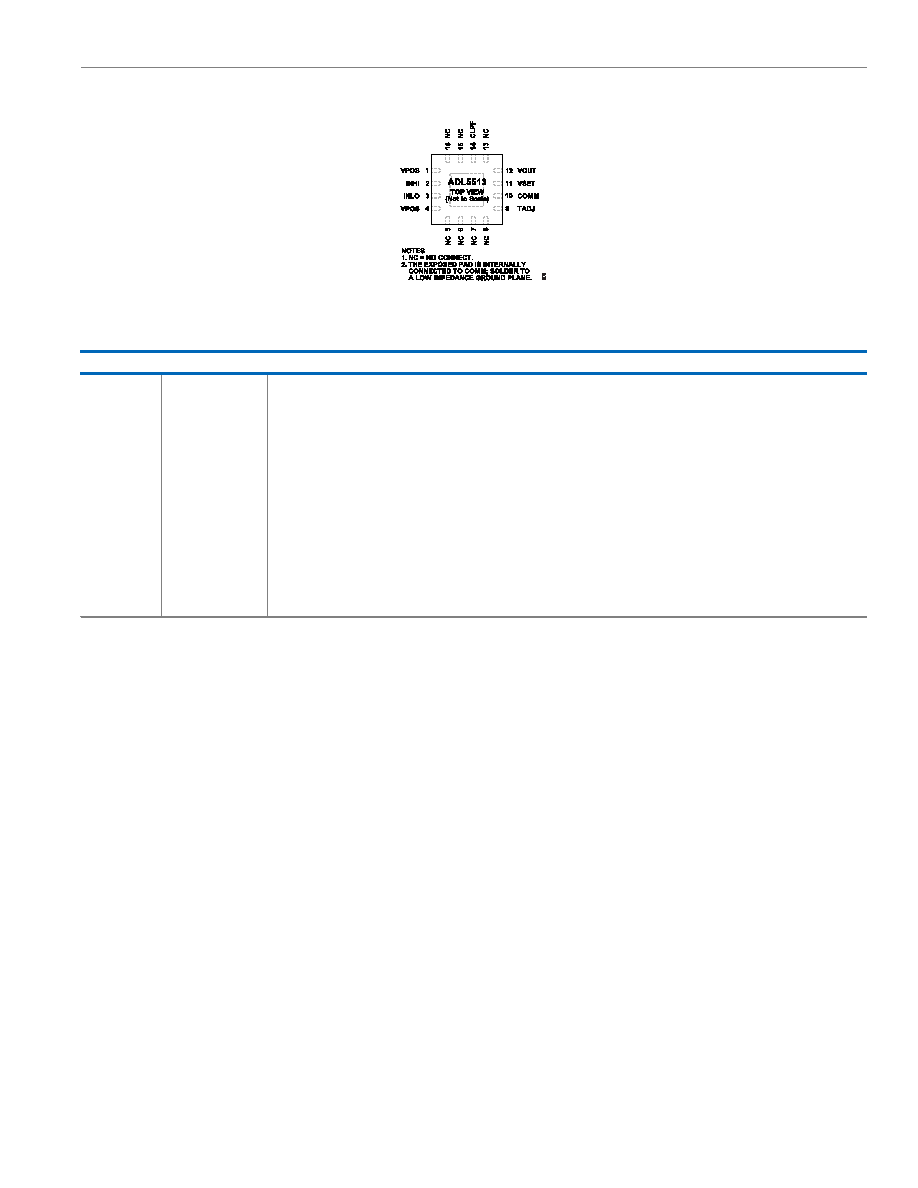

Figure 2. Pin Configuration

Table 3. Pin Function Descriptions

Pin No.

Mnemonic

Description

1, 4

VPOS

Positive Supply Voltage, 2.7 V to 5.5 V.

2

INHI

RF Input. AC-coupled RF input.

3

INLO

RF Common for INHI. AC-coupled RF common.

5, 6, 7, 8, 13,

15, 16

NC

No Connect. These pins can be left open or be soldered to a low impedance ground plane.

9

TADJ

Temperature Compensation Adjustment. Frequency-dependent temperature compensation is set by applying a specified voltage to

the pin. The TADJ pin has dual functionality as a power-down pin, PWDN. Applying a voltage of VPOS − 0.3 V disables the device.

10

COMM

Device Common.

11

VSET

Setpoint Input for Operation in Controller Mode. To operate in RSSI mode short VSET to VOUT.

12

VOUT

Logarithmic/Error Output.

14

CLPF

Loop Filter Capacitor Pin. In measurement mode, this capacitor pin sets the pulse response time and video bandwidth. In controller

mode, the capacitance on this node sets the response time of the error amplifier/integrator.

EPAD

Exposed Pad. The exposed pad is internally connected to COMM; solder to a low impedance ground plane.
