Package information

M24C64-W M24C64-R M24C64-F M24C64-DF

40/54

DS6638 Rev 36

9.5

PDIP8 package information

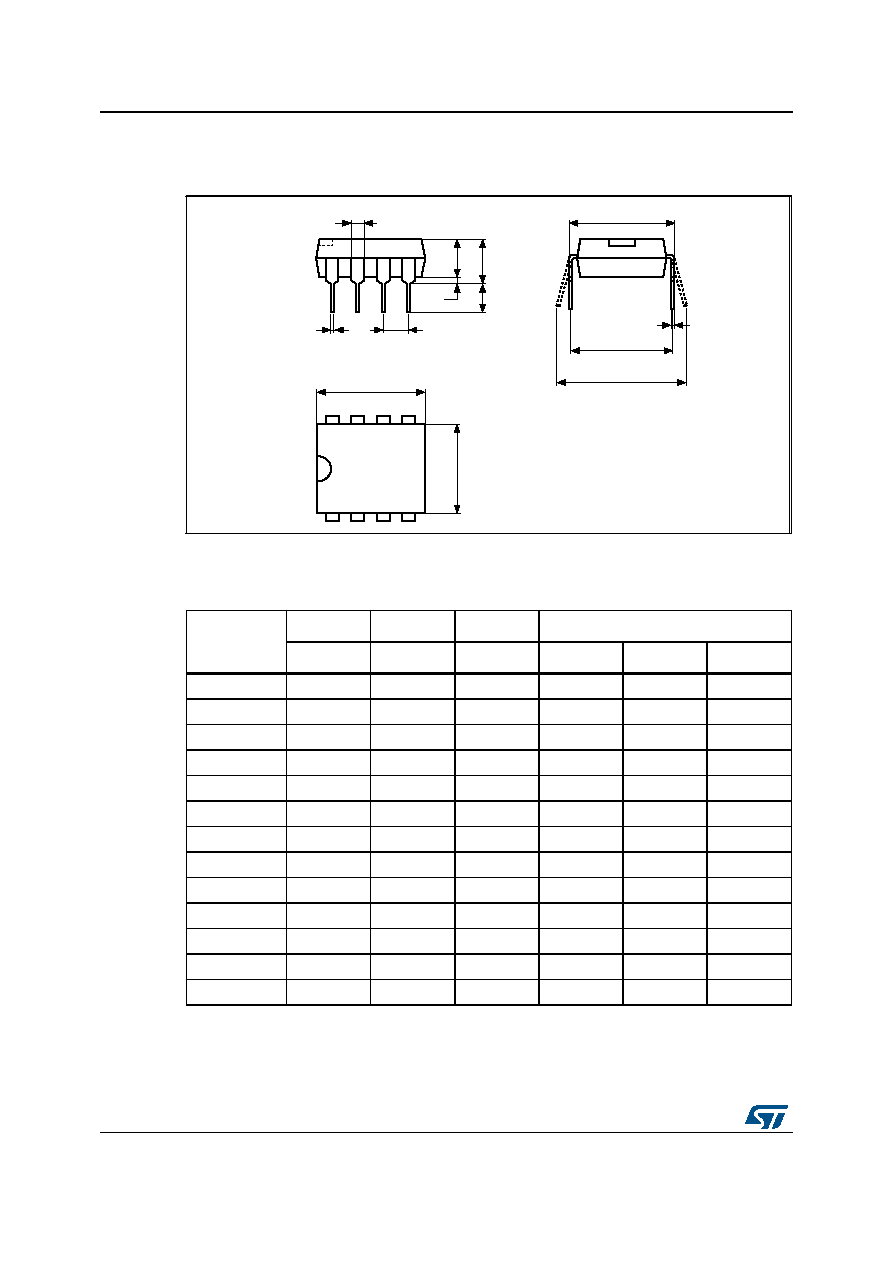

Figure 24. PDIP8 – 8-pin plastic DIP, 0.25 mm lead frame, package outline

1. Drawing is not to scale.

2. Not recommended for new designs.

Table 25. PDIP8 – 8-pin plastic DIP, 0.25 mm lead frame, package mechanical data

Symbol

millimeters

inches(1)

1. Values in inches are converted from mm and rounded to four decimal digits.

Min.

Typ.

Max.

Min.

Typ.

Max.

5.33

0.2098

0.38

0.0150

2.92

3.30

4.95

0.1150

0.1299

0.1949

0.36

0.46

0.56

0.0142

0.0181

0.0220

1.14

1.52

1.78

0.0449

0.0598

0.0701

0.20

0.25

0.36

0.0079

0.0098

0.0142

9.02

9.27

10.16

0.3551

0.3650

0.4000

7.62

7.87

8.26

0.3000

0.3098

0.3252

6.10

6.35

7.11

0.2402

0.2500

0.2799

2.54

0.1000

7.62

0.3000

10.92

0.4299

2.92

3.30

3.81

0.1150

0.1299

0.1500
