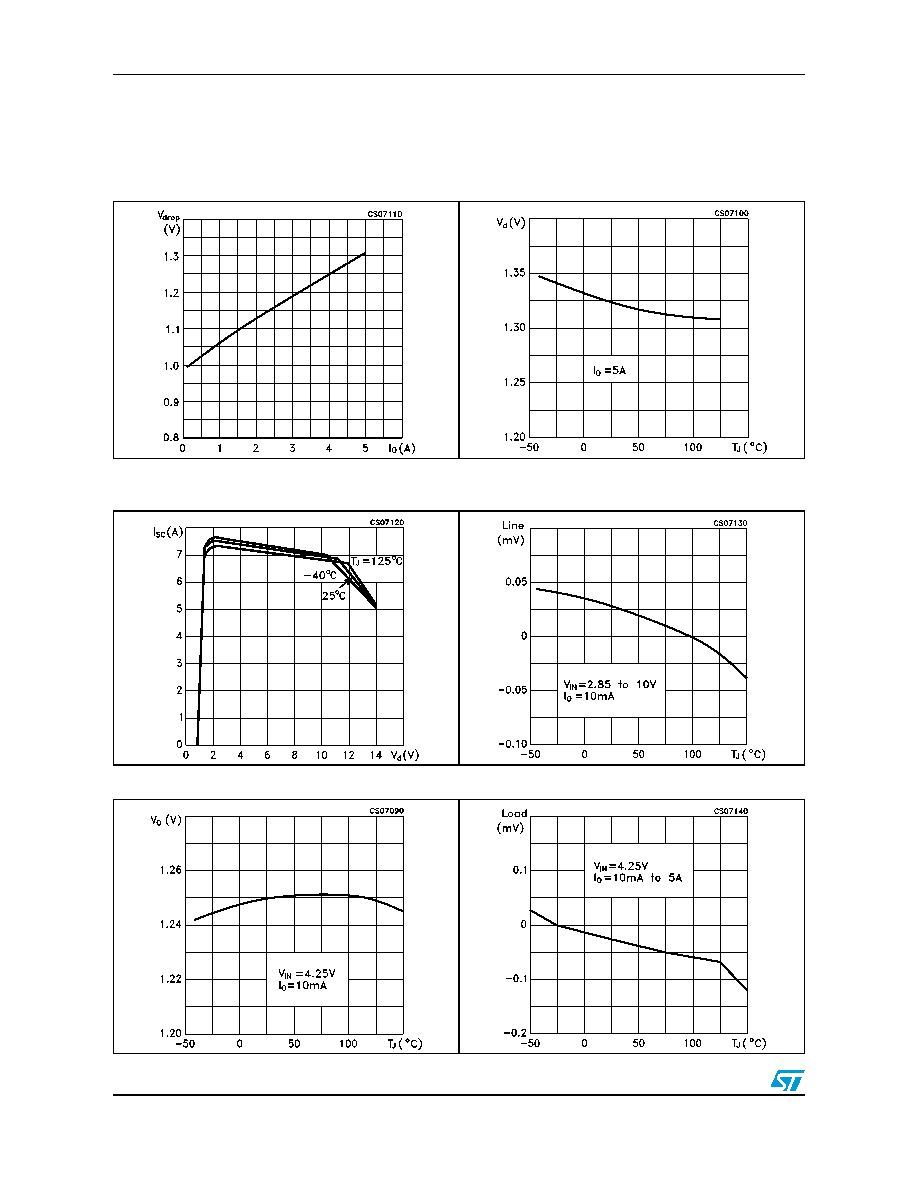

Typical application
KD1084 series
12/22
5
Typical application
Unless otherwise specified TJ = 25°C, CI = CO = 10µF (tant.)
Figure 3.
Dropout voltage vs output current
Figure 4.
Dropout voltage vs temperature
Figure 5.
Short circuit current vs dropout
voltage
Figure 6.
Line regulation vs temperature
Figure 7.
Output voltage vs temperature
Figure 8.
Load regulation vs temperature
