TECHNICAL INFORMATION

CHASSIS DATA

DIMENSIONS

COLOUR

WEIGHT

250 x 52 x 191 mm (W x H x D)

black

~ 1 kg

SUPPORTED MOTHERBOARDS

D3433-S

D3434-S

D3633-S

D3634-S

Processors up to 35W TDP

ENVIRONMENTAL CONDITIONS

OPERATING TEMPERATURE

HUMIDITY

0 °C – 45 °C*

5 % - 85 % relative humidity (non-condensing)

CHASSIS FAN SPECIFICATION

MTBF

OPERATING TEMPERATURE

70.000 hours @ 40 °C

-10 °C – 70 °C

PWM (4 pin), 40 x 40 x 10mm

1750 – 5.500 rpm (nominal)/

900 - 5.000 rpm (nominal, from chassis revision 03)

Two ball bearing

RECOMMENDED

COOLING SOLUTIONS

Kontron

EKL

HSM Zamecki

SilverStone

F5000-C011

21910021016

HSM# 104101

SST-NT07-115X

REQUIREMENTS FOR

AC ADAPTER

DC OUTPUT

DC OUTPUT PLUG

OPTIONAL

12 V +/-5 %

5,5 x 2,5 x 12 mm

Lockable DC Output Plug (optional)

Important Note:

Compliance with IEC 62368-1 according clause 6.2.2. to power source

category PS2 (“Limited Power Source”) required!

LOCKABLE DC INPUT JACK

MODEL ONBOARD

DC INPUT POWER

Switchcraft L712RA or compatible

12 V +/-5 % max. 60 W

APPROVALS & CERTIFICATIONS

EMC

CE Class B, Industrial Immunity (EN 61000-6-2), FCC Class B (verified)

PACKAGE CONTENT

Chassis bottom/top incl. front bezel; I/O with integrated EMI gasket

DC input connector with EMC filter and internal cabling

HDD carrier incl. 4 pin PWM fan

Riser card holder incl. power button / power LED and intrusion switch

HDD SATA cable for one drive

SATA power cable

Wall mount metal brackets

Motherboard mounting screws

Chassis desk stand (horizontal/vertical, removable)

CHASSIS FEATURES

THEFT PROTECTION

MOUNTING OPTIONS

Kensington lock support

Mechanical lock for DC-In connector

Intrusion Support

2.5” Drive

WLAN antenna via (RP-)SMA connector

PCIe riser (PCIe x4, low profile)

Additional serial port

*Chassis ambient temperature

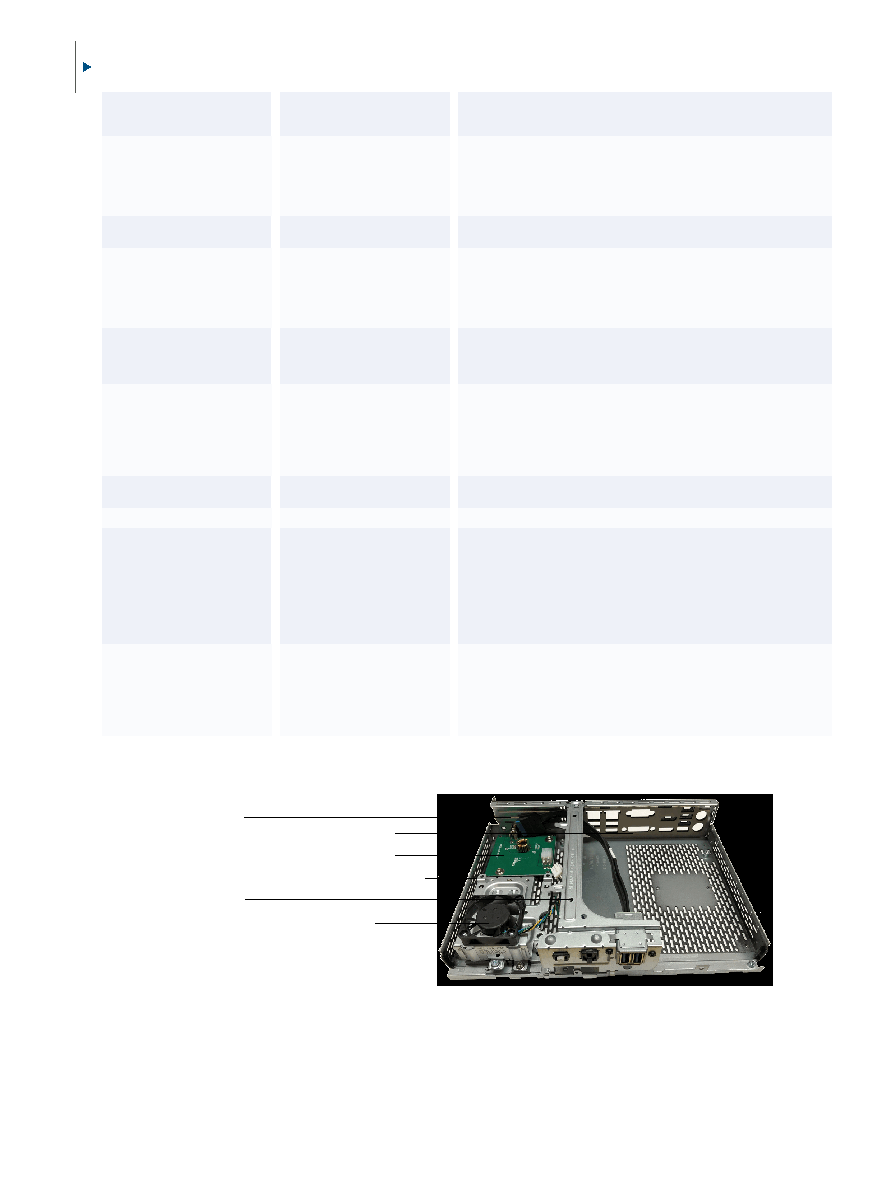

Integrated HDD /

system fan

Aperture for additional serial port

and WLAN (RP-) SMA connector

(Ø 7.2 mm)

Mounting space for 2.5” Drive

or internal 12V PSU module

Integrated EMI gasket

Riser card holder with integrated

power button (illuminated), chassis

intrusion switch and dual front

USB 3.1 gen1 connectors

DC-In Filter Board
