UG-866

EV-RADAR-MMIC2 User Guide

Rev. B | Page 8 of 28

ADF5901 CONTROLS

The ADF5901 Controls tab controls the ADF5901 device

settings (see Figure 4).

Use the RF Settings pane to control the output frequency. Type

the desired output frequency, in MHz, in the VCO Frequency

field.

To the right of the RF Settings pane, general options are

available for the registers of the ADF5901, including calibration

control and register readback.

When the device initially powers up, click Initialize ADF5901 to

perform the initialization sequence as described in the ADF5901

data sheet.

Following the initialization sequence, the device powers up and

all the ADF5901 blocks calibrate.

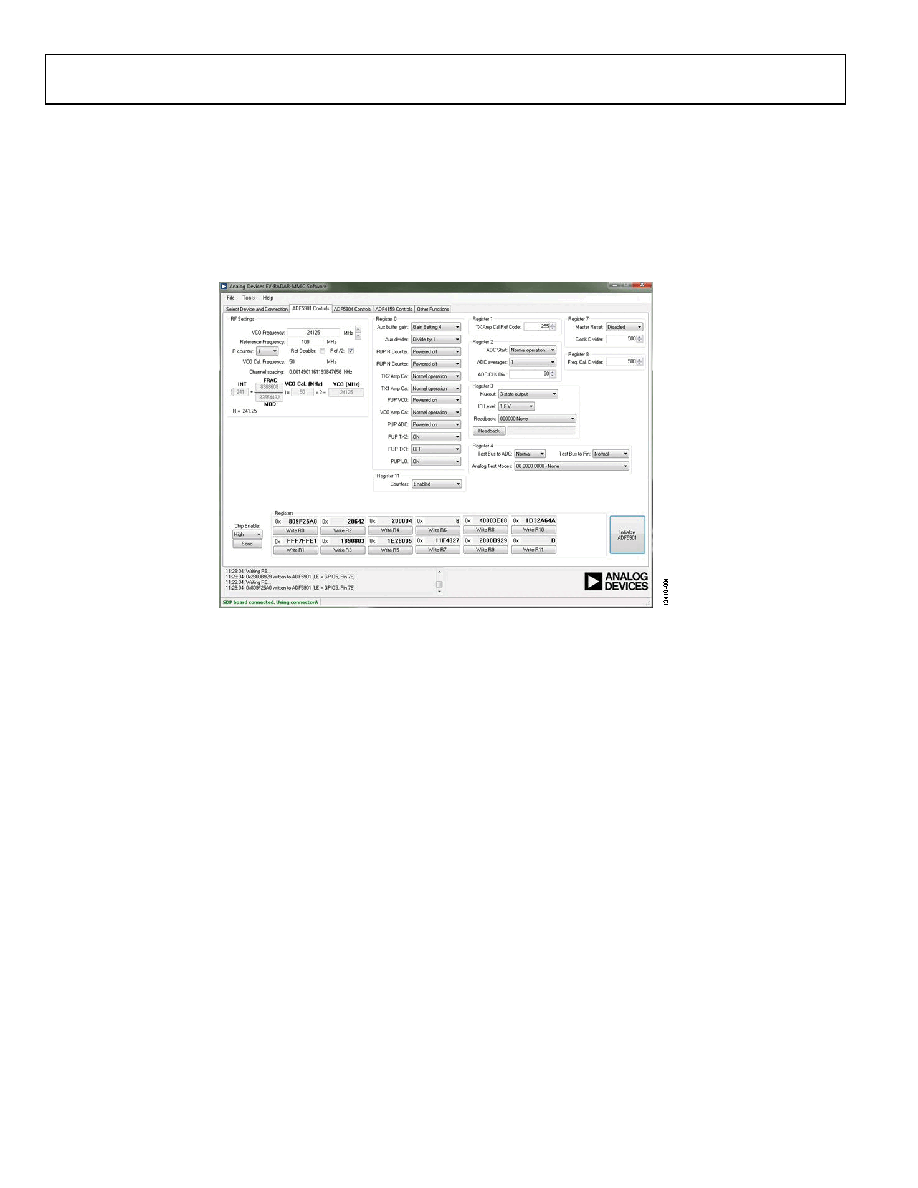

Figure 4. ADF5901 Controls
