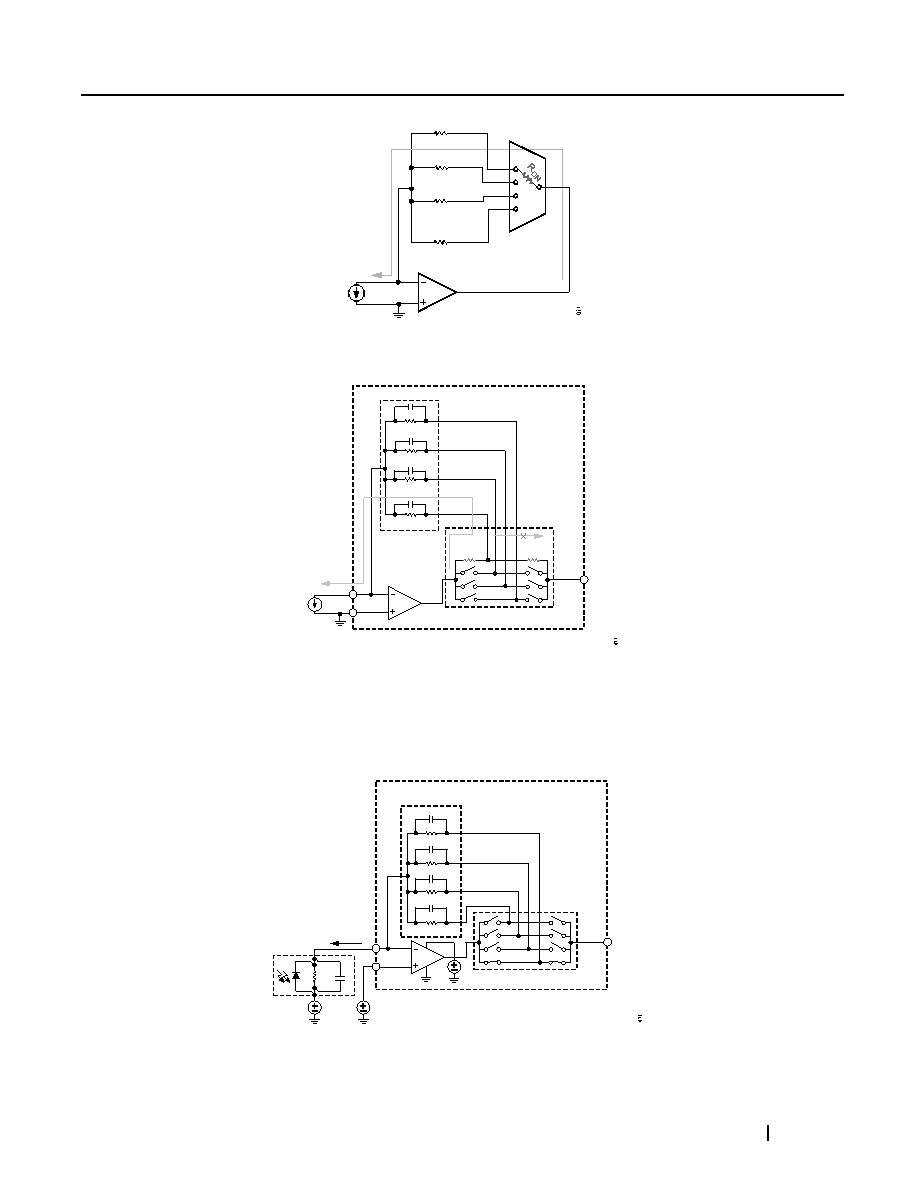

32 / 47 page  Data Sheet ADA4352-2 analog.com Rev 0 32 of 47 Figure 71. Typical Gain Transimpedance Amplifier with Error due to RON Figure 72. Switched Gain Transimpedance Amplifier with Kelvin Switching Maximum Linear Input Current Range Most photodiode PGTIA applications operate in a single supply configuration (see Figure 73). Even though ADA4352- 2 input pins can swing all the way to ground, the output stage requires at least 0.1 V from either of the supplies to maintain specified linearity. Figure 73. Maximum Linear Output Voltage RF2 iin IIN RF3 VOUT = IIN × (RF0 + RON) RF0 RF1 ADA4352-2 GAIN RESISTOR NETWORK KELVIN SWITCH NETWORK OUT ½ RF2 = 40.2kΩ RF3 = 450kΩ RF0 = 315Ω RF1 = 3.5kΩ IIN SWITCH RON SWITCH RON 1NO CURRENT THROUGH RIGHT SIDE SWITCH 1 ADA4352-2 GAIN RESISTOR NETWORK KELVIN SWITCH NETWORK OUT –VB IIN VCM ½ PD 5V VOUT = VCM + IIN × RF0 RF2 = 40.2kΩ RF3 = 450kΩ RF0 = 315Ω RF1 = 3.5kΩ |
|
