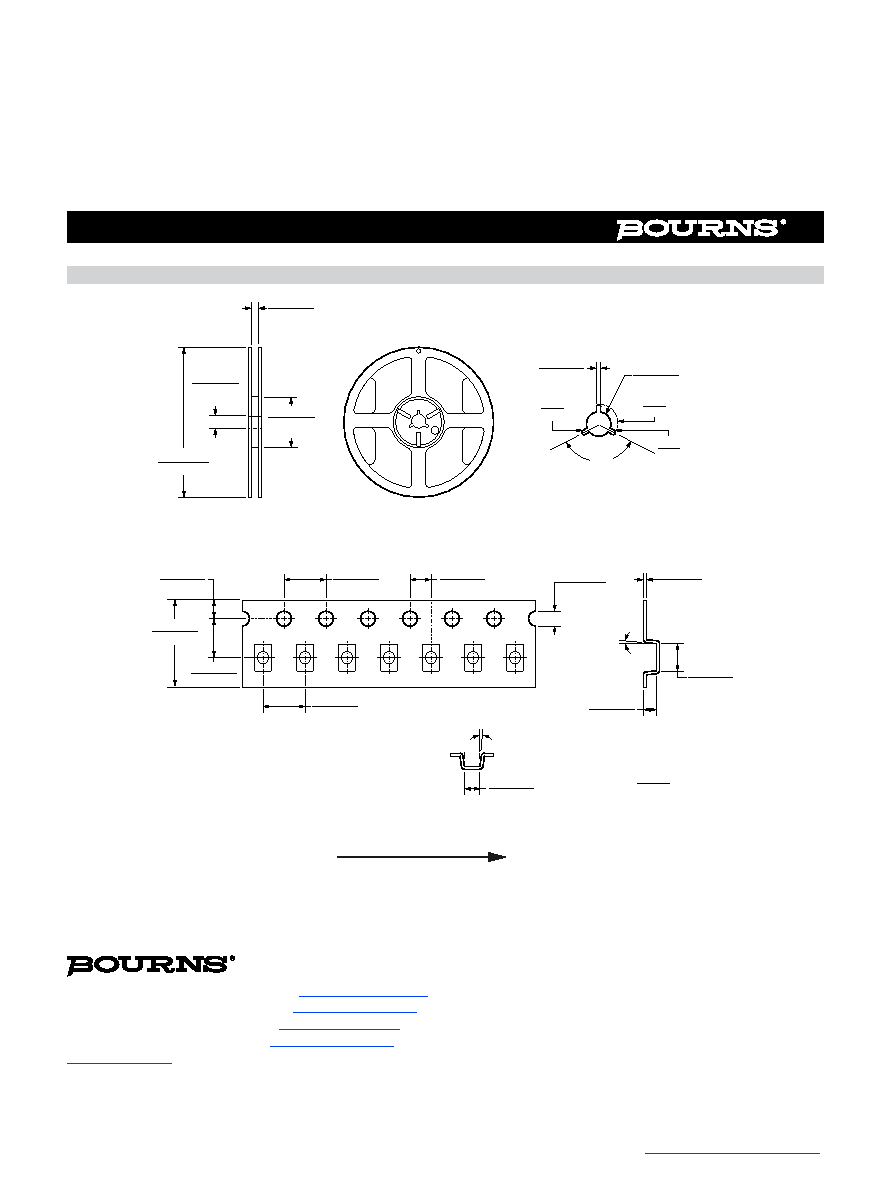

CWF2012A Series – 0805 Chip Inductors

Packaging Specifications

8.00 ± 0.10

(.315 ± .004)

4.00 ± 0.10

(.157 ± .004)

1.75 ± 0.10

(.069 ± .004)

3.50 ± 0.05

(.138 ± .002)

1.60 ± 0.10

(.063 ± .004)

2.50 ± 0.10

(.098 ± .004)

5 °

7.5 °

0.22 ± 0.05

(.009 ± .002)

1.25 ± 0.10

(.049 ± .004)

2.00 ± 0.05

(.079 ± .002)

1.50 ± 0.10

(.059 ± .004)

DIA.

4.00 ± 0.10

(.157 ± .004)

60 ± 2

(2.362 ± .079)

DIA.

13.5 ± 0.5

(.531 ± .020)

DIA.

178 ± 2

(7.008 ± .079)

2 ± 0.5

(.079 ± .020)

13.5 ± 0.5

(.531 ± .020)

9.0 ± 0.5

(.354 ± .020)

7 ˝ x 8 mm

10.5

(.413)

R

0.5

(.020)

R

1.9

(.075) R

120 °

USER DIRECTION OF FEED

QTY: 2,000 PCS. PER REEL

DIMENSIONS:

MM

(INCHES)

REV. 03/25
