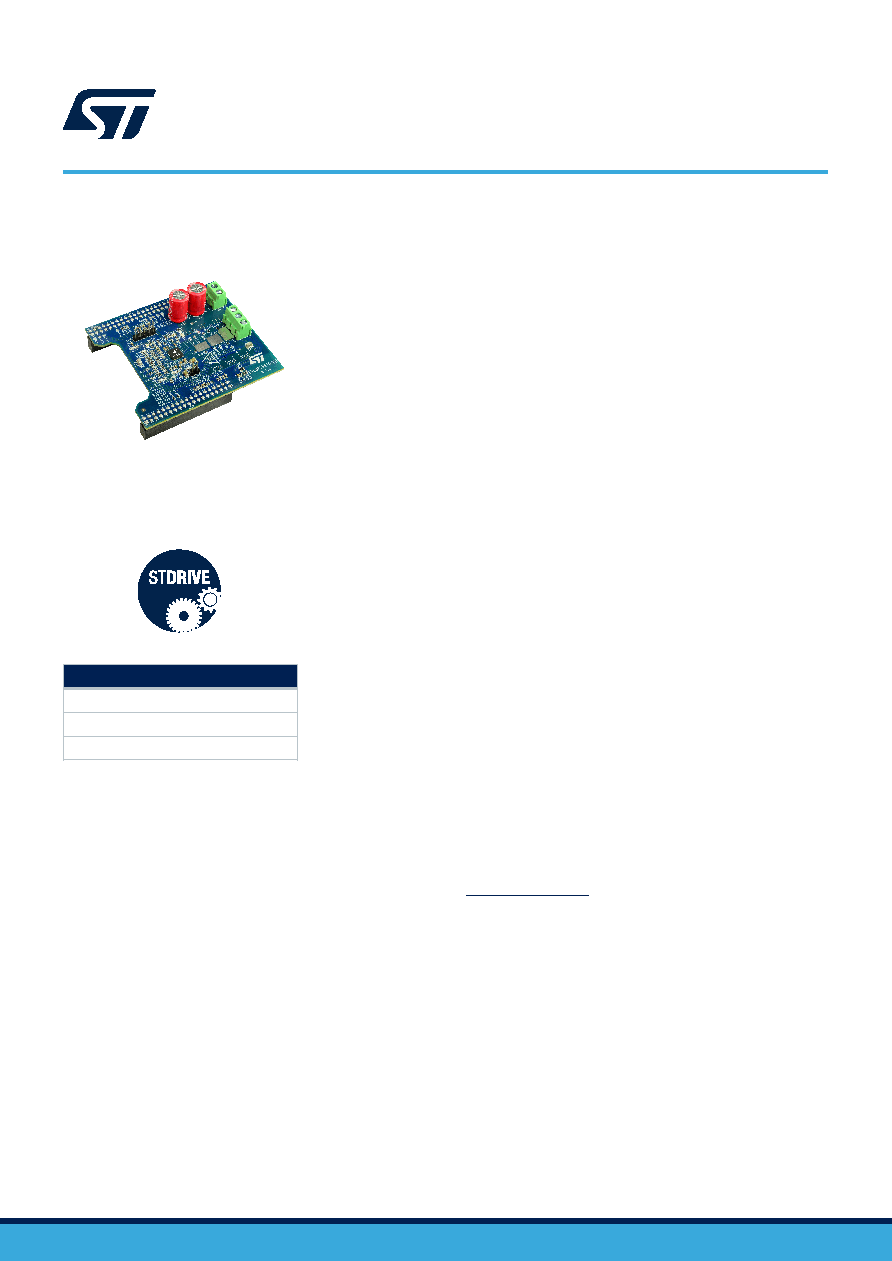

Features

•

Operating voltage from 6 V to 50 V

•

Output current up to 12 Arms: power stage based on STL220N6F7 60 V,

1.2 mΩ N-channel power MOSFETs

•

Three-shunt configuration

•

STDRIVE102BH triple half-bridge gate driver:

–

Programmable gate current (up to 1 A source / 2 A sink)

–

Charge pump for 100 % duty cycle operation

–

Three embedded operational amplifiers and three comparators for

current sensing and overcurrent detection

–

Full set of protections: UVLO, thermal shutdown, VDS monitoring

•

Input connector for Hall-effect based sensors and encoder

•

Motor BEMF sensing network

•

Bus voltage sensing

•

NTC temperature sensing

•

Morpho connectors compatible with a wide range of STM32 NUCLEO boards

Applications

•

Battery supplied power tools

•

Portable vacuum cleaners

•

E-bikes

•

Industrial automation

•

Robotics

•

Pumps and fans

Description

The EVLDRIVE102BH evaluation board is a three-phase inverter based on the

STL220N6F7 power MOSFETs. This evaluation board allows a full evaluation of the

features of the STDRIVE102BH, a triple half-bridge gate driver.

The power stage uses a three-shunt topology: the current sensing and the

overcurrent protections are implemented using the three operational amplifiers and

the three comparators embedded in the STDRIVE102BH.

The embedded protections of the STDRIVE102BH, such as the UVLO on the driving

voltage and the VDS monitoring for each power MOSFET, ensure a safe driving

operation of the power stage.

The EVLDRIVE102BH evaluation board is thermally protected by exploiting both the

hardware thermal shutdown protection embedded in the STDRIVE102BH and also

an onboard NTC sensor placed close to the power stage, for a firmware thermal

protection.

The two diagnostic pins of the STDRIVE102BH, the nFAULT pin for the protection

events and the FLAG pin for the drivers’ supply warning, are both connected to the

control board and are also visible through two different LED indicators.

Product status link

EVLDRIVE102BH

STDRIVE102BH

STL220N6F7

STDRIVE102BH evaluation board for three-phase brushless motors

EVLDRIVE102BH

Data brief

DB5414 - Rev 1 - March 2025
