Data Sheet

ADL8143-CSL

8GHz to 14GHz, Low Noise Amplifier

Rev. 0

DOCUMENT FEEDBACK

TECHNICAL SUPPORT

Information furnished by Analog Devices is believed to be accurate and reliable "as is". However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to

change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective owners.

FEATURES

►

Single positive supply: 1.5V and IDQ of 35mA nominal

►

RBIAS drain current adjustment pin

►

Gain: 28.5dB from 8GHz to 10GHz

►

Noise figure: 1dB from 8GHz to 10GHz

►

Extended operating temperature range: −55°C to +125°C

►

Internally matched and AC-coupled

►

RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP

COMMERCIAL SPACE FEATURES

►

Support aerospace applications

►

Wafer diffusion lot traceability

►

Radiation monitors

►

Total ionizing dose (TID)

►

Outgassing characterization

APPLICATIONS

►

Low Earth orbit (LEO) space payloads

►

Satellite communications

GENERAL DESCRIPTION

The ADL8143-CSL is a low noise amplifier (LNA) that operates

from 8GHz to 14GHz. The typical gain, noise figure, output power

for 1dB compression (OP1dB), and output third-order intercept

(OIP3) are 28.5dB, 1dB, 7.5dBm, and 19.5dBm, respectively, from

8GHz to 10GHz. The nominal quiescent current (IDQ), which can be

adjusted, is 35mA from a 1.5V supply voltage (VDD). The ADL8143-

CSL also features inputs and outputs that are AC-coupled and

internally matched to 50Ω.

The ADL8143-CSL is housed in an RoHS-compliant, 2mm × 2mm,

8-lead lead frame chip scale package [LFCSP] and is specified for

operation from −55°C to +125°C.

Additional application and technical information can be found in the

Commercial Space Products Program brochure and the ADL8143

data sheet.

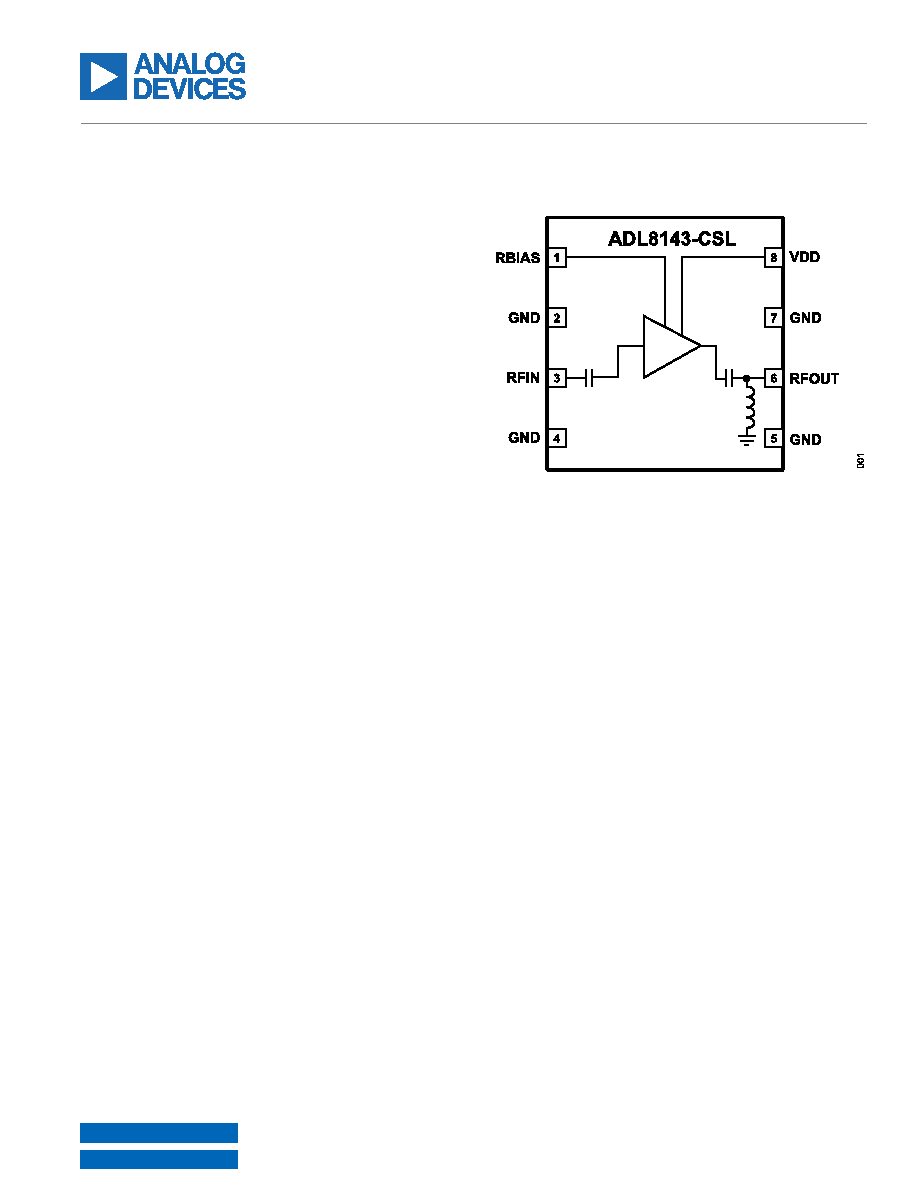

FUNCTIONAL BLOCK DIAGRAM

Figure 1. Functional Block Diagram
