ISL854102
FN8870 Rev.1.00
Page 11 of 21
Mar 15, 2019

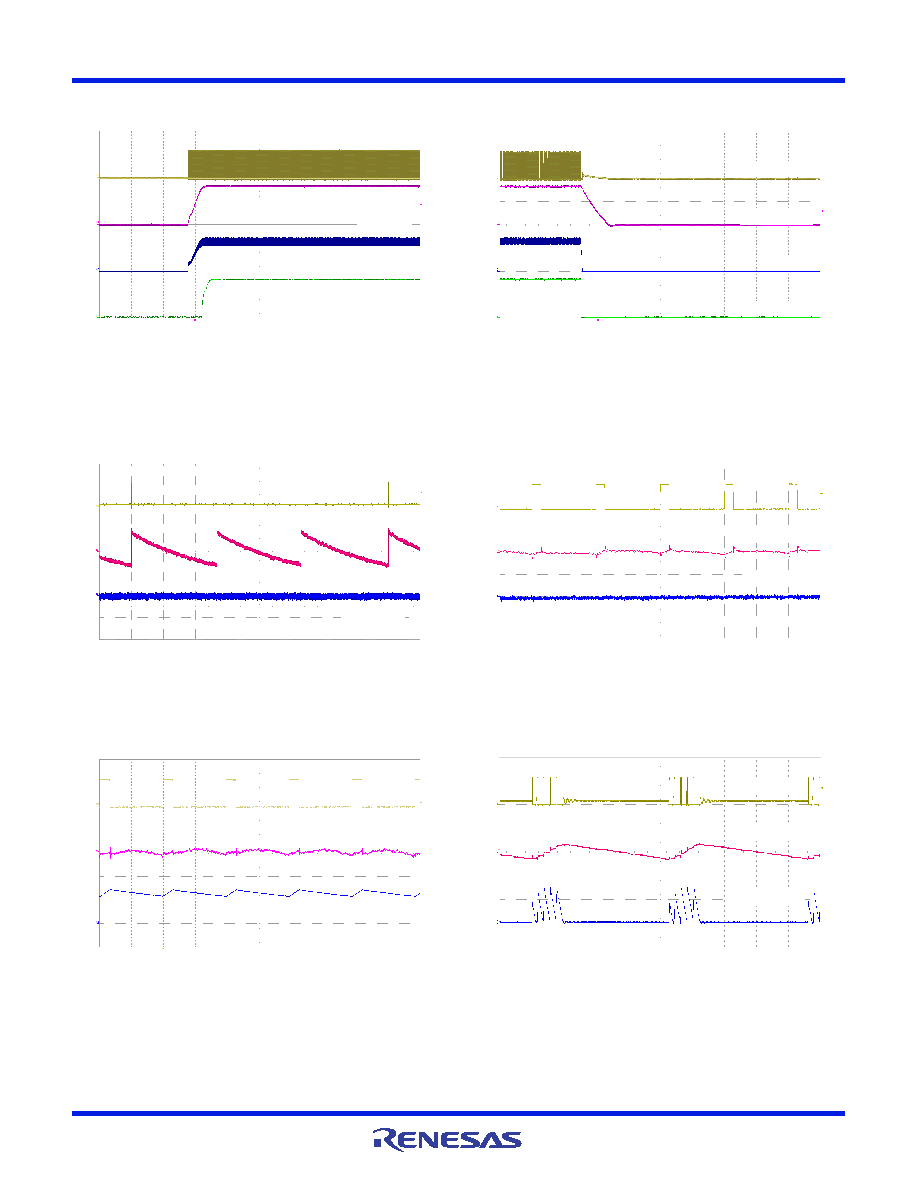

FIGURE 18. START-UP AT 1.2A
FIGURE 19. SHUTDOWN AT 1.2A
FIGURE 20. STEADY STATE AT NO LOAD, PFM
FIGURE 21. STEADY STATE AT NO LOAD, PWM
FIGURE 22. STEADY STATE AT 1.2A LOAD
FIGURE 23. LIGHT LOAD OPERATION AT 20mA, PFM
Measurements f
SW = 500kHz, VIN = 24V, VOUT = 3.3V, TA = +25°C (Continued)
LX 20V/DIV
VOUT 2V/DIV
IL 1A/DIV
PG 2V/DIV
5ms/DIV
LX 20V/DIV
VOUT 2V/DIV
IL 1A/DIV
PG 2V/DIV
200µs/DIV
LX 20V/DIV
VOUT 20mV/DIV
IL 20mA/DIV
10ms/DIV
LX 20V/DIV
VOUT 20mV/DIV
IL 20mA/DIV
1µs/DIV
LX 20V/DIV
IL 1A/DIV
1µs/DIV
VOUT 10mV/DIV
LX 20V/DIV
IL 200mA/DIV
10µs/DIV
VOUT 50mV/DIV
