5

Package

The standard package of the ZSC31150 is an SSOP14 green package (5.3mm body width) with a lead pitch

of 0.65 mm.

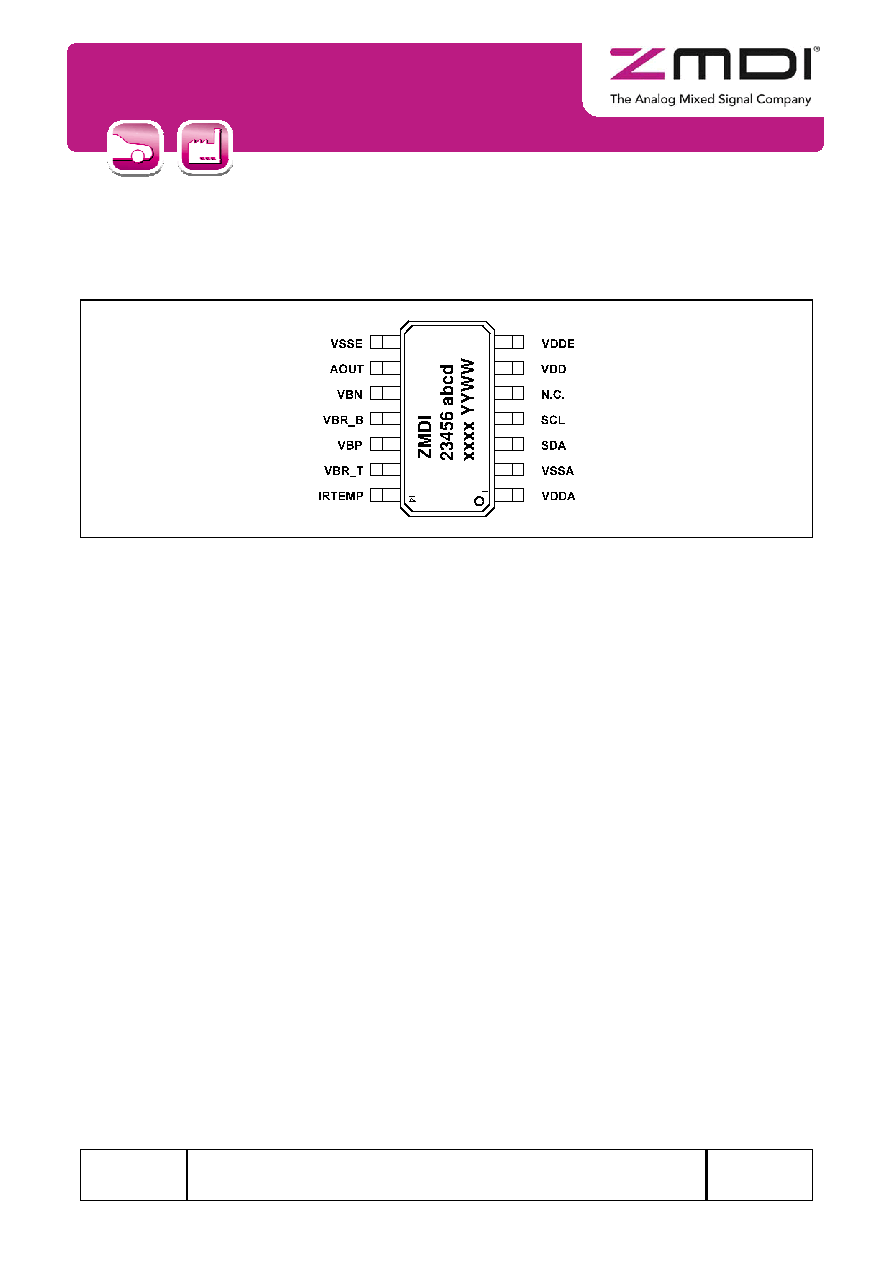

Figure 5.1:

ZSC31150 Pin Diagram

6

Quality and Reliability

The ZSC31150 is qualified according to the AEC-Q100 standard, operating temperature grade 0. A fit rate

<5fit (temp=55°C, S=60%) is guaranteed. A typical fit rate of the C7D-technologie, which is used for

ZSC31150, is 2.5fit.

7

Customization

For high-volume applications, which require an up- or downgraded functionality compared to the ZSC31150,

ZMDI can customize the circuit design by adding or removing certain functional blocks.

For it ZMDI has a considerable library of sensor-dedicated circuitry blocks.

Thus ZMDI can provide a custom solution quickly. Please contact ZMDI for further information.
