PL133-37

Low-Power, 1.62V to 3.63V, 1MHz to 150MHz, 1:3 Fanout Buffer IC

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1(408) 944-0800 • fax +1(408) 474-1000 • www.micrel.com Rev 02/24/15 Page 1

FEATURES

•

3 LVCMOS Outputs

•

12mA Output Drive Strength

•

Input/Output Frequency:

o

Reference Clock: 1MHz to 150MHz

•

Supports LVCMOS or Sine Wave Input Clock

•

Very Low Jitter and Phase Noise

•

Low Current Consumption

•

Single 1.8V, 2.5V, or 3.3V, ±10% Power Supply

•

Operating Temperature Range

o

0°C to 70°C (Commercial)

o

-40°C to 85°C (Industrial)

•

Available in SOT23-6L GREEN/RoHS Compliant

Packages

DESCRIPTION

The PL133-37 is an advanced fanout buffer design

for high performance, low-power, small form-factor

applications. The PL133-37 accepts a reference

clock input of 1MHz to 150MHz and produces three

outputs of the same frequency. Reference clock in-

puts may be LVCMOS or sine-wave signals (the in-

puts are internally AC-coupled). Offered in a small

3mm x 3mm SOT23, the PL133-37 offers the best

phase noise and jitter performance and lowest power

consumption of any comparable IC.

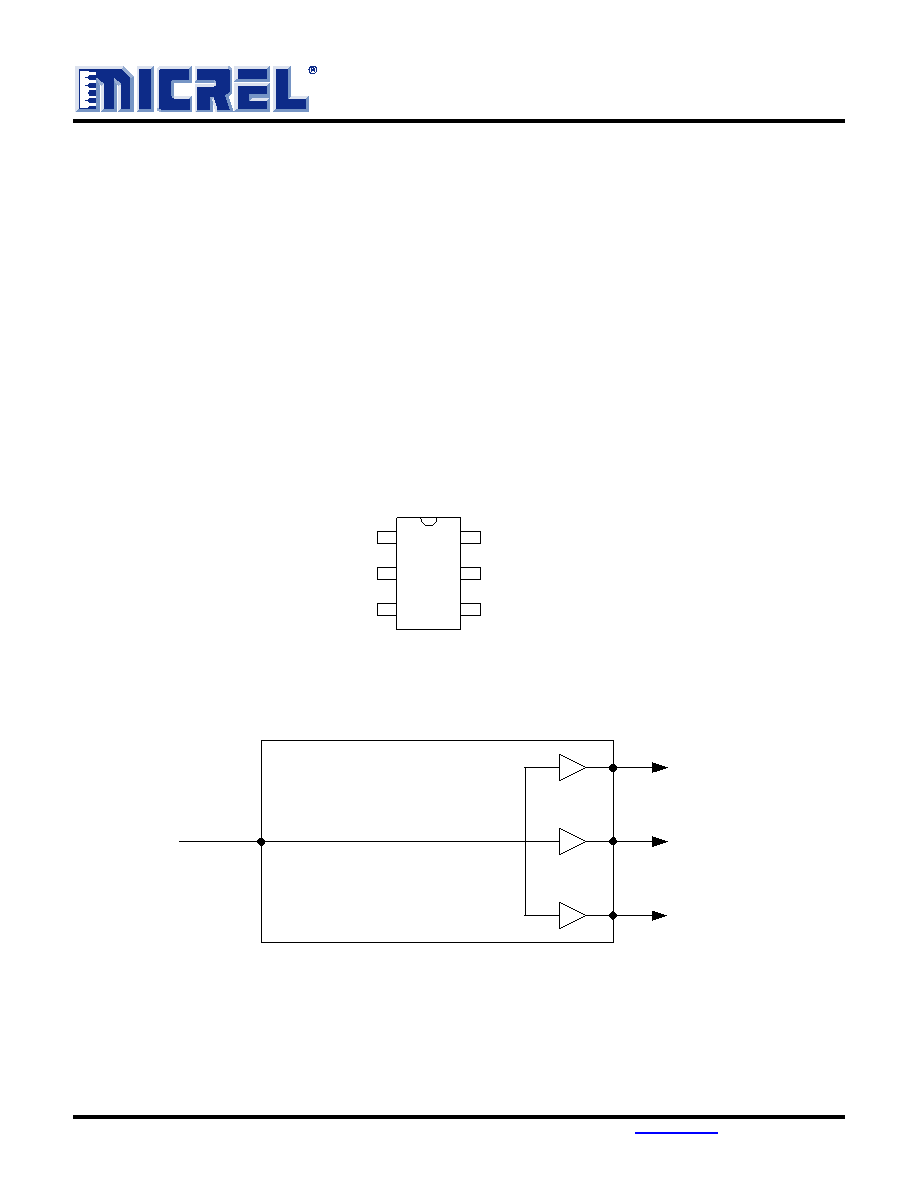

PACKAGE PIN CONFIGURATION

BLOCK DIAGRAM

FIN

CLK0

CLK1

CLK2

1

2

3

4

5

6

CLK1

GND

FIN

CLK2

CLK0

VDD

SOT23-6L
