Data Sheet
ADAR4002
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 16 of 66

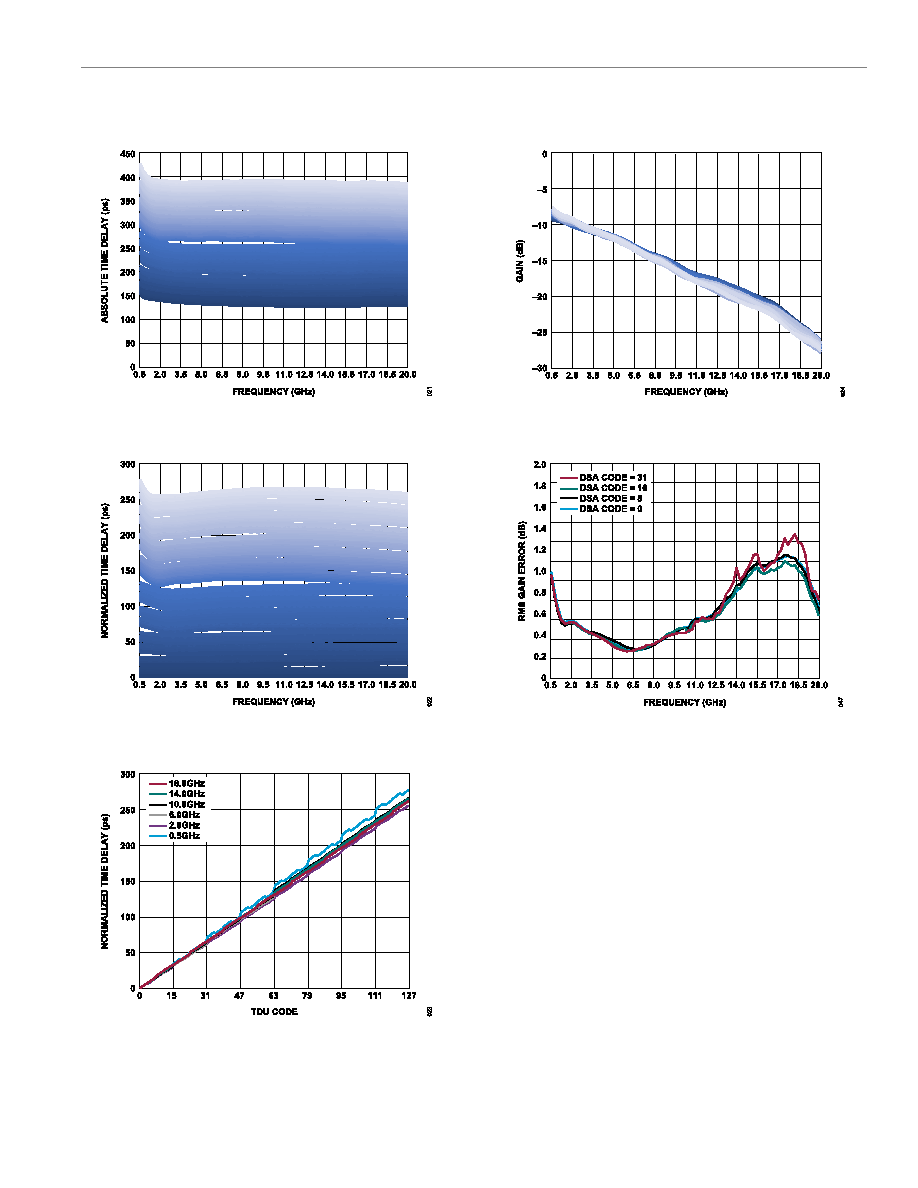

TIME DELAY SWEEP, TIME DELAY RANGE 1
Figure 15. Absolute Time Delay vs. Frequency over TDU Code 0 to TDU Code
127, Darkest Blue Is TDU = 0 and Lightest Blue is TDU = 127
Figure 16. Normalized Time Delay vs. Frequency over TDU Code 0 to TDU
Code 127, Darkest Blue Is TDU = 0 and Lightest Blue is TDU = 127
Figure 17. Normalized Time Delay vs. TDU Code over Frequencies 0.5 GHz,
2.0 GHz, 6.0 GHz, 10.0 GHz, 14.0 GHz, and 18.0 GHz
Figure 18. Gain vs. Frequency over TDU Code 0 to TDU Code 127, Darkest
Blue Is TDU = 0 and Lightest Blue is TDU = 127
Figure 19. RMS Gain Variation vs. Frequency, Computed over TDU Code 0 to
TDU Code 127 at DSA Code 0, DSA Code 8, DSA Code 16, and DSA Code 31
