SDR series
Datasheet
●

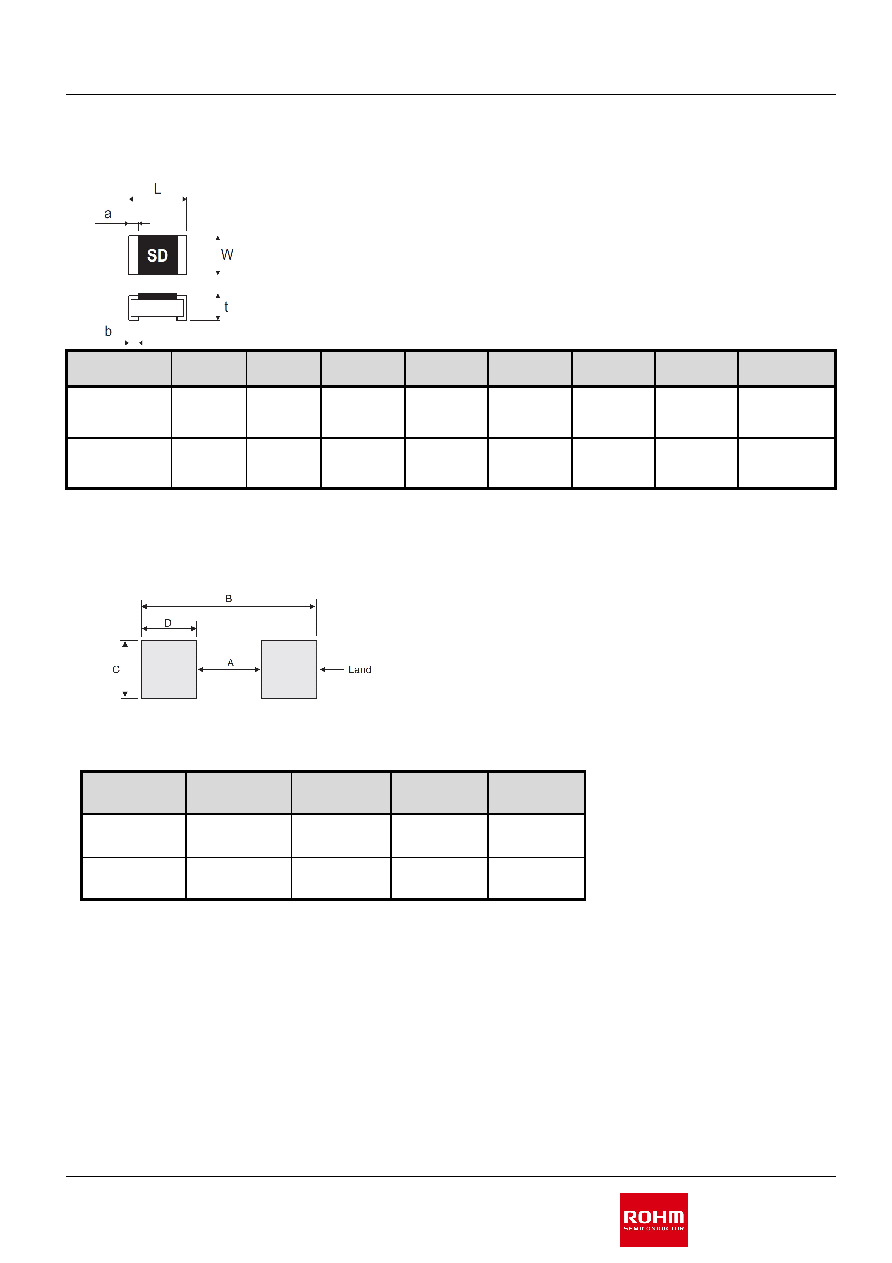

Chip resistor dimensions and markings
■SDR03/10
(Unit:mm)
Part No.
(mm)
(inch)
L
W
t
a
b
Marking
existence
SDR03
1608
0603
1.60±0.10
0.80±0.10
0.45±0.10
0.25±0.10
0.25±0.10
SD
SDR10
2012
0805
2.00±0.10
1.25±0.10
0.55±0.10
0.25±0.10
0.40±0.20
SD
●
Land pattern example
(Unit:mm)
Dimensions
A
B
C
D
Part No.
SDR03
1.0
2.0
0.8
0.5
SDR10
1.2
2.6
1.15
0.7
www.rohm.com
© 2020 ROHMCo., Ltd. All rights reserved.
2/4
2020.07 - Rev.C
