AD8605/AD8606/AD8608

Rev. H | Page 21 of 24

CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

COMPLIANT TO JEDEC STANDARDS MS-012-AA

0.25 (0.0098)

0.17 (0.0067)

1.27 (0.0500)

0.40 (0.0157)

0.50 (0.0196)

0.25 (0.0099)

45°

8°

0°

1.75 (0.0688)

1.35 (0.0532)

SEATING

PLANE

0.25 (0.0098)

0.10 (0.0040)

5.00 (0.1968)

4.80 (0.1890)

4.00 (0.1574)

3.80 (0.1497)

1.27 (0.0500)

BSC

6.20 (0.2441)

5.80 (0.2284)

0.51 (0.0201)

0.31 (0.0122)

COPLANARITY

0.10

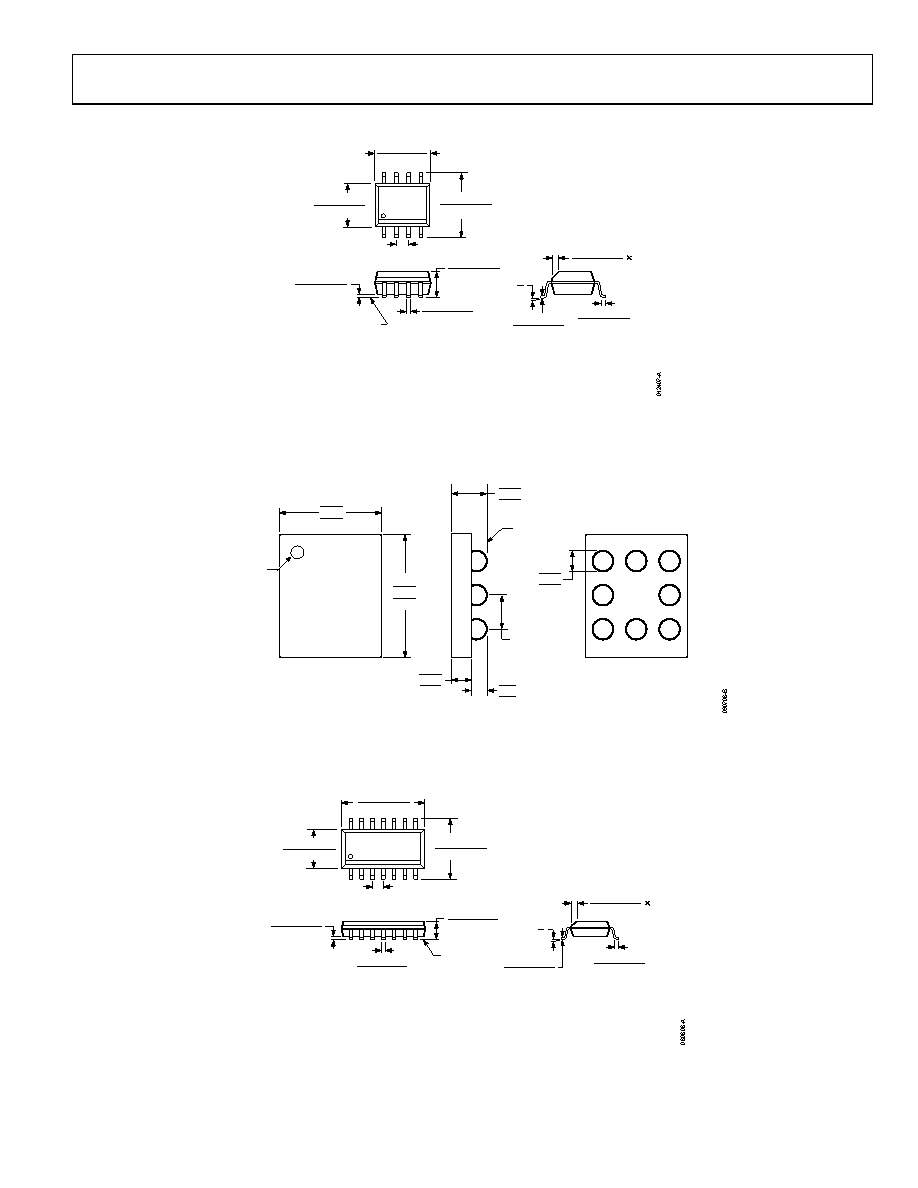

Figure 60. 8-Lead Standard Small Outline Package [SOIC_N]

Narrow Body (R-8)

Dimensions shown in millimeters and (inches)

SEATING

PLANE

0.50

BALL PITCH

1.480

1.430

1.380

1.825

1.775

1.725

0.27

0.24

0.21

0.380

0.355

0.330

0.340

0.320

0.300

0.675

0.595

0.515

BOTTOM VIEW

(BALL SIDE UP)

TOP VIEW

(BALL SIDE DOWN)

BALL 1

IDENTIFIER

Figure 61. 8-Ball Wafer Level Chip Scale Package [WLCSP]

(CB-8-1)

Dimensions shown in millimeters

CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

COMPLIANT TO JEDEC STANDARDS MS-012-AB

6.20 (0.2441)

5.80 (0.2283)

4.00 (0.1575)

3.80 (0.1496)

8.75 (0.3445)

8.55 (0.3366)

1.27 (0.0500)

BSC

SEATING

PLANE

0.25 (0.0098)

0.10 (0.0039)

0.51 (0.0201)

0.31 (0.0122)

1.75 (0.0689)

1.35 (0.0531)

0.50 (0.0197)

0.25 (0.0098)

1.27 (0.0500)

0.40 (0.0157)

0.25 (0.0098)

0.17 (0.0067)

COPLANARITY

0.10

8°

0°

45°

Figure 62. 14-Lead Standard Small Outline Package [SOIC_N]

Narrow Body (R-14)

Dimensions shown in millimeters and (inches)
