High Bandwidth, Bidirectional

65 V Difference Amplifier

AD8216

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibilityis assumedbyAnalogDevicesforitsuse,norforanyinfringements of patents or other

rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

www.analog.com

Fax: 781.461.3113

©2007 Analog Devices, Inc. All rights reserved.

FEATURES

±4000 V HBM ESD

Ideal for current shunt applications

High common-mode voltage range

−4 V to +65 V operating

−40 V to +80 V survival

3 MHz bandwidth

<100 ns output propagation delay

Gain: 3 V/V

Wide operating temperature range

Die: −40°C to +150°C

8-lead SOIC: −40°C to +125°C

Adjustable output offset

Available in 8-lead SOIC

Excellent ac and dc performance

10 μV/°C offset drift

10 ppm/°C gain drift

APPLICATIONS

High-side current sensing in

DC-to-dc converters

Motor controls

Transmission controls

Diesel-injection controls

Engine management

Suspension controls

Vehicle dynamic controls

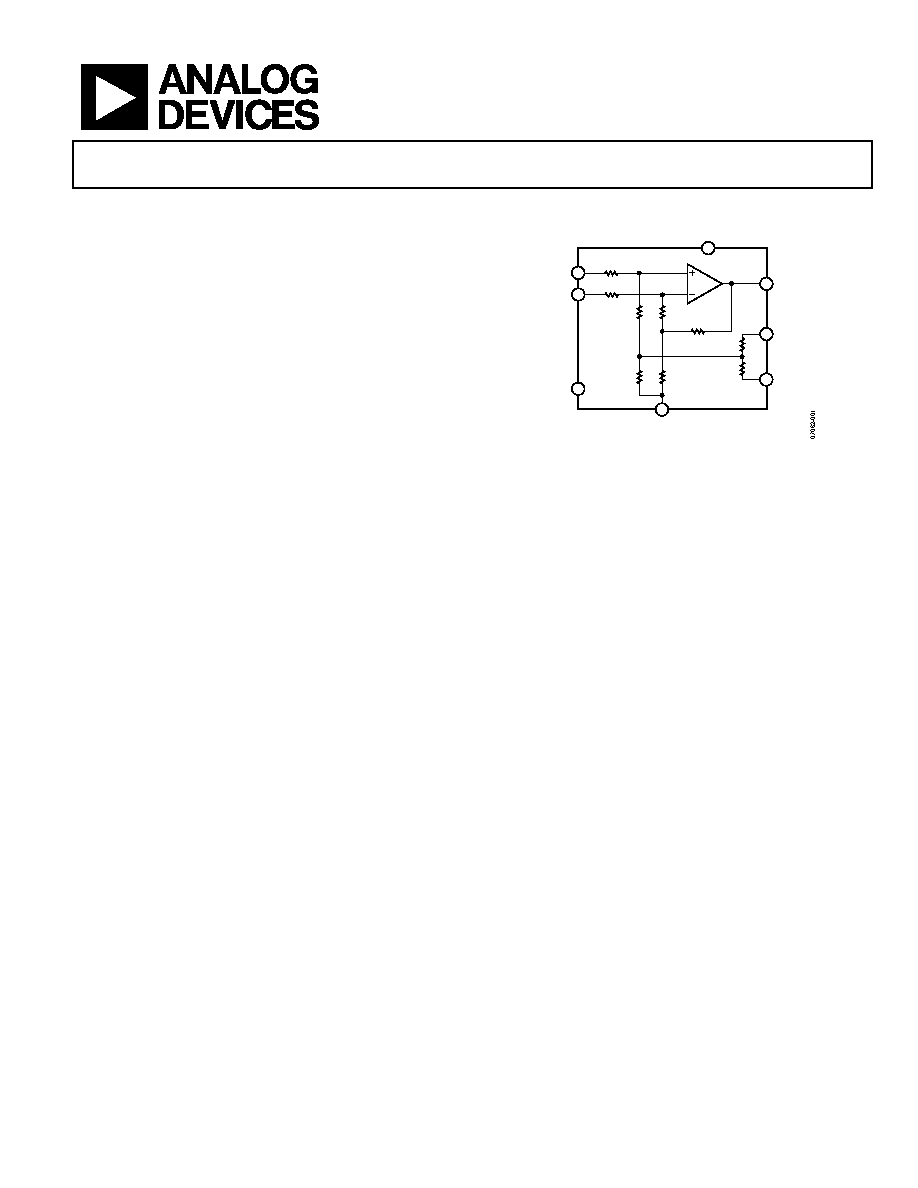

FUNCTIONAL BLOCK DIAGRAM

AD8216

8

1

4

2

3

7

5

6

+IN

–IN

NC

NC = NO CONNECT

GND

V+

OUT

Figure 1.

GENERAL DESCRIPTION

The AD8216 is a single-supply, difference amplifier ideal for

amplifying small differential voltages in the presence of large

common-mode voltages. The operating input common-mode

voltage range extends from −4 V to +65 V. The typical supply

voltage is 5 V. The AD8216 features a 3 MHz bandwidth,

allowing for the input-to-output propagation delay that is

always less than 150 ns. This feature is ideal for applications

monitoring rapidly increasing and decreasing load currents.

The AD8216 is offered in a SOIC package. The operating

temperature range is −40°C to +125°C.

Excellent ac and dc performance over temperature keep errors

in the measurement loop to a minimum. Offset and gain drift

are guaranteed to a maximum of 20 μV/°C and 15 ppm/°C,

respectively.

The output offset can be adjusted from 0.06 V to 4.9 V with a

output to be unipolar, starting near V+. Other offsets can be
